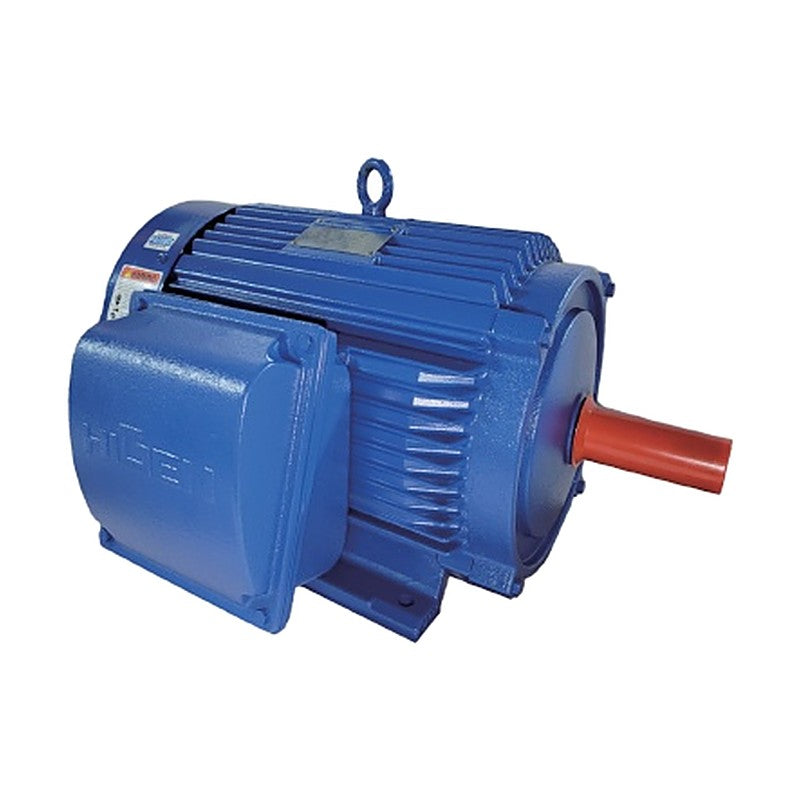

HIGEN RNM Ex e Increased Safety Explosion-Proof Motors (80M-280M)

HIGEN RNM Ex e Increased Safety Explosion-Proof Motors (80M-280M)

HIGEN RNM increased-safety (Ex e II T3) totally enclosed three-phase induction motors for Class 1 / Class 2 hazardous locations, frames 80M to 280S/M.

Key features

  • Increased-safety construction prevents sparks, arcs or hot spots in normal service, starting and locked-rotor conditions
  • Marking Ex e II T3, for Class 1 and Class 2 hazardous places
  • Meets minimum efficiency regulations of the Korean Energy Use Rationalization Act
  • Compact, lightweight and robust design with reliable insulation
  • Easy maintenance and inspection

Specifications

Protection type Increased safety Ex e
Marking Ex e II T3
Group / temp. class II / T3
Enclosure Totally enclosed (external fan)
Ambient temperature -20 to +40 °C
Hazardous area Class 1, Class 2 places
Poles 2 / 4 / 6
Output range 0.4-132 kW
Source HIGEN RNM Low Voltage Motor catalog, p. 18-19
Ex e 80M 2P 0.4kW Output: 0.4 kW | Poles: 2 | Shaft: Ø19j6
Ex e 80M 2P 0.75kW Output: 0.75 kW | Poles: 2 | Shaft: Ø19j6
Ex e 80M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Shaft: Ø19j6
Ex e 80M 4P 0.75kW Output: 0.75 kW | Poles: 4 | Shaft: Ø19j6
Ex e 80M 6P 0.4kW Output: 0.4 kW | Poles: 6 | Shaft: Ø19j6
Ex e 90L 2P 1.5kW Output: 1.5 kW | Poles: 2 | Shaft: Ø24j6
Ex e 90L 2P 2.2kW Output: 2.2 kW | Poles: 2 | Shaft: Ø24j6
Ex e 90L 4P 1.5kW Output: 1.5 kW | Poles: 4 | Shaft: Ø24j6
Ex e 90L 6P 0.75kW Output: 0.75 kW | Poles: 6 | Shaft: Ø24j6
Ex e 100L 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28j6
Ex e 100L 6P 1.5kW Output: 1.5 kW | Poles: 6 | Shaft: Ø28j6
Ex e 112S 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28j6
Ex e 112M 2P 2.2kW Output: 2.2 kW | Poles: 2 | Shaft: Ø28j6
Ex e 112M 2P 3.7kW Output: 3.7 kW | Poles: 2 | Shaft: Ø28j6
Ex e 112M 4P 3.7kW Output: 3.7 kW | Poles: 4 | Shaft: Ø28j6
Ex e 112M 6P 1.5kW Output: 1.5 kW | Poles: 6 | Shaft: Ø28j6
Ex e 112M 6P 2.2kW Output: 2.2 kW | Poles: 6 | Shaft: Ø28j6
Ex e 132S 2P 5.5kW Output: 5.5 kW | Poles: 2 | Shaft: Ø38k6
Ex e 132S 2P 7.5kW Output: 7.5 kW | Poles: 2 | Shaft: Ø38k6
Ex e 132S 4P 5.5kW Output: 5.5 kW | Poles: 4 | Shaft: Ø38k6
Ex e 132S 6P 3.7kW Output: 3.7 kW | Poles: 6 | Shaft: Ø38k6
Ex e 132M 4P 7.5kW Output: 7.5 kW | Poles: 4 | Shaft: Ø38k6
Ex e 132M 6P 5.5kW Output: 5.5 kW | Poles: 6 | Shaft: Ø38k6
Ex e 160M 2P 11kW Output: 11 kW | Poles: 2 | Shaft: Ø42k6
Ex e 160M 4P 11kW Output: 11 kW | Poles: 4 | Shaft: Ø42k6
Ex e 160M 6P 7.5kW Output: 7.5 kW | Poles: 6 | Shaft: Ø42k6
Ex e 160L 2P 15kW Output: 15 kW | Poles: 2 | Shaft: Ø42k6
Ex e 160L 4P 15kW Output: 15 kW | Poles: 4 | Shaft: Ø42k6
Ex e 160L 6P 11kW Output: 11 kW | Poles: 6 | Shaft: Ø42k6
Ex e 180M 2P 18.5kW Output: 18.5 kW | Poles: 2 | Shaft: Ø48k6
Ex e 180M 4P 18.5kW Output: 18.5 kW | Poles: 4 | Shaft: Ø48k6
Ex e 180M 6P 15kW Output: 15 kW | Poles: 6 | Shaft: Ø48k6
Ex e 180L 2P 22kW Output: 22 kW | Poles: 2 | Shaft: Ø55m6
Ex e 180L 4P 22kW Output: 22 kW | Poles: 4 | Shaft: Ø55m6
Ex e 180L 6P 15kW Output: 15 kW | Poles: 6 | Shaft: Ø55m6
Ex e 200L 2P 22kW Output: 22 kW | Poles: 2 | Shaft: Ø55m6
Ex e 200L 2P 30kW Output: 30 kW | Poles: 2 | Shaft: Ø55m6
Ex e 200L 2P 37kW Output: 37 kW | Poles: 2 | Shaft: Ø55m6
Ex e 200L 4P 30kW Output: 30 kW | Poles: 4 | Shaft: Ø60m6
Ex e 200L 4P 37kW Output: 37 kW | Poles: 4 | Shaft: Ø60m6
Ex e 200L 6P 18.5kW Output: 18.5 kW | Poles: 6 | Shaft: Ø60m6
Ex e 200L 6P 22kW Output: 22 kW | Poles: 6 | Shaft: Ø60m6
Ex e 225S 2P 37kW Output: 37 kW | Poles: 2 | Shaft: Ø55m6
Ex e 225S 2P 45kW Output: 45 kW | Poles: 2 | Shaft: Ø55m6
Ex e 225S 2P 55kW Output: 55 kW | Poles: 2 | Shaft: Ø55m6
Ex e 225S 4P 37kW Output: 37 kW | Poles: 4 | Shaft: Ø65m6
Ex e 225S 4P 45kW Output: 45 kW | Poles: 4 | Shaft: Ø65m6
Ex e 225S 4P 55kW Output: 55 kW | Poles: 4 | Shaft: Ø65m6
Ex e 225S 6P 30kW Output: 30 kW | Poles: 6 | Shaft: Ø65m6
Ex e 225S 6P 37kW Output: 37 kW | Poles: 6 | Shaft: Ø65m6
Ex e 250S,M 2P 75kW Output: 75 kW | Poles: 2 | Shaft: Ø55m6
Ex e 250S,M 4P 75kW Output: 75 kW | Poles: 4 | Shaft: Ø75m6
Ex e 250S,M 6P 45kW Output: 45 kW | Poles: 6 | Shaft: Ø75m6
Ex e 250S,M 6P 55kW Output: 55 kW | Poles: 6 | Shaft: Ø75m6
Ex e 280S,M 2P 95kW Output: 95 kW | Poles: 2 | Shaft: Ø55m6
Ex e 280S,M 2P 110kW Output: 110 kW | Poles: 2 | Shaft: Ø55m6
Ex e 280S,M 2P 132kW Output: 132 kW | Poles: 2 | Shaft: Ø55m6
Ex e 280S,M 4P 95kW Output: 95 kW | Poles: 4 | Shaft: Ø85m6
Ex e 280S,M 4P 110kW Output: 110 kW | Poles: 4 | Shaft: Ø85m6
Ex e 280S,M 4P 132kW Output: 132 kW | Poles: 4 | Shaft: Ø85m6
Ex e 280S,M 6P 75kW Output: 75 kW | Poles: 6 | Shaft: Ø85m6
Ex e 280S,M 6P 90kW Output: 90 kW | Poles: 6 | Shaft: Ø85m6
