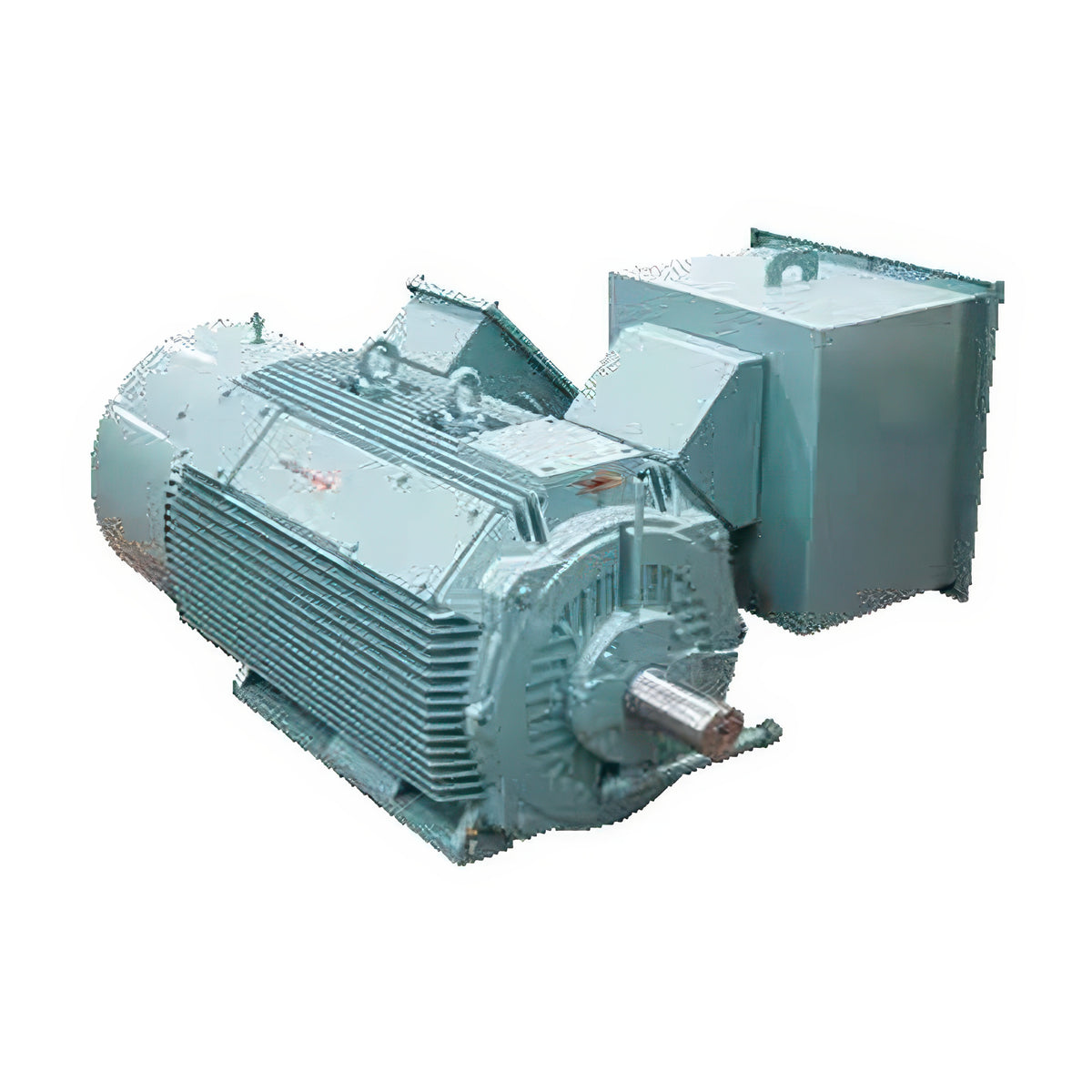

HIGEN RNM NFE/NFEA High Voltage Induction Motor, TEFC Cast Iron Frame, IEC 280-450, 90-950 kW

HIGEN RNM NFE/NFEA High Voltage Induction Motor, TEFC Cast Iron Frame, IEC 280-450, 90-950 kW

The NFE and NFEA are totally enclosed fan cooled (TEFC) high voltage squirrel cage induction motors of the N-series NF line.

Key features

  • A robust high strength cast iron frame with cooling fins gives low vibration and allows interchangeability with existing steel frame motors
  • Ratings cover 2 to 8 poles at 3300/6600 V 60 Hz and 3000/6000 V 50 Hz, with versions up to 13.2 kV available
  • The design targets high efficiency and reduced noise, with self cooling as standard and forced cooling available for VFD duty
  • Products are listed by frame size; pole count, voltage and options are specified at order

Specifications

Rotor aluminum die-cast squirrel cage (copper bar optional)
Voltage range 380 V to 13.2 kV (frames for 11 kV and above on request)
Mounting B3 (V1 optional)
Insulation class F
Enclosure TEFC IP44/IP65, IC411/IC416
NFE-280 Series: NFE | Frame: IEC 280 | Output 60Hz 3300V/6600V: 2P 220 kW, 4P 230 kW, 6P 160 kW, 8P 120 kW | Output 50Hz 3000V/6000V: 2P 200 kW, 4P 200 kW, 6P 130 kW, 8P 90 kW | Weight: 2P direct 1550 kg; 4P+ direct 1600 kg; 4P+ belt 1680 kg | Shaft height H: 280 mm | Shaft D x E: 2P 70x140, 4P+ direct 85x170, 4P+ belt 95x170 mm | Bearings (DE/NDE): 2P 6216C3/6216C3, 4P+ direct 6318C3/6218C3, 4P+ belt NU320/6318C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
NFE-315 Series: NFE | Frame: IEC 315 | Output 60Hz 3300V/6600V: 4P 400 kW, 6P 260 kW, 8P 185 kW | Output 50Hz 3000V/6000V: 4P 360 kW, 6P 230 kW, 8P 150 kW | Weight: 4P+ direct 2160 kg; 4P+ belt 2240 kg | Shaft height H: 315 mm | Shaft D x E: 4P+ direct 90x170, 4P+ belt 100x210 mm | Bearings (DE/NDE): 4P+ direct 6320C3/6220C3, 4P+ belt NU322/6320C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
NFEA-315 Series: NFEA | Frame: IEC 315 | Output 60Hz 3300V/6600V: 2P 360 kW | Output 50Hz 3000V/6000V: 2P 320 kW | Weight: 2P direct 2100 kg | Shaft height H: 315 mm | Shaft D x E: 70x140 mm | Bearings (DE/NDE): 6315C3/6314C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
NFEA-355 Series: NFEA | Frame: IEC 355 | Output 60Hz 3300V/6600V: 2P 550 kW, 4P 580 kW, 6P 460 kW, 8P 320 kW | Output 50Hz 3000V/6000V: 2P 500 kW, 4P 480 kW, 6P 380 kW, 8P 260 kW | Weight: 2P direct 3000 kg; 4P+ direct 3400 kg; 4P+ belt 3500 kg | Shaft height H: 355 mm | Shaft D x E: 2P 75x170, 4P+ direct 100x210, 4P+ belt 110x210 mm | Bearings (DE/NDE): 2P 6316C3/6315C3, 4P+ direct 6322C3/6222C3, 4P+ belt NU324/6322C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
NFEA-400 Series: NFEA | Frame: IEC 400 | Output 60Hz 3300V/6600V: 2P 700 kW, 4P 750 kW, 6P 600 kW, 8P 420 kW | Output 50Hz 3000V/6000V: 2P 600 kW, 4P 710 kW, 6P 520 kW, 8P 360 kW | Weight: 2P direct 4000 kg; 4P+ direct 4400 kg | Shaft height H: 400 mm | Shaft D x E: 2P 80x170, 4P+ 110x210 mm | Bearings (DE/NDE): 2P 6317C4/6317C4, 4P+ 6324C3/6224C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
NFE-450 Series: NFE | Frame: IEC 450 | Output 60Hz 3300V/6600V: 4P 950 kW, 6P 750 kW, 8P 600 kW | Output 50Hz 3000V/6000V: 4P 830 kW, 6P 660 kW, 8P 520 kW | Weight: 4P+ direct 5650 kg | Shaft height H: 450 mm | Shaft D x E: 120x250 mm | Bearings (DE/NDE): 6326C3/6326C3 | Rotor: aluminum die-cast squirrel cage (copper bar optional) | Frame: cast iron | Voltage range: 380 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEFC IP44/IP65, IC411/IC416
AC MotorsHIGEN RNM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM NFE/NFEA High Voltage Induction Motor, TEFC Cast Iron Frame, IEC 280-450, 90-950 kW

Brand HIGEN RNM·AC Motors

Available part numbers (6)

NFE-280, NFE-315, NFEA-315, NFEA-355, NFEA-400, NFE-450

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
