• HILTI 2151635 4-Flute SDS PLUS Bit
1 1

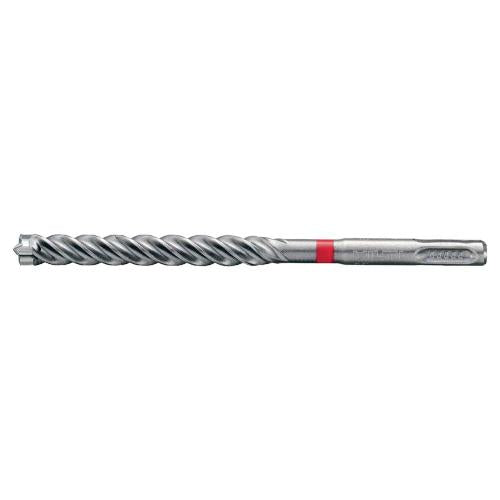

HILTI 2151635 4-Flute SDS PLUS Bit

HILTI 2151635 4-Flute SDS PLUS Bit

The Hilti 2151635 4-Flute SDS PLUS Bit is a rotary hammer drill bit engineered for fast, efficient penetration into concrete and masonry, sourced direct from Korea.

Key features

  • Four-flute designs are commonly favored in construction and civil works for their enhanced debris evacuation and reduced heat buildup during continuous drilling operations
569-1904 2151635 | 14-220 (TE-CX 14/22) | Spec: 14 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 14x220
569-1913 2151636 | 14-270 (TE-CX 14/27) | Spec: 14 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 14x270
569-1922 2151637 | 14-370 (TE-CX 14/37) | Spec: 14 | Overall Length: 370 | Effective Length: 300 | Spec-Overall Length: 14x370
569-1931 2151638 | 14-470 (TE-CX 14/47) | Spec: 14 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 14x470
569-1940 2151639 | 14-610 (TE-CX 14/61) | Spec: 14 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 14x610
569-1959 2131132 | 14-900 (TE-CX 14/90) | Spec: 14 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 14x900
569-1968 2131133 | 14-1260 (TE-CX 14/126) | Spec: 14 | Overall Length: 1260 | Effective Length: 1180 | Spec-Overall Length: 14x1260
569-1977 2151640 | 15-170 (TE-CX 15/17) | Spec: 15 | Overall Length: 170 | Effective Length: 100 | Spec-Overall Length: 15x170
569-1986 2151641 | 15-270 (TE-CX 15/27) | Spec: 15 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 15x270
569-1995 2151642 | 15-470 (TE-CX 15/47) | Spec: 15 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 15x470
569-2000 2151592 | 16-170 (TE-CX 16/17) | Spec: 16 | Overall Length: 170 | Effective Length: 100 | Spec-Overall Length: 16x170
569-2019 2151593 | 16-220 (TE-CX 16/22) | Spec: 16 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 16x220
569-2028 2151594 | 16-270 (TE-CX(5) 16/27) | Spec: 16 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 16x270
569-2037 2151596 | 16-470 (TE-CX 16/47) | Spec: 16 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 16x470
569-2046 2151597 | 16-610 (TE-CX 16/61) | Spec: 16 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 16x610
569-2055 2131134 | 16-900 (TE-CX 16/90) | Spec: 16 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 16x900
569-2064 2131135 | 16-1280 (TE-CX 16/128) | Spec: 16 | Overall Length: 1280 | Effective Length: 1210 | Spec-Overall Length: 16x1280
569-2073 2151598 | 17-220 (TE-CX 17/22) | Spec: 17 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 17x220
569-2082 2206745 | 18-220 (TE-CX 18/22) | Spec: 18 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 18x220
569-2091 2206746 | 18-320 (TE-CX 18/32) | Spec: 18 | Overall Length: 320 | Effective Length: 250 | Spec-Overall Length: 18x320
569-2107 2206747 | 18-480 (TE-CX 18/48) | Spec: 18 | Overall Length: 480 | Effective Length: 400 | Spec-Overall Length: 18x480
569-2116 2206748 | 18-610 (TE-CX 18/61) | Spec: 18 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 18x610
569-2125 2206749 | 18-900 (TE-CX 18/90) | Spec: 18 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 18x900
569-2134 2206751 | 20-220 (TE-CX 20/22) | Spec: 20 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 20x220
Hammer Drill Bits & Concrete DrillsHILTI
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HILTI 2151635 4-Flute SDS PLUS Bit

Brand HILTI·Hammer Drill Bits & Concrete Drills

Available part numbers (24)

569-1904, 569-1913, 569-1922, 569-1931, 569-1940, 569-1959, 569-1968, 569-1977, 569-1986, 569-1995 + 14 more — see full table ↓

How to order

Send the HILTI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
569-19042151635 | 14-220 (TE-CX 14/22) | Spec: 14 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 14x220
569-19132151636 | 14-270 (TE-CX 14/27) | Spec: 14 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 14x270
569-19222151637 | 14-370 (TE-CX 14/37) | Spec: 14 | Overall Length: 370 | Effective Length: 300 | Spec-Overall Length: 14x370
569-19312151638 | 14-470 (TE-CX 14/47) | Spec: 14 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 14x470
569-19402151639 | 14-610 (TE-CX 14/61) | Spec: 14 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 14x610
569-19592131132 | 14-900 (TE-CX 14/90) | Spec: 14 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 14x900
569-19682131133 | 14-1260 (TE-CX 14/126) | Spec: 14 | Overall Length: 1260 | Effective Length: 1180 | Spec-Overall Length: 14x1260
569-19772151640 | 15-170 (TE-CX 15/17) | Spec: 15 | Overall Length: 170 | Effective Length: 100 | Spec-Overall Length: 15x170
569-19862151641 | 15-270 (TE-CX 15/27) | Spec: 15 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 15x270
569-19952151642 | 15-470 (TE-CX 15/47) | Spec: 15 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 15x470
569-20002151592 | 16-170 (TE-CX 16/17) | Spec: 16 | Overall Length: 170 | Effective Length: 100 | Spec-Overall Length: 16x170
569-20192151593 | 16-220 (TE-CX 16/22) | Spec: 16 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 16x220
569-20282151594 | 16-270 (TE-CX(5) 16/27) | Spec: 16 | Overall Length: 270 | Effective Length: 200 | Spec-Overall Length: 16x270
569-20372151596 | 16-470 (TE-CX 16/47) | Spec: 16 | Overall Length: 470 | Effective Length: 400 | Spec-Overall Length: 16x470
569-20462151597 | 16-610 (TE-CX 16/61) | Spec: 16 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 16x610
569-20552131134 | 16-900 (TE-CX 16/90) | Spec: 16 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 16x900
569-20642131135 | 16-1280 (TE-CX 16/128) | Spec: 16 | Overall Length: 1280 | Effective Length: 1210 | Spec-Overall Length: 16x1280
569-20732151598 | 17-220 (TE-CX 17/22) | Spec: 17 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 17x220
569-20822206745 | 18-220 (TE-CX 18/22) | Spec: 18 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 18x220
569-20912206746 | 18-320 (TE-CX 18/32) | Spec: 18 | Overall Length: 320 | Effective Length: 250 | Spec-Overall Length: 18x320
569-21072206747 | 18-480 (TE-CX 18/48) | Spec: 18 | Overall Length: 480 | Effective Length: 400 | Spec-Overall Length: 18x480
569-21162206748 | 18-610 (TE-CX 18/61) | Spec: 18 | Overall Length: 610 | Effective Length: 540 | Spec-Overall Length: 18x610
569-21252206749 | 18-900 (TE-CX 18/90) | Spec: 18 | Overall Length: 900 | Effective Length: 830 | Spec-Overall Length: 18x900
569-21342206751 | 20-220 (TE-CX 20/22) | Spec: 20 | Overall Length: 220 | Effective Length: 150 | Spec-Overall Length: 20x220
