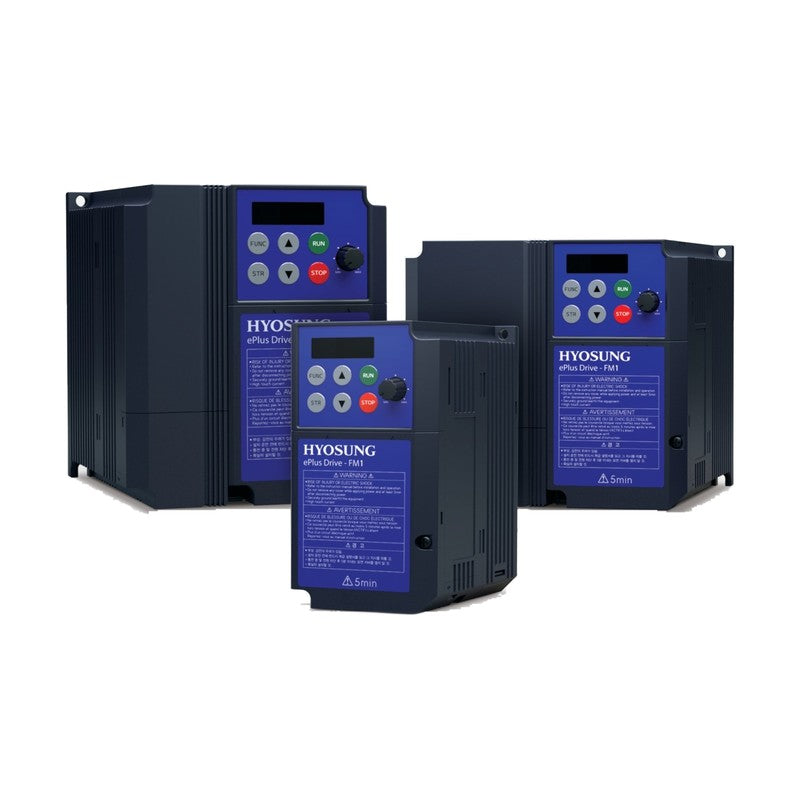

Hyosung FM1 ePlus Drive Compact Inverter, 0.4-3.7 kW

Compact general-purpose V/f and sensorless-vector inverter for 0.4-2.2 kW (1-phase 200 V input) and 0.4-3.7 kW (3-phase 400 V input) motors in conveyors, mixers, fans and pumps.

Key features

Sensorless vector control with auto torque boost for strong low-speed torque
Built-in PID control, multi-speed operation and resonance-frequency avoidance
Curve acceleration/deceleration and over-torque detection for conveying loads
Built-in braking transistor and RS-485 port (RJ-45)
Compact design with reinforced PCB coating; UL, CE and RoHS certified

Specifications

Output frequency	0.01-400 Hz
Overload rating	150 % for 1 min, 200 % for 0.5 s
Input frequency	50/60 Hz (±5 %)
Braking transistor	Built-in
Protection rating	IP20 (IEC 60529), UL open type
Digital inputs	5 intelligent inputs (sink/source)
Analog inputs	0-10 V, 4-20 mA
Outputs	Alarm relay (250 VAC 0.3 A), open-collector, analog monitor
Communication	RS-485 (RJ-45)

FM1-0040-7		Input: 1-phase 200-240 V \| Applied motor: 0.4 kW \| Rated output current: 3.5 A \| Input current: 5.4 A \| Cooling: Fan \| Frame: F1 \| Weight: 0.6 kg
FM1-0075-7		Input: 1-phase 200-240 V \| Applied motor: 0.75 kW \| Rated output current: 4.2 A \| Input current: 9.7 A \| Cooling: Fan \| Frame: F1 \| Weight: 0.6 kg
FM1-0150-7		Input: 1-phase 200-240 V \| Applied motor: 1.5 kW \| Rated output current: 9.2 A \| Input current: 16.4 A \| Cooling: Fan \| Frame: F2 \| Weight: 1.0 kg
FM1-0220-7		Input: 1-phase 200-240 V \| Applied motor: 2.2 kW \| Rated output current: 10 A \| Input current: 24 A \| Cooling: Fan \| Frame: F2 \| Weight: 1.0 kg
FM1-0040-4		Input: 3-phase 380-480 V \| Applied motor: 0.4 kW \| Rated output current: 1.8 A \| Input current: 1.7 A \| Cooling: Natural \| Frame: F2 \| Weight: 0.8 kg
FM1-0075-4		Input: 3-phase 380-480 V \| Applied motor: 0.75 kW \| Rated output current: 2.5 A \| Input current: 3.1 A \| Cooling: Natural \| Frame: F2 \| Weight: 0.8 kg
FM1-0150-4		Input: 3-phase 380-480 V \| Applied motor: 1.5 kW \| Rated output current: 4.3 A \| Input current: 5.9 A \| Cooling: Fan \| Frame: F2 \| Weight: 0.9 kg
FM1-0220-4		Input: 3-phase 380-480 V \| Applied motor: 2.2 kW \| Rated output current: 6.3 A \| Input current: 8.2 A \| Cooling: Fan \| Frame: F2 \| Weight: 0.9 kg
FM1-0370-4		Input: 3-phase 380-480 V \| Applied motor: 3.7 kW \| Rated output current: 10.5 A \| Input current: 13 A \| Cooling: Fan \| Frame: F3 \| Weight: 1.3 kg

AC DrivesHyosung

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung FM1 ePlus Drive Compact Inverter, 0.4-3.7 kW

Brand Hyosung·AC Drives

Available part numbers (9)

FM1-0040-7, FM1-0075-7, FM1-0150-7, FM1-0220-7, FM1-0040-4, FM1-0075-4, FM1-0150-4, FM1-0220-4, FM1-0370-4

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
