• Inovance AP700 Series Display-Integrated Motion Controller
1 1

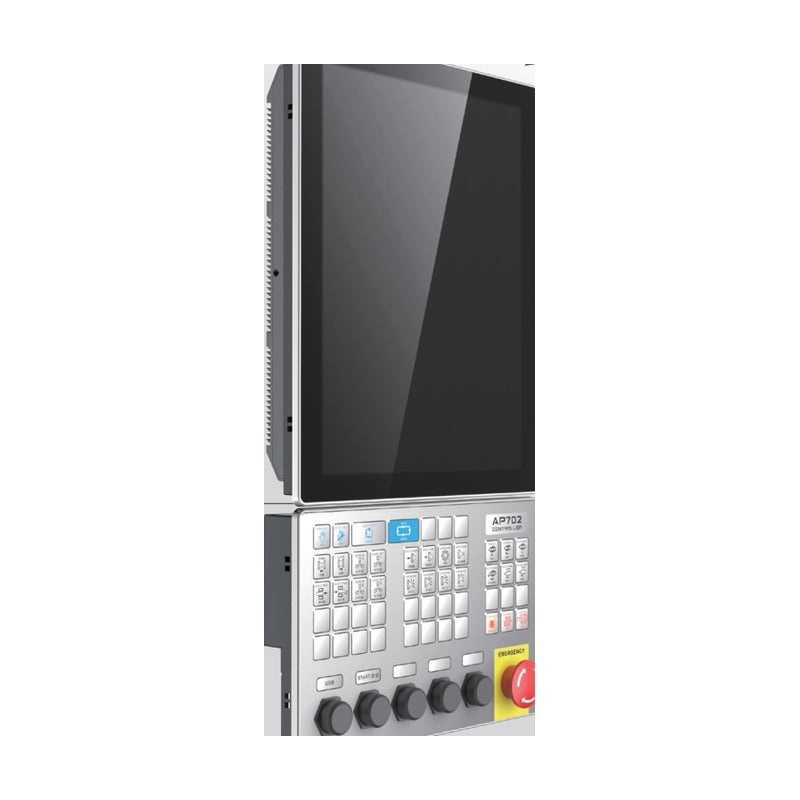

Inovance AP700 Series Display-Integrated Motion Controller

Inovance AP700 Series Display-Integrated Motion Controller

AP700 series intelligent controllers integrate an Intel x86 motion controller with a 15 inch resistive touch screen for machine tool, CNC and hydraulic applications.

Key features

  • Intel x86 1.6 GHz dual-core processor with integrated 15 in 1024 x 768 display
  • EtherCAT master with min. 500 us bus cycle; 16 axes synchronized at 1 ms, up to 48 axes
  • Built-in CNC, PLC, HMI and CAM functions; G-code generation from DXF/DWG
  • Visual programming with InoProShop; fan-free design
  • EP700-KEYB keypad for the EP700 hydraulic/injection molding version

Specifications

Processor Intel x86 1.6 GHz dual-core
Memory 4 GB / 8 GB DDR4, 64 GB SSD
Ports EtherCAT x1, Ethernet x1, USB x4, RS485 x2
OS Linux/RT
Max. axes 48
Dimensions (W x H x D) 351.9 x 278.9 x 66.5 mm
Cut-out 338 x 265 mm
Source Inovance Expansion Module and HMI catalogue 19120152 A01, p. 9-11
AP703-0221-U0R0 Model: AP703-0221-U0R0 | Category: Panel controller | Description: 15 in resistive, general-purpose
AP705-0221-U0R0 Model: AP705-0221-U0R0 | Category: Panel controller | Description: 15 in resistive, graphics control
EP700-KEYB Model: EP700-KEYB | Category: Option | Description: Injection molding machine keypad
Motion ControllersInovance
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance AP700 Series Display-Integrated Motion Controller

Brand Inovance·Motion Controllers

Available part numbers (3)

AP703-0221-U0R0, AP705-0221-U0R0, EP700-KEYB

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP703-0221-U0R0Model: AP703-0221-U0R0 | Category: Panel controller | Description: 15 in resistive, general-purpose
AP705-0221-U0R0Model: AP705-0221-U0R0 | Category: Panel controller | Description: 15 in resistive, graphics control
EP700-KEYBModel: EP700-KEYB | Category: Option | Description: Injection molding machine keypad

Need a different model, or a part not listed here? Send us your parts list →
