• Omron GD Series IO-Link Master Unit (16 Ports)
1 1

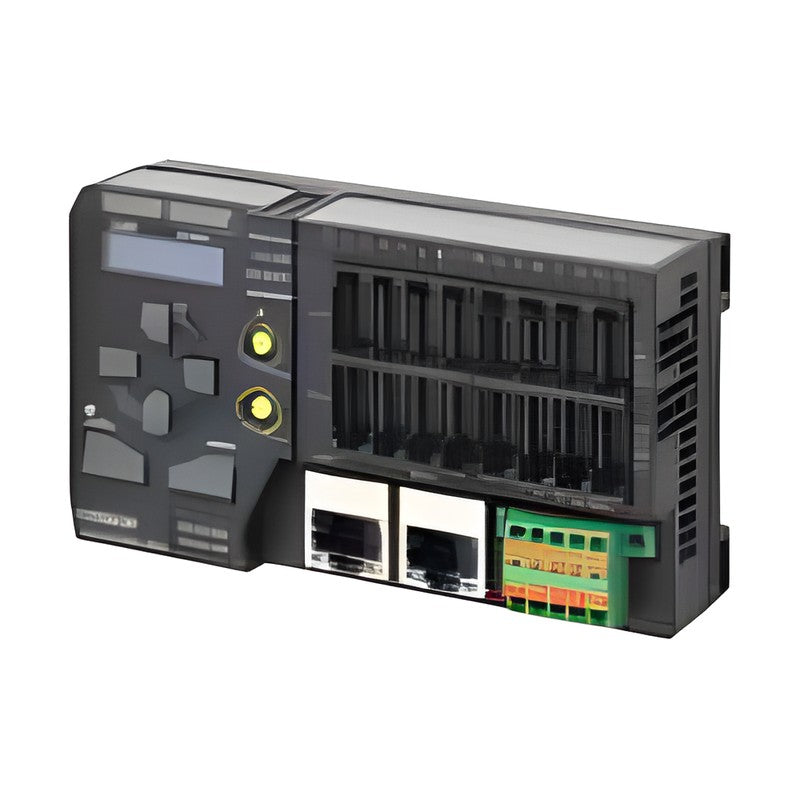

Omron GD Series IO-Link Master Unit (16 Ports)

Omron GD Series IO-Link Master Unit (16 Ports)

The GD series IO-Link master unit connects 16 IO-Link or standard I/O devices to EtherNet/IP, Modbus/TCP or CC-Link IE networks.

Key features

  • 16 ports switchable between IO-Link and SIO (PNP/NPN in/out)
  • EtherNet/IP, Modbus/TCP and CC-Link IE Field Basic (MLP)
  • CC-Link IE Field / CC-Link IE TSN models (CLI)
  • Spring-clamp terminal block or e-CON socket device connection
  • OLED display and free Wave Inspire Hub setup software

Specifications

Ports 16
IO-Link revision 1.1
Power supply 24 VDC +/-15%
Port current 0.2 A per port, 2.5 A total
Field network ports 2 x RJ45
Minimum cycle time 0.3 ms
Source Omron GD Series Catalog E633-E1-01 (English ed.), p. 27, 29
GD-ILM16C-MLP Network: EtherNet/IP, Modbus/TCP, CC-Link IEFB | Device connector: Spring clamp terminal block
GD-ILM16E-MLP Network: EtherNet/IP, Modbus/TCP, CC-Link IEFB | Device connector: e-CON socket
GD-ILM16C-CLI Network: CC-Link IE Field / IE TSN | Device connector: Spring clamp terminal block
GD-ILM16E-CLI Network: CC-Link IE Field / IE TSN | Device connector: e-CON socket
Industrial NetworkingOmron
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron GD Series IO-Link Master Unit (16 Ports)

Brand Omron·Industrial Networking

Available part numbers (4)

GD-ILM16C-MLP, GD-ILM16E-MLP, GD-ILM16C-CLI, GD-ILM16E-CLI

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GD-ILM16C-MLPNetwork: EtherNet/IP, Modbus/TCP, CC-Link IEFB | Device connector: Spring clamp terminal block
GD-ILM16E-MLPNetwork: EtherNet/IP, Modbus/TCP, CC-Link IEFB | Device connector: e-CON socket
GD-ILM16C-CLINetwork: CC-Link IE Field / IE TSN | Device connector: Spring clamp terminal block
GD-ILM16E-CLINetwork: CC-Link IE Field / IE TSN | Device connector: e-CON socket

Need a different model, or a part not listed here? Send us your parts list →
