Inovance BS High-Precision Heavy-Load Ball Screw
Inovance BS High-Precision Heavy-Load Ball Screw

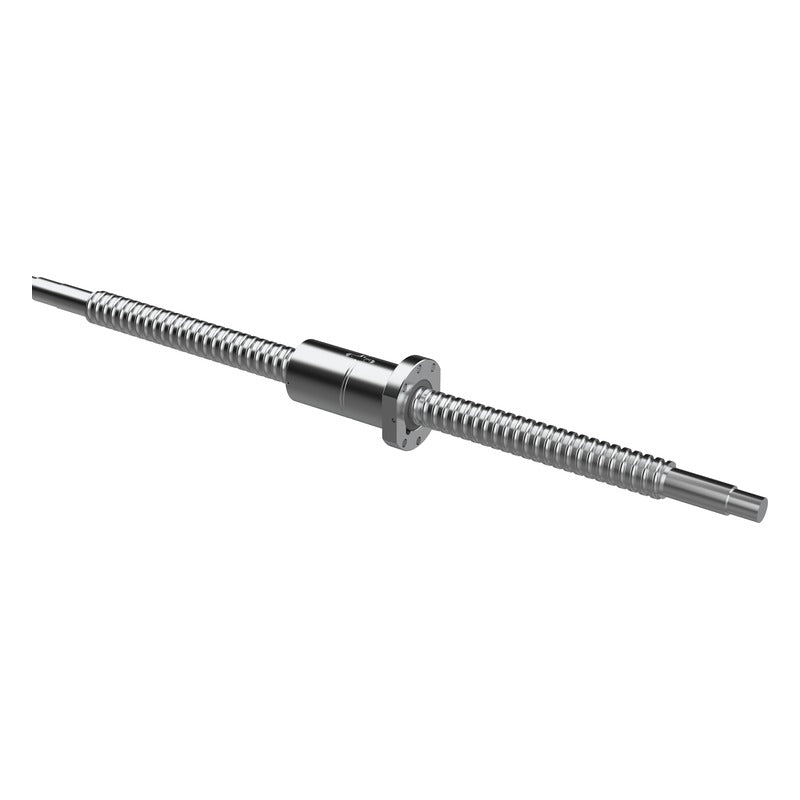

High-precision BS-series ball screw with large balls and multiple circulations for heavy axial loads.
Key features
- Ground screw shaft external thread and nut internal thread
- High-frequency induction hardening for consistent hardened layer
- Rated for high permissible axial load at 0.05 mm axial clearance
Specifications
| Accuracy class | C1, C3, C5, C7 (JIS B 1192) |
|---|---|
| Thread direction | Right-hand (left-hand on request) |
| Preload | Oversize ball, spherical washer or full preload (per naming chart) |
| Nut | Flange nut (type A/B) |
| Circulation | Internal or end circulation |
| BS3210FX | Shaft dia.: 32 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 6.8 x 1 | Dynamic load Ca: 74.8 kN | Static load Coa: 198 kN | Permissible axial load: 22.6 kN | |
| BS4010FX | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 6.8 x 1 | Dynamic load Ca: 84.2 kN | Static load Coa: 250.8 kN | Permissible axial load: 27.8 kN | |
| BS4010FM | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 3.8 x 1 | Dynamic load Ca: 41 kN | Static load Coa: 110 kN | Permissible axial load: 13.4 kN | |
| BS5010FX | Shaft dia.: 50 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 6.8 x 1 | Dynamic load Ca: 93.5 kN | Static load Coa: 317.9 kN | Permissible axial load: 31.2 kN | |
| BS5012FU | Shaft dia.: 50 mm | Lead: 12 mm | Ball dia.: 7.938 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 65 kN | Static load Coa: 180 kN | Permissible axial load: 25 kN | |
| BS5012FW | Shaft dia.: 50 mm | Lead: 12 mm | Ball dia.: 7.938 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 97.5 kN | Static load Coa: 230 kN | Permissible axial load: 33 kN | |
| BS6310FS | Shaft dia.: 63 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 8 | Dynamic load Ca: 126 kN | Static load Coa: 465 kN | Permissible axial load: 51.2 kN | |
| BS6312FW | Shaft dia.: 63 mm | Lead: 12 mm | Ball dia.: 7.938 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 128 kN | Static load Coa: 450 kN | Permissible axial load: 47 kN |
