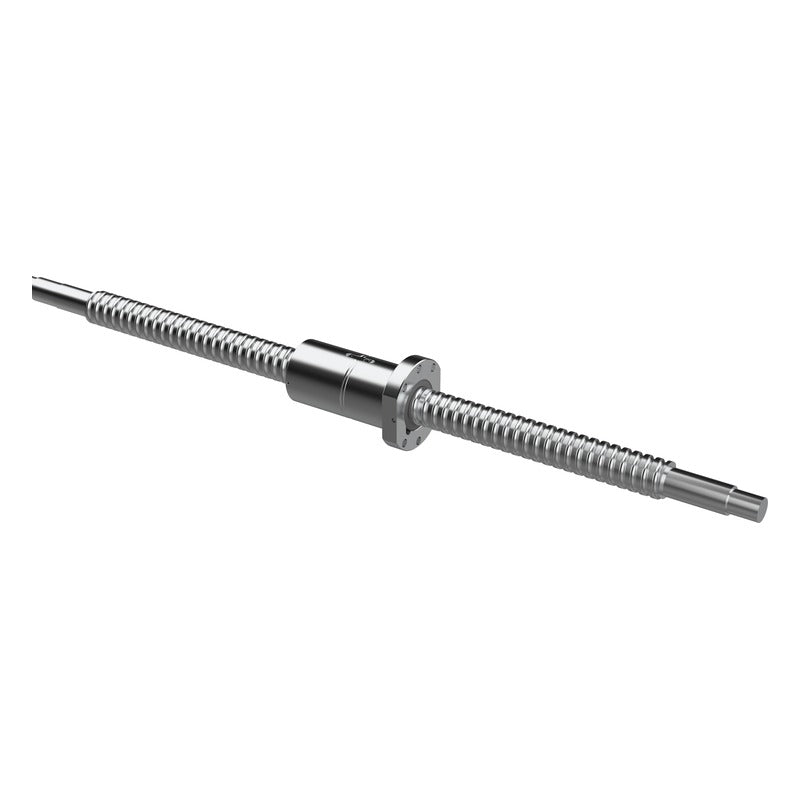

Inovance BS Precision Ball Screw, Internal Circulation Flange Nut
Inovance BS Precision Ball Screw, Internal Circulation Flange Nut
Precision ball screw with compact internal-circulation flange nut for general automation and machine tools.
Key features
- Ground screw shaft external thread and nut internal thread
- High-frequency induction hardening for consistent hardened layer
Specifications
| Accuracy class | C1, C3, C5, C7 (JIS B 1192) |
|---|---|
| Thread direction | Right-hand standard; left-hand on request |
| Preload | Oversize ball, spherical washer or full preload (per naming chart) |
| Nut | Flange nut |
| Circulation | Internal |
| BS1604FT | Shaft dia.: 16 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 4.9 kN | Static load Coa: 9.8 kN | Axial stiffness: 204 N/μm | |
| BS1605FU | Shaft dia.: 16 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 9 kN | Static load Coa: 17 kN | Axial stiffness: 280 N/μm | |
| BS1606FU | Shaft dia.: 16 mm | Lead: 6 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 8.5 kN | Static load Coa: 15.6 kN | Axial stiffness: 274 N/μm | |
| BS2004FW | Shaft dia.: 20 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 9.1 kN | Static load Coa: 22.2 kN | Axial stiffness: 475 N/μm | |
| BS2005FT | Shaft dia.: 20 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 8.3 kN | Static load Coa: 17.3 kN | Axial stiffness: 260 N/μm | |
| BS2006FW | Shaft dia.: 20 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 19.1 kN | Static load Coa: 40 kN | Axial stiffness: 508 N/μm | |
| BS2008FU | Shaft dia.: 20 mm | Lead: 8 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 13.4 kN | Static load Coa: 26.5 kN | Axial stiffness: 344 N/μm | |
| BS2010FT | Shaft dia.: 20 mm | Lead: 10 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 9.9 kN | Static load Coa: 18.2 kN | Axial stiffness: 256 N/μm || Variant: Shaft dia.: 20 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 12.1 kN | Static load Coa: 21.1 kN | Axial stiffness: 267 N/μm | |
| BS2504FT | Shaft dia.: 25 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 6 kN | Static load Coa: 15.6 kN | Axial stiffness: 295 N/μm | |
| BS2505FT | Shaft dia.: 25 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 9.5 kN | Static load Coa: 23 kN | Axial stiffness: 316 N/μm | |
| BS2506FW | Shaft dia.: 25 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 23.3 kN | Static load Coa: 57.5 kN | Axial stiffness: 630 N/μm | |
| BS2510FT | Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 8.2 kN | Static load Coa: 18.5 kN | Axial stiffness: 301 N/μm || Variant: Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 14.5 kN | Static load Coa: 28.7 kN | Axial stiffness: 322 N/μm | |
| BS2510FU | Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 14.4 kN | Static load Coa: 31.5 kN | Axial stiffness: 408 N/μm | |
| BS2805FV | Shaft dia.: 28 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 14.3 kN | Static load Coa: 38.5 kN | Axial stiffness: 550 N/μm | |
| BS2810FW | Shaft dia.: 28 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 25.8 kN | Static load Coa: 58 kN | Axial stiffness: 670 N/μm | |
| BS3206FT | Shaft dia.: 32 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 18.3 kN | Static load Coa: 44 kN | Axial stiffness: 402 N/μm | |
| BS3210FT | Shaft dia.: 32 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 25.8 kN | Static load Coa: 55.5 kN | Axial stiffness: 413 N/μm | |
| BS3210FV | Shaft dia.: 32 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 45 kN | Static load Coa: 98 kN | Axial stiffness: 667 N/μm | |
| BS3212FU | Shaft dia.: 32 mm | Lead: 12 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 31.5 kN | Static load Coa: 68 kN | Axial stiffness: 535 N/μm | |
| BS3610FV | Shaft dia.: 36 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 35.5 kN | Static load Coa: 78.5 kN | Axial stiffness: 698 N/μm | |
| BS4005FT | Shaft dia.: 40 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 12.1 kN | Static load Coa: 40 kN | Axial stiffness: 471 N/μm | |
| BS4010FS | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 8 | Dynamic load Ca: 67 kN | Static load Coa: 185 kN | Axial stiffness: 1268 N/μm | |
| BS4010FV | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 54 kN | Static load Coa: 136 kN | Axial stiffness: 836 N/μm | |
| BS5010FW | Shaft dia.: 50 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 60 kN | Static load Coa: 184 kN | Axial stiffness: 1171 N/μm | |
| BS5010FU | Shaft dia.: 50 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 50 kN | Static load Coa: 140 kN | Axial stiffness: 804 N/μm | |
| BS5016FV | Shaft dia.: 50 mm | Lead: 16 mm | Ball dia.: 12.7 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 120 kN | Static load Coa: 278 kN | Axial stiffness: 493 N/μm | |
| BS6310FT | Shaft dia.: 63 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 38 kN | Static load Coa: 124 kN | Axial stiffness: 745 N/μm |
Ball ScrewsInovance
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Inovance BS Precision Ball Screw, Internal Circulation Flange Nut
Available part numbers (27)
BS1604FT, BS1605FU, BS1606FU, BS2004FW, BS2005FT, BS2006FW, BS2008FU, BS2010FT, BS2504FT, BS2505FT + 17 more — see full table ↓
How to order
Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Inovance
Ball Screws
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| BS1604FT | Shaft dia.: 16 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 4.9 kN | Static load Coa: 9.8 kN | Axial stiffness: 204 N/μm | ||
| BS1605FU | Shaft dia.: 16 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 9 kN | Static load Coa: 17 kN | Axial stiffness: 280 N/μm | ||
| BS1606FU | Shaft dia.: 16 mm | Lead: 6 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 8.5 kN | Static load Coa: 15.6 kN | Axial stiffness: 274 N/μm | ||
| BS2004FW | Shaft dia.: 20 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 9.1 kN | Static load Coa: 22.2 kN | Axial stiffness: 475 N/μm | ||
| BS2005FT | Shaft dia.: 20 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 8.3 kN | Static load Coa: 17.3 kN | Axial stiffness: 260 N/μm | ||
| BS2006FW | Shaft dia.: 20 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 19.1 kN | Static load Coa: 40 kN | Axial stiffness: 508 N/μm | ||
| BS2008FU | Shaft dia.: 20 mm | Lead: 8 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 13.4 kN | Static load Coa: 26.5 kN | Axial stiffness: 344 N/μm | ||
| BS2010FT | Shaft dia.: 20 mm | Lead: 10 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 9.9 kN | Static load Coa: 18.2 kN | Axial stiffness: 256 N/μm || Variant: Shaft dia.: 20 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 12.1 kN | Static load Coa: 21.1 kN | Axial stiffness: 267 N/μm | ||
| BS2504FT | Shaft dia.: 25 mm | Lead: 4 mm | Ball dia.: 2.381 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 6 kN | Static load Coa: 15.6 kN | Axial stiffness: 295 N/μm | ||
| BS2505FT | Shaft dia.: 25 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 9.5 kN | Static load Coa: 23 kN | Axial stiffness: 316 N/μm | ||
| BS2506FW | Shaft dia.: 25 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 23.3 kN | Static load Coa: 57.5 kN | Axial stiffness: 630 N/μm | ||
| BS2510FT | Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 8.2 kN | Static load Coa: 18.5 kN | Axial stiffness: 301 N/μm || Variant: Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 14.5 kN | Static load Coa: 28.7 kN | Axial stiffness: 322 N/μm | ||
| BS2510FU | Shaft dia.: 25 mm | Lead: 10 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 14.4 kN | Static load Coa: 31.5 kN | Axial stiffness: 408 N/μm | ||
| BS2805FV | Shaft dia.: 28 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 14.3 kN | Static load Coa: 38.5 kN | Axial stiffness: 550 N/μm | ||
| BS2810FW | Shaft dia.: 28 mm | Lead: 10 mm | Ball dia.: 4.763 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 25.8 kN | Static load Coa: 58 kN | Axial stiffness: 670 N/μm | ||
| BS3206FT | Shaft dia.: 32 mm | Lead: 6 mm | Ball dia.: 3.969 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 18.3 kN | Static load Coa: 44 kN | Axial stiffness: 402 N/μm | ||
| BS3210FT | Shaft dia.: 32 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 25.8 kN | Static load Coa: 55.5 kN | Axial stiffness: 413 N/μm | ||
| BS3210FV | Shaft dia.: 32 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 45 kN | Static load Coa: 98 kN | Axial stiffness: 667 N/μm | ||
| BS3212FU | Shaft dia.: 32 mm | Lead: 12 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 31.5 kN | Static load Coa: 68 kN | Axial stiffness: 535 N/μm | ||
| BS3610FV | Shaft dia.: 36 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 35.5 kN | Static load Coa: 78.5 kN | Axial stiffness: 698 N/μm | ||
| BS4005FT | Shaft dia.: 40 mm | Lead: 5 mm | Ball dia.: 3.175 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 12.1 kN | Static load Coa: 40 kN | Axial stiffness: 471 N/μm | ||
| BS4010FS | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 8 | Dynamic load Ca: 67 kN | Static load Coa: 185 kN | Axial stiffness: 1268 N/μm | ||
| BS4010FV | Shaft dia.: 40 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 54 kN | Static load Coa: 136 kN | Axial stiffness: 836 N/μm | ||
| BS5010FW | Shaft dia.: 50 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 6 | Dynamic load Ca: 60 kN | Static load Coa: 184 kN | Axial stiffness: 1171 N/μm | ||
| BS5010FU | Shaft dia.: 50 mm | Lead: 10 mm | Ball dia.: 7.144 mm | Circulations (turns x rows): 1 x 4 | Dynamic load Ca: 50 kN | Static load Coa: 140 kN | Axial stiffness: 804 N/μm | ||
| BS5016FV | Shaft dia.: 50 mm | Lead: 16 mm | Ball dia.: 12.7 mm | Circulations (turns x rows): 1 x 5 | Dynamic load Ca: 120 kN | Static load Coa: 278 kN | Axial stiffness: 493 N/μm | ||
| BS6310FT | Shaft dia.: 63 mm | Lead: 10 mm | Ball dia.: 6.35 mm | Circulations (turns x rows): 1 x 3 | Dynamic load Ca: 38 kN | Static load Coa: 124 kN | Axial stiffness: 745 N/μm |
Need a different model, or a part not listed here? Send us your parts list →
