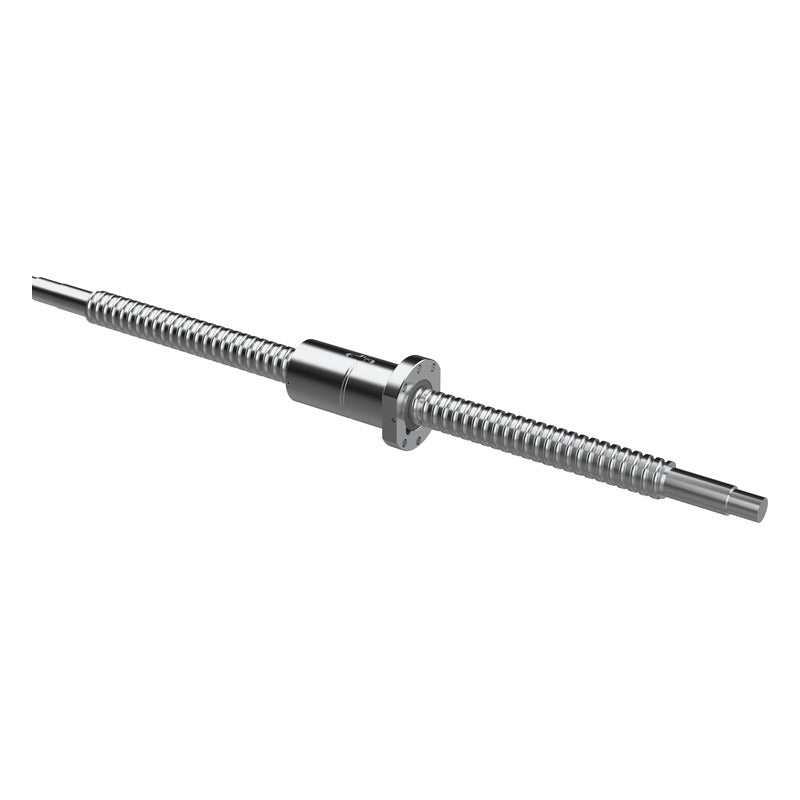

Inovance BS Precision Ball Screw, Internal Circulation for Welding Pliers

Internal-circulation precision ball screw with threaded long or round nut, dedicated to welding pliers (welding gun) actuators.

Key features

Internal circulation nut with threaded mounting
No sealing structure (per catalog note)

Specifications

Circulation	Internal
Application	Welding pliers industry
Sealing	None

BS2010LT		Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 4.763 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 13 kN \| Static load Coa: 23.4 kN \| Axial stiffness: 154 N/μm \| Nut thread: M24x1.5-6H
BS2505LS		Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 8 \| Dynamic load Ca: 22 kN \| Static load Coa: 61.5 kN \| Axial stiffness: 453 N/μm \| Nut thread: M30x1.5-6H
BS2505LX		Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 9 \| Dynamic load Ca: 24.4 kN \| Static load Coa: 69 kN \| Axial stiffness: 507 N/μm \| Nut thread: M30x1.5-6H
BS2505LR		Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 12 \| Dynamic load Ca: 31 kN \| Static load Coa: 92 kN \| Axial stiffness: 665 N/μm \| Nut thread: M30x1.5-6H
BS2510ST		Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 12.3 kN \| Static load Coa: 26.9 kN \| Axial stiffness: 180 N/μm \| Nut thread: M30x1.5-6H \|\| Variant: Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 4.763 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 15.2 kN \| Static load Coa: 31 kN \| Axial stiffness: 184 N/μm \| Nut thread: M36x1.5-6g (Type A)
BS2510LV		Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 5 \| Dynamic load Ca: 19 kN \| Static load Coa: 45 kN \| Axial stiffness: 293 N/μm \| Nut thread: M30x1.5-6H
BS2010ST		Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 11 kN \| Static load Coa: 21.5 kN \| Axial stiffness: 149 N/μm \| Nut thread: M34x1.5-6g-LH (Type A)
BS2010SU		Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 4 \| Dynamic load Ca: 14.1 kN \| Static load Coa: 28.6 kN \| Axial stiffness: 197 N/μm \| Nut thread: M33x1.5-6g (Type A)
BS2505SX		Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 9 \| Dynamic load Ca: 24.4 kN \| Static load Coa: 69 kN \| Axial stiffness: 507 N/μm \| Nut thread: M36x1.5-6g (Type A)
BS2510SV		Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 5 \| Dynamic load Ca: 19 kN \| Static load Coa: 45 kN \| Axial stiffness: 293 N/μm \| Nut thread: M42x1.5-6g (Type B)
BS3210ST		Shaft dia.: 32 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 13.6 kN \| Static load Coa: 34 kN \| Axial stiffness: 188 N/μm \| Nut thread: M42x1.5-6g (Type B)

Ball ScrewsInovance

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance BS Precision Ball Screw, Internal Circulation for Welding Pliers

Brand Inovance·Ball Screws

Available part numbers (11)

BS2010LT, BS2505LS, BS2505LX, BS2505LR, BS2510ST, BS2510LV, BS2010ST, BS2010SU, BS2505SX, BS2510SV + 1 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BS2010LT	Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 4.763 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 13 kN \| Static load Coa: 23.4 kN \| Axial stiffness: 154 N/μm \| Nut thread: M24x1.5-6H
	BS2505LS	Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 8 \| Dynamic load Ca: 22 kN \| Static load Coa: 61.5 kN \| Axial stiffness: 453 N/μm \| Nut thread: M30x1.5-6H
	BS2505LX	Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 9 \| Dynamic load Ca: 24.4 kN \| Static load Coa: 69 kN \| Axial stiffness: 507 N/μm \| Nut thread: M30x1.5-6H
	BS2505LR	Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 12 \| Dynamic load Ca: 31 kN \| Static load Coa: 92 kN \| Axial stiffness: 665 N/μm \| Nut thread: M30x1.5-6H
	BS2510ST	Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 12.3 kN \| Static load Coa: 26.9 kN \| Axial stiffness: 180 N/μm \| Nut thread: M30x1.5-6H \|\| Variant: Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 4.763 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 15.2 kN \| Static load Coa: 31 kN \| Axial stiffness: 184 N/μm \| Nut thread: M36x1.5-6g (Type A)
	BS2510LV	Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 5 \| Dynamic load Ca: 19 kN \| Static load Coa: 45 kN \| Axial stiffness: 293 N/μm \| Nut thread: M30x1.5-6H
	BS2010ST	Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 11 kN \| Static load Coa: 21.5 kN \| Axial stiffness: 149 N/μm \| Nut thread: M34x1.5-6g-LH (Type A)
	BS2010SU	Shaft dia.: 20 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 4 \| Dynamic load Ca: 14.1 kN \| Static load Coa: 28.6 kN \| Axial stiffness: 197 N/μm \| Nut thread: M33x1.5-6g (Type A)
	BS2505SX	Shaft dia.: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Circulations (turns x rows): 1 x 9 \| Dynamic load Ca: 24.4 kN \| Static load Coa: 69 kN \| Axial stiffness: 507 N/μm \| Nut thread: M36x1.5-6g (Type A)
	BS2510SV	Shaft dia.: 25 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Circulations (turns x rows): 1 x 5 \| Dynamic load Ca: 19 kN \| Static load Coa: 45 kN \| Axial stiffness: 293 N/μm \| Nut thread: M42x1.5-6g (Type B)
	BS3210ST	Shaft dia.: 32 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Circulations (turns x rows): 1 x 3 \| Dynamic load Ca: 13.6 kN \| Static load Coa: 34 kN \| Axial stiffness: 188 N/μm \| Nut thread: M42x1.5-6g (Type B)
