• Inovance H2S Series Compact PLC (20-128 I/O)
1 1

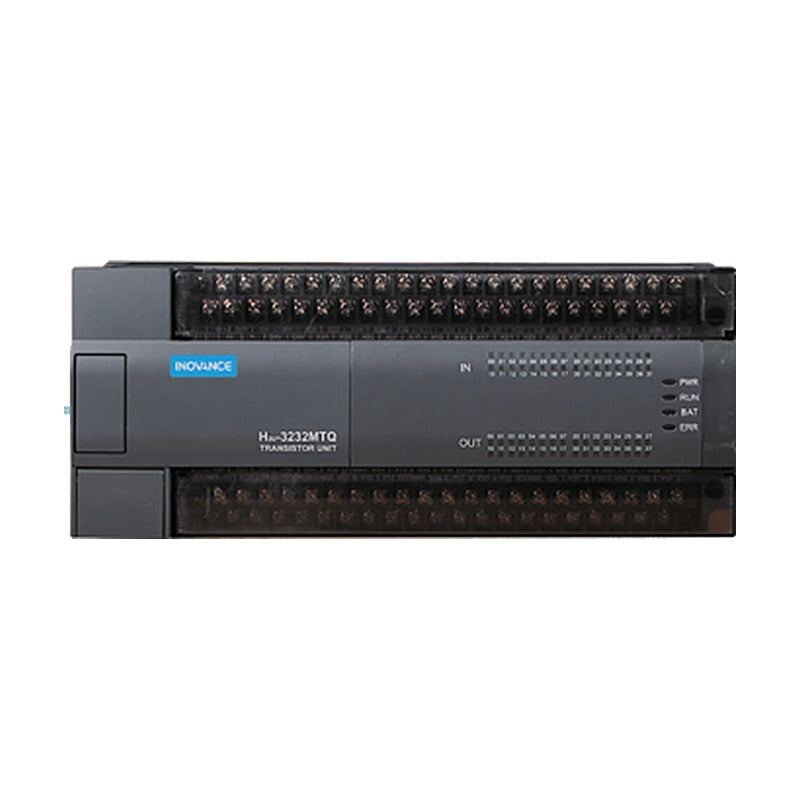

Inovance H2S Series Compact PLC (20-128 I/O)

Inovance H2S Series Compact PLC (20-128 I/O)

H2S series universal compact PLC main units with 20 to 128 I/O points in relay and transistor output versions.

Key features

  • Fourteen main units from 10/10 to 64/64 I/O
  • Relay (MR) or transistor (MT) output versions
  • Same I/O point sizes as the H2U series
  • Programmed with Inovance AutoShop

Specifications

Series H2S universal main module
Program capacity 8K steps
Data capacity 8K words
RS485 interfaces 1
Local expansion 4 special modules
CAN / Ethernet cards Not supported
Certification CE
Source Inovance Expansion Module and HMI catalogue 19120152 A01, p. 23
H2S-1010MT-XP Model: H2S-1010MT-XP | I/O: 10 DI / 10 DO | Output: Transistor
H2S-1010MR-XP Model: H2S-1010MR-XP | I/O: 10 DI / 10 DO | Output: Relay
H2S-1616MT-XP Model: H2S-1616MT-XP | I/O: 16 DI / 16 DO | Output: Transistor
H2S-1616MR-XP Model: H2S-1616MR-XP | I/O: 16 DI / 16 DO | Output: Relay
H2S-2416MT-XP Model: H2S-2416MT-XP | I/O: 24 DI / 16 DO | Output: Transistor
H2S-2416MR-XP Model: H2S-2416MR-XP | I/O: 24 DI / 16 DO | Output: Relay
H2S-3624MT-XP Model: H2S-3624MT-XP | I/O: 36 DI / 24 DO | Output: Transistor
H2S-3624MR-XP Model: H2S-3624MR-XP | I/O: 36 DI / 24 DO | Output: Relay
H2S-3232MT-XP Model: H2S-3232MT-XP | I/O: 32 DI / 32 DO | Output: Transistor
H2S-3232MR-XP Model: H2S-3232MR-XP | I/O: 32 DI / 32 DO | Output: Relay
H2S-4040MT-XP Model: H2S-4040MT-XP | I/O: 40 DI / 40 DO | Output: Transistor
H2S-4040MR-XP Model: H2S-4040MR-XP | I/O: 40 DI / 40 DO | Output: Relay
H2S-6464MT-XP Model: H2S-6464MT-XP | I/O: 64 DI / 64 DO | Output: Transistor
H2S-6464MR-XP Model: H2S-6464MR-XP | I/O: 64 DI / 64 DO | Output: Relay
PLCsInovance
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance H2S Series Compact PLC (20-128 I/O)

Brand Inovance·PLCs

Available part numbers (14)

H2S-1010MT-XP, H2S-1010MR-XP, H2S-1616MT-XP, H2S-1616MR-XP, H2S-2416MT-XP, H2S-2416MR-XP, H2S-3624MT-XP, H2S-3624MR-XP, H2S-3232MT-XP, H2S-3232MR-XP + 4 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H2S-1010MT-XPModel: H2S-1010MT-XP | I/O: 10 DI / 10 DO | Output: Transistor
H2S-1010MR-XPModel: H2S-1010MR-XP | I/O: 10 DI / 10 DO | Output: Relay
H2S-1616MT-XPModel: H2S-1616MT-XP | I/O: 16 DI / 16 DO | Output: Transistor
H2S-1616MR-XPModel: H2S-1616MR-XP | I/O: 16 DI / 16 DO | Output: Relay
H2S-2416MT-XPModel: H2S-2416MT-XP | I/O: 24 DI / 16 DO | Output: Transistor
H2S-2416MR-XPModel: H2S-2416MR-XP | I/O: 24 DI / 16 DO | Output: Relay
H2S-3624MT-XPModel: H2S-3624MT-XP | I/O: 36 DI / 24 DO | Output: Transistor
H2S-3624MR-XPModel: H2S-3624MR-XP | I/O: 36 DI / 24 DO | Output: Relay
H2S-3232MT-XPModel: H2S-3232MT-XP | I/O: 32 DI / 32 DO | Output: Transistor
H2S-3232MR-XPModel: H2S-3232MR-XP | I/O: 32 DI / 32 DO | Output: Relay
H2S-4040MT-XPModel: H2S-4040MT-XP | I/O: 40 DI / 40 DO | Output: Transistor
H2S-4040MR-XPModel: H2S-4040MR-XP | I/O: 40 DI / 40 DO | Output: Relay
H2S-6464MT-XPModel: H2S-6464MT-XP | I/O: 64 DI / 64 DO | Output: Transistor
H2S-6464MR-XPModel: H2S-6464MR-XP | I/O: 64 DI / 64 DO | Output: Relay
