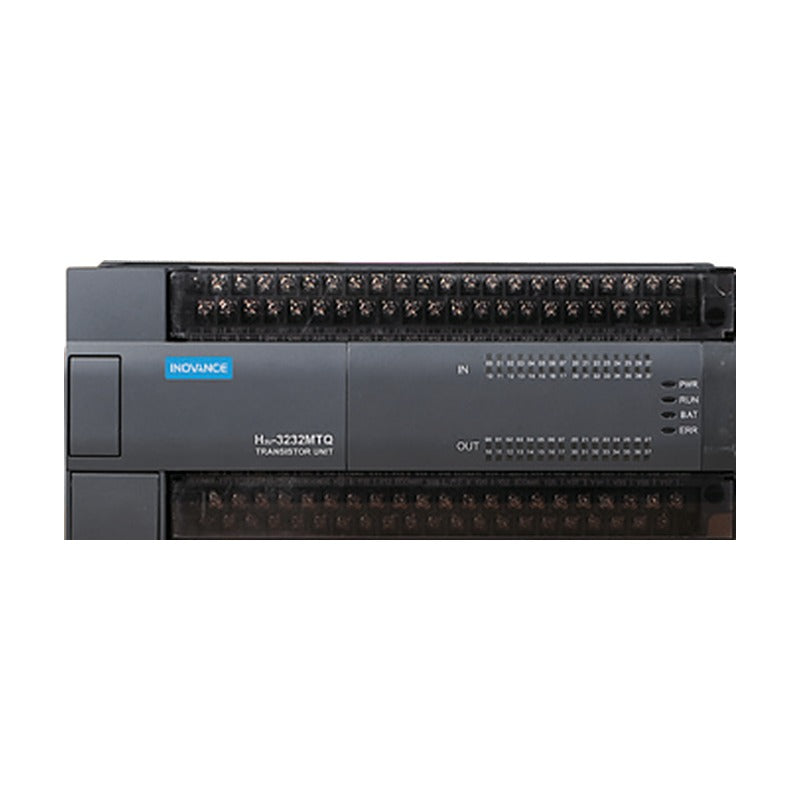

Inovance H2U Series General-Purpose Compact PLC (20-128 I/O)

Inovance H2U Series General-Purpose Compact PLC (20-128 I/O)

H2U series general-purpose compact PLCs with 20 to 128 I/O points, three serial ports, function expansion cards and up to 8 local expansion modules.

Key features

  • Main units from 10/10 to 64/64 I/O with relay or transistor outputs
  • Three 100 kHz pulse outputs (H2U-3232MTP: eight) and 60 kHz/10 kHz high-speed inputs
  • RS485 x2 and RS422 x1; CAN via H2U-CAN-BD card
  • Up to 8 local I/O and special modules; up to 32 CANlink remote modules
  • Function expansion cards for RS232/RS422/RS485, Ethernet and analog I/O

Specifications

Program capacity 16K steps
Data capacity 10K words
Retentive data 8K words
Basic instruction 100 ns
Pulse axes 3
Dimensions 130 + X x 88 x 90 mm
Source Inovance Expansion Module and HMI catalogue 19120152 A01, p. 22-23
H2U-1010MT-XP Model: H2U-1010MT-XP | I/O: 10 DI / 10 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-1010MR-XP Model: H2U-1010MR-XP | I/O: 10 DI / 10 DO | Output: Relay | High-speed output: None
H2U-1616MT-XP Model: H2U-1616MT-XP | I/O: 16 DI / 16 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-1616MR-XP Model: H2U-1616MR-XP | I/O: 16 DI / 16 DO | Output: Relay | High-speed output: None
H2U-2416MT-XP Model: H2U-2416MT-XP | I/O: 24 DI / 16 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-2416MR-XP Model: H2U-2416MR-XP | I/O: 24 DI / 16 DO | Output: Relay | High-speed output: None
H2U-3624MT-XP Model: H2U-3624MT-XP | I/O: 36 DI / 24 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-3624MR-XP Model: H2U-3624MR-XP | I/O: 36 DI / 24 DO | Output: Relay | High-speed output: None
H2U-3232MT-XP Model: H2U-3232MT-XP | I/O: 32 DI / 32 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-3232MR-XP Model: H2U-3232MR-XP | I/O: 32 DI / 32 DO | Output: Relay | High-speed output: None
H2U-3232MTP Model: H2U-3232MTP | I/O: 32 DI / 32 DO | Output: Transistor | High-speed output: 8 x 100 kHz
H2U-4040MT-XP Model: H2U-4040MT-XP | I/O: 40 DI / 40 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-4040MR-XP Model: H2U-4040MR-XP | I/O: 40 DI / 40 DO | Output: Relay | High-speed output: None
H2U-6464MT-XP Model: H2U-6464MT-XP | I/O: 64 DI / 64 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-6464MR-XP Model: H2U-6464MR-XP | I/O: 64 DI / 64 DO | Output: Relay | High-speed output: None
PLCsInovance
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance H2U Series General-Purpose Compact PLC (20-128 I/O)

Brand Inovance·PLCs

Available part numbers (15)

H2U-1010MT-XP, H2U-1010MR-XP, H2U-1616MT-XP, H2U-1616MR-XP, H2U-2416MT-XP, H2U-2416MR-XP, H2U-3624MT-XP, H2U-3624MR-XP, H2U-3232MT-XP, H2U-3232MR-XP + 5 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H2U-1010MT-XPModel: H2U-1010MT-XP | I/O: 10 DI / 10 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-1010MR-XPModel: H2U-1010MR-XP | I/O: 10 DI / 10 DO | Output: Relay | High-speed output: None
H2U-1616MT-XPModel: H2U-1616MT-XP | I/O: 16 DI / 16 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-1616MR-XPModel: H2U-1616MR-XP | I/O: 16 DI / 16 DO | Output: Relay | High-speed output: None
H2U-2416MT-XPModel: H2U-2416MT-XP | I/O: 24 DI / 16 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-2416MR-XPModel: H2U-2416MR-XP | I/O: 24 DI / 16 DO | Output: Relay | High-speed output: None
H2U-3624MT-XPModel: H2U-3624MT-XP | I/O: 36 DI / 24 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-3624MR-XPModel: H2U-3624MR-XP | I/O: 36 DI / 24 DO | Output: Relay | High-speed output: None
H2U-3232MT-XPModel: H2U-3232MT-XP | I/O: 32 DI / 32 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-3232MR-XPModel: H2U-3232MR-XP | I/O: 32 DI / 32 DO | Output: Relay | High-speed output: None
H2U-3232MTPModel: H2U-3232MTP | I/O: 32 DI / 32 DO | Output: Transistor | High-speed output: 8 x 100 kHz
H2U-4040MT-XPModel: H2U-4040MT-XP | I/O: 40 DI / 40 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-4040MR-XPModel: H2U-4040MR-XP | I/O: 40 DI / 40 DO | Output: Relay | High-speed output: None
H2U-6464MT-XPModel: H2U-6464MT-XP | I/O: 64 DI / 64 DO | Output: Transistor | High-speed output: 3 x 100 kHz
H2U-6464MR-XPModel: H2U-6464MR-XP | I/O: 64 DI / 64 DO | Output: Relay | High-speed output: None
