Inovance H2U Series Expansion Modules and Option Cards

Inovance H2U Series Expansion Modules and Option Cards

Local expansion modules, CANlink remote expansion modules and function option cards for Inovance H2U/H2S (and H1U/H3U where applicable) compact PLCs.

Key features

  • 21 local modules: digital, relay, analog, temperature and high-speed counter
  • 12 CANlink remote expansion modules (DR/R versions)
  • BD function cards for RS232, RS422, RS485, CAN, Ethernet and analog I/O
  • Battery, extension cable and differential-to-collector converter options

Specifications

Host PLCs H2U / H2S (remote modules also H1U/H3U via CANlink)
Local modules per CPU Up to 8
Remote modules Up to 62 via CANlink 3.0
Remote supply 24 V DC
Mounting 35 mm DIN rail
Source Inovance Expansion Module and HMI catalogue 19120152 A01, p. 21, 24, 41
H2U-0016ETN Model: H2U-0016ETN | Category: Local expansion module | Description: 16 transistor outputs
H2U-0016ERN Model: H2U-0016ERN | Category: Local expansion module | Description: 16 relay outputs
H2U-4AD Model: H2U-4AD | Category: Local expansion module | Description: 4 analog inputs
H2U-4DA Model: H2U-4DA | Category: Local expansion module | Description: 4 analog outputs
H2U-1600ENN Model: H2U-1600ENN | Category: Local expansion module | Description: 16 digital inputs
H2U-6AM Model: H2U-6AM | Category: Local expansion module | Description: 4 current AI + 2 AO

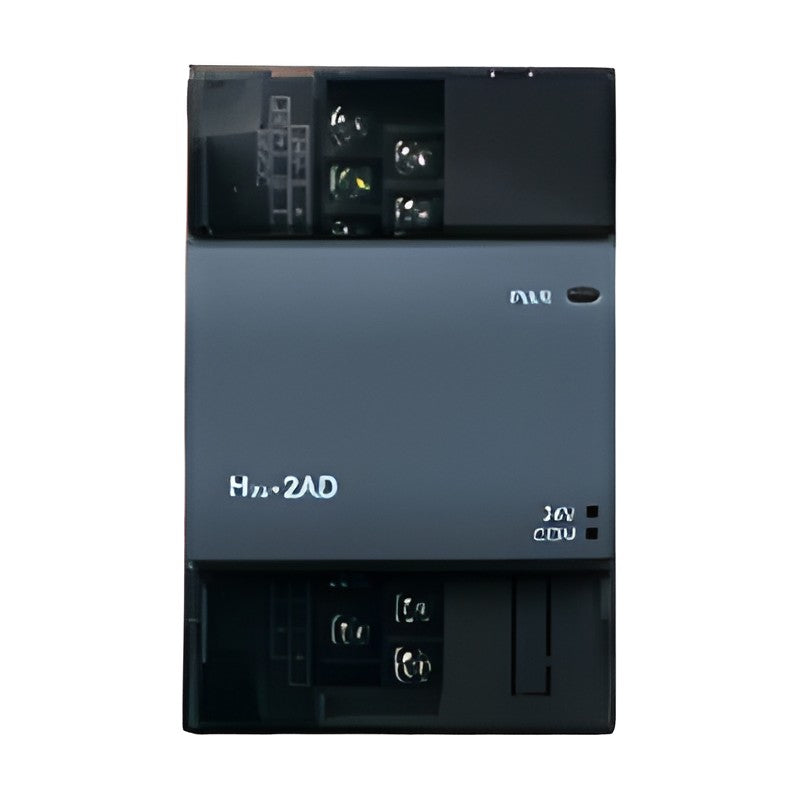

H2U-2AD Model: H2U-2AD | Category: Local expansion module | Description: 2 analog inputs
H2U-2DA Model: H2U-2DA | Category: Local expansion module | Description: 2 analog outputs
H2U-4AM Model: H2U-4AM | Category: Local expansion module | Description: 2 AI + 2 AO
H2U-6CM Model: H2U-6CM | Category: Local expansion module | Description: 4 voltage AI + 2 AO
H2U-4PT-XP Model: H2U-4PT-XP | Category: Local expansion module | Description: 4 PT temperature inputs
H2U-4TC-XP Model: H2U-4TC-XP | Category: Local expansion module | Description: 4 TC temperature inputs
H2U-0808ERN Model: H2U-0808ERN | Category: Local expansion module | Description: 8 DI + 8 relay outputs
H2U-0808ETN Model: H2U-0808ETN | Category: Local expansion module | Description: 8 DI + 8 transistor outputs
H2U-0008ERN Model: H2U-0008ERN | Category: Local expansion module | Description: 8 relay outputs
H2U-0008ETN Model: H2U-0008ETN | Category: Local expansion module | Description: 8 transistor outputs
H2U-0800ENN Model: H2U-0800ENN | Category: Local expansion module | Description: 8 digital inputs
H2U-0404ERN Model: H2U-0404ERN | Category: Local expansion module | Description: 4 DI + 4 relay outputs
H2U-0404ETN Model: H2U-0404ETN | Category: Local expansion module | Description: 4 DI + 4 transistor outputs
H2U-4HC Model: H2U-4HC | Category: Local expansion module | Description: 4-ch AB-phase high-speed counter
H2U-4PT-XP-QX Model: H2U-4PT-XP-QX | Category: Local expansion module | Description: 4 temperature inputs (NTC)
H2U-0016ETDR Model: H2U-0016ETDR | Category: CANlink remote module | Description: 16 transistor outputs
H2U-0016ERDR Model: H2U-0016ERDR | Category: CANlink remote module | Description: 16 relay outputs
H2U-1600ENDR Model: H2U-1600ENDR | Category: CANlink remote module | Description: 16 digital inputs
H2U-4ADR Model: H2U-4ADR | Category: CANlink remote module | Description: 4 analog inputs
H2U-4DAR Model: H2U-4DAR | Category: CANlink remote module | Description: 4 analog outputs
H2U-2ADR Model: H2U-2ADR | Category: CANlink remote module | Description: 2 analog inputs
H2U-4AMR Model: H2U-4AMR | Category: CANlink remote module | Description: 2 AI + 2 AO
H2U-6AMR Model: H2U-6AMR | Category: CANlink remote module | Description: 4 current AI + 2 AO
H2U-6CMR Model: H2U-6CMR | Category: CANlink remote module | Description: 4 voltage AI + 2 AO
H2U-4PTR-XP Model: H2U-4PTR-XP | Category: CANlink remote module | Description: 4 PT temperature inputs
H2U-4TCR-XP Model: H2U-4TCR-XP | Category: CANlink remote module | Description: 4 TC temperature inputs
H2U-0808ERDR Model: H2U-0808ERDR | Category: CANlink remote module | Description: 8 DI + 8 relay outputs
H2U-422-BD Model: H2U-422-BD | Category: Controller option | Description: RS422 communication card
H2U-232-BD Model: H2U-232-BD | Category: Controller option | Description: RS232 communication card
H2U-6B-BD Model: H2U-6B-BD | Category: Controller option | Description: 4 current AI + 2 AO card
H2U-6A-BD Model: H2U-6A-BD | Category: Controller option | Description: 2 V + 2 I inputs + 2 AO card
H2U-CAN-BD Model: H2U-CAN-BD | Category: Controller option | Description: Isolated CAN communication card
H2U-485IF-BD Model: H2U-485IF-BD | Category: Controller option | Description: Isolated RS485 card
H2U-ENET-BD Model: H2U-ENET-BD | Category: Controller option | Description: Ethernet communication card
H2U-EXP-CAB Model: H2U-EXP-CAB | Category: Controller option | Description: Expansion module extension cable
H2U-BAT Model: H2U-BAT | Category: Controller option | Description: PLC battery
H2U-2DC Model: H2U-2DC | Category: Controller option | Description: Differential-to-collector converter
PLC Expansion ModulesInovance
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance H2U Series Expansion Modules and Option Cards

Brand Inovance·PLC Expansion Modules

Available part numbers (43)

H2U-0016ETN, H2U-0016ERN, H2U-4AD, H2U-4DA, H2U-1600ENN, H2U-6AM, H2U-2AD, H2U-2DA, H2U-4AM, H2U-6CM + 33 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H2U-0016ETNModel: H2U-0016ETN | Category: Local expansion module | Description: 16 transistor outputs
H2U-0016ERNModel: H2U-0016ERN | Category: Local expansion module | Description: 16 relay outputs
H2U-4ADModel: H2U-4AD | Category: Local expansion module | Description: 4 analog inputs
H2U-4DAModel: H2U-4DA | Category: Local expansion module | Description: 4 analog outputs
H2U-1600ENNModel: H2U-1600ENN | Category: Local expansion module | Description: 16 digital inputs
H2U-6AMModel: H2U-6AM | Category: Local expansion module | Description: 4 current AI + 2 AO
H2U-2ADModel: H2U-2AD | Category: Local expansion module | Description: 2 analog inputs
H2U-2DAModel: H2U-2DA | Category: Local expansion module | Description: 2 analog outputs
H2U-4AMModel: H2U-4AM | Category: Local expansion module | Description: 2 AI + 2 AO
H2U-6CMModel: H2U-6CM | Category: Local expansion module | Description: 4 voltage AI + 2 AO
H2U-4PT-XPModel: H2U-4PT-XP | Category: Local expansion module | Description: 4 PT temperature inputs
H2U-4TC-XPModel: H2U-4TC-XP | Category: Local expansion module | Description: 4 TC temperature inputs
H2U-0808ERNModel: H2U-0808ERN | Category: Local expansion module | Description: 8 DI + 8 relay outputs
H2U-0808ETNModel: H2U-0808ETN | Category: Local expansion module | Description: 8 DI + 8 transistor outputs
H2U-0008ERNModel: H2U-0008ERN | Category: Local expansion module | Description: 8 relay outputs
H2U-0008ETNModel: H2U-0008ETN | Category: Local expansion module | Description: 8 transistor outputs
H2U-0800ENNModel: H2U-0800ENN | Category: Local expansion module | Description: 8 digital inputs
H2U-0404ERNModel: H2U-0404ERN | Category: Local expansion module | Description: 4 DI + 4 relay outputs
H2U-0404ETNModel: H2U-0404ETN | Category: Local expansion module | Description: 4 DI + 4 transistor outputs
H2U-4HCModel: H2U-4HC | Category: Local expansion module | Description: 4-ch AB-phase high-speed counter
H2U-4PT-XP-QXModel: H2U-4PT-XP-QX | Category: Local expansion module | Description: 4 temperature inputs (NTC)
H2U-0016ETDRModel: H2U-0016ETDR | Category: CANlink remote module | Description: 16 transistor outputs
H2U-0016ERDRModel: H2U-0016ERDR | Category: CANlink remote module | Description: 16 relay outputs
H2U-1600ENDRModel: H2U-1600ENDR | Category: CANlink remote module | Description: 16 digital inputs
H2U-4ADRModel: H2U-4ADR | Category: CANlink remote module | Description: 4 analog inputs
H2U-4DARModel: H2U-4DAR | Category: CANlink remote module | Description: 4 analog outputs
H2U-2ADRModel: H2U-2ADR | Category: CANlink remote module | Description: 2 analog inputs
H2U-4AMRModel: H2U-4AMR | Category: CANlink remote module | Description: 2 AI + 2 AO
H2U-6AMRModel: H2U-6AMR | Category: CANlink remote module | Description: 4 current AI + 2 AO
H2U-6CMRModel: H2U-6CMR | Category: CANlink remote module | Description: 4 voltage AI + 2 AO
H2U-4PTR-XPModel: H2U-4PTR-XP | Category: CANlink remote module | Description: 4 PT temperature inputs
H2U-4TCR-XPModel: H2U-4TCR-XP | Category: CANlink remote module | Description: 4 TC temperature inputs
H2U-0808ERDRModel: H2U-0808ERDR | Category: CANlink remote module | Description: 8 DI + 8 relay outputs
H2U-422-BDModel: H2U-422-BD | Category: Controller option | Description: RS422 communication card
H2U-232-BDModel: H2U-232-BD | Category: Controller option | Description: RS232 communication card
H2U-6B-BDModel: H2U-6B-BD | Category: Controller option | Description: 4 current AI + 2 AO card
H2U-6A-BDModel: H2U-6A-BD | Category: Controller option | Description: 2 V + 2 I inputs + 2 AO card
H2U-CAN-BDModel: H2U-CAN-BD | Category: Controller option | Description: Isolated CAN communication card
H2U-485IF-BDModel: H2U-485IF-BD | Category: Controller option | Description: Isolated RS485 card
H2U-ENET-BDModel: H2U-ENET-BD | Category: Controller option | Description: Ethernet communication card
H2U-EXP-CABModel: H2U-EXP-CAB | Category: Controller option | Description: Expansion module extension cable
H2U-BATModel: H2U-BAT | Category: Controller option | Description: PLC battery
H2U-2DCModel: H2U-2DC | Category: Controller option | Description: Differential-to-collector converter
