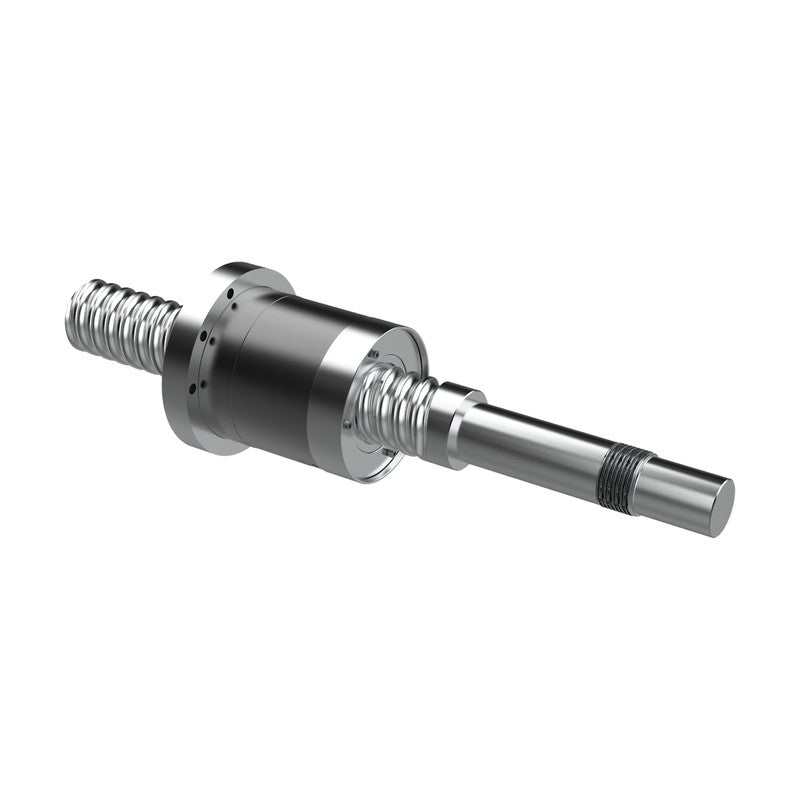

Inovance HSL Series High-Lead Heavy-Load Ball Screw

Inovance HSL Series High-Lead Heavy-Load Ball Screw

High-lead, high-load ball screw with end-guided circulation for high-speed feed up to 2,000 mm/s.

Key features

  • End-guided circulation without protruding parts; good running balance
  • Permissible d·n ≤ 120,000
  • High-sealing ring retains grease and keeps dust out
  • Accuracy class Ct5/Ct7 (JIS B 1192); axial clearance below 0.05 mm

Specifications

Accuracy class Ct5 / Ct7 (JIS B 1192)
Axial clearance < 0.05 mm
Operating temperature < 60 °C
Thread direction Right-hand (left-hand on request)
HSL5032F2P Shaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 119 kN | Static load Coa: 284 kN | Permissible axial load: 40.2 kN || Variant: Shaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 172 kN | Static load Coa: 375 kN | Permissible axial load: 50 kN
HSL5032F2Q Shaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 257 kN | Static load Coa: 600 kN | Permissible axial load: 82.3 kN
HSL5040F2P Shaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 170 kN | Static load Coa: 375 kN | Permissible axial load: 52.4 kN
HSL5040F2Q Shaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 253 kN | Static load Coa: 595 kN | Permissible axial load: 82.3 kN
HSL5040F2M Shaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 330 kN | Static load Coa: 815 kN | Permissible axial load: 114.2 kN
HSL5050F2Q Shaft dia.: 50 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 249 kN | Static load Coa: 585 kN | Permissible axial load: 84.8 kN
HSL5050F2M Shaft dia.: 50 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 325 kN | Static load Coa: 800 kN | Permissible axial load: 114.2 kN
HSL6332F2Q Shaft dia.: 63 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 291 kN | Static load Coa: 755 kN | Permissible axial load: 105.8 kN
HSL6332F2M Shaft dia.: 63 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 380 kN | Static load Coa: 1040 kN | Permissible axial load: 147 kN
HSL6340F2P Shaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 258 kN | Static load Coa: 590 kN | Permissible axial load: 78.4 kN
HSL6340F2Q Shaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 385 kN | Static load Coa: 935 kN | Permissible axial load: 127.4 kN
HSL6340F2M Shaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 505 kN | Static load Coa: 1280 kN | Permissible axial load: 176.4 kN
HSL8040F2Q Shaft dia.: 80 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 435 kN | Static load Coa: 1180 kN | Permissible axial load: 167.6 kN
HSL8040F2M Shaft dia.: 80 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 570 kN | Static load Coa: 1620 kN | Permissible axial load: 231.3 kN
HSL8050F2Q Shaft dia.: 80 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 560 kN | Static load Coa: 1460 kN | Permissible axial load: 195.0 kN
HSL8050F2M Shaft dia.: 80 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 730 kN | Static load Coa: 2000 kN | Permissible axial load: 266.6 kN
HSL12570F2Z Shaft dia.: 125 mm | Lead: 70 mm | Circulations (turns x rows x pieces): 4.7 x 1 x 2 | Dynamic load Ca: 1120 kN | Static load Coa: 4000 kN | Permissible axial load: 540 kN
Ball ScrewsInovance
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance HSL Series High-Lead Heavy-Load Ball Screw

Brand Inovance·Ball Screws

Available part numbers (17)

HSL5032F2P, HSL5032F2Q, HSL5040F2P, HSL5040F2Q, HSL5040F2M, HSL5050F2Q, HSL5050F2M, HSL6332F2Q, HSL6332F2M, HSL6340F2P + 7 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSL5032F2PShaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 119 kN | Static load Coa: 284 kN | Permissible axial load: 40.2 kN || Variant: Shaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 172 kN | Static load Coa: 375 kN | Permissible axial load: 50 kN
HSL5032F2QShaft dia.: 50 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 257 kN | Static load Coa: 600 kN | Permissible axial load: 82.3 kN
HSL5040F2PShaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 170 kN | Static load Coa: 375 kN | Permissible axial load: 52.4 kN
HSL5040F2QShaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 253 kN | Static load Coa: 595 kN | Permissible axial load: 82.3 kN
HSL5040F2MShaft dia.: 50 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 330 kN | Static load Coa: 815 kN | Permissible axial load: 114.2 kN
HSL5050F2QShaft dia.: 50 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 249 kN | Static load Coa: 585 kN | Permissible axial load: 84.8 kN
HSL5050F2MShaft dia.: 50 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 325 kN | Static load Coa: 800 kN | Permissible axial load: 114.2 kN
HSL6332F2QShaft dia.: 63 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 291 kN | Static load Coa: 755 kN | Permissible axial load: 105.8 kN
HSL6332F2MShaft dia.: 63 mm | Lead: 32 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 380 kN | Static load Coa: 1040 kN | Permissible axial load: 147 kN
HSL6340F2PShaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 1.7 x 1 x 2 | Dynamic load Ca: 258 kN | Static load Coa: 590 kN | Permissible axial load: 78.4 kN
HSL6340F2QShaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 385 kN | Static load Coa: 935 kN | Permissible axial load: 127.4 kN
HSL6340F2MShaft dia.: 63 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 505 kN | Static load Coa: 1280 kN | Permissible axial load: 176.4 kN
HSL8040F2QShaft dia.: 80 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 435 kN | Static load Coa: 1180 kN | Permissible axial load: 167.6 kN
HSL8040F2MShaft dia.: 80 mm | Lead: 40 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 570 kN | Static load Coa: 1620 kN | Permissible axial load: 231.3 kN
HSL8050F2QShaft dia.: 80 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 2.7 x 1 x 2 | Dynamic load Ca: 560 kN | Static load Coa: 1460 kN | Permissible axial load: 195.0 kN
HSL8050F2MShaft dia.: 80 mm | Lead: 50 mm | Circulations (turns x rows x pieces): 3.7 x 1 x 2 | Dynamic load Ca: 730 kN | Static load Coa: 2000 kN | Permissible axial load: 266.6 kN
HSL12570F2ZShaft dia.: 125 mm | Lead: 70 mm | Circulations (turns x rows x pieces): 4.7 x 1 x 2 | Dynamic load Ca: 1120 kN | Static load Coa: 4000 kN | Permissible axial load: 540 kN
