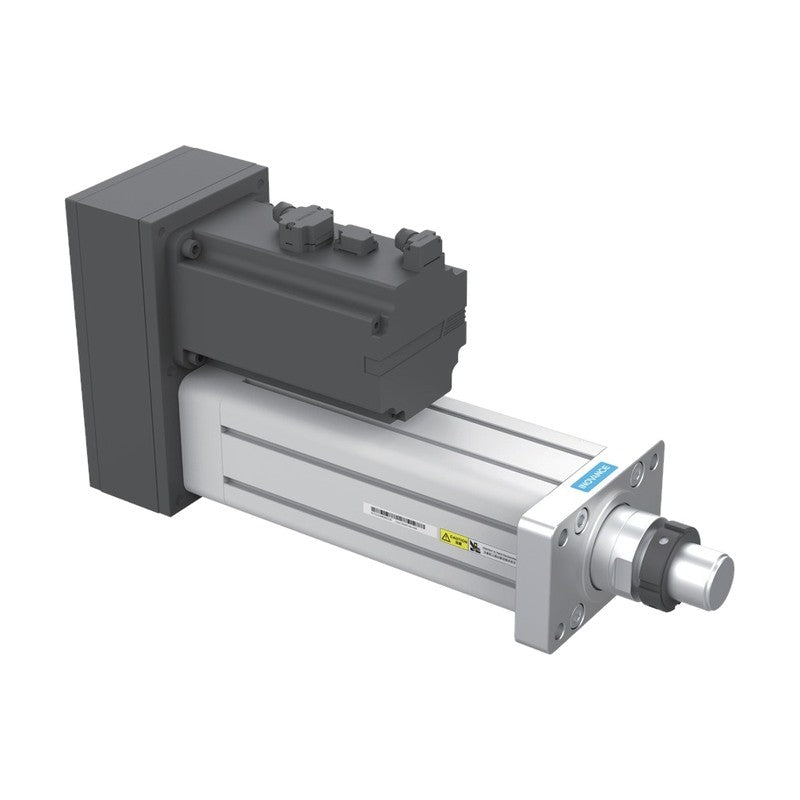

Inovance LY Series Lead Screw-Driven Rod-Type Electric Cylinder

Inovance LY Series Lead Screw-Driven Rod-Type Electric Cylinder

Rod-type ball screw electric cylinder (servo press/push-pull actuator) covering thrust from 0.5 kN to 400 kN.

Key features

  • Ball screw-driven piston rod with anti-rotation (±0.3° for LY40)
  • Repeatability ±0.02 mm
  • Motor direct-connected (inline) or connected down via timing pulley/reducer
  • Mounting styles: front/rear flange, horizontal, trunnion, hinged support, guide pillar, front lock, backpack
  • Rod ends: internal/external thread, rod end bearing, U-shape hinge, I-shape joint
  • Magnetic switches (NPN/PNP) or proximity switches for large sizes

Specifications

Drive Ball screw, piston rod
Repeatability ±0.02 mm
Motor position S: direct connected, D: connected down (folded)
Mounting FA, DA, CA, EA, JA, DL, SA, HL
Rod end IS internal thread, OS external thread, Y rod end bearing, U U-hinge, I I-joint
Travel step 50 mm
Options Brake: none or with brake; Drive: SV660P (VP) or SV660N (VN) servo drive
Inovance LY Series Lead Screw-Driven Rod-Type Electric Cylinder
LY40 Body width: 40 mm | Motor power: 50-200 W | Ball screw: ø12 mm | Lead: 4/5 mm | Effective travel: 50-300 mm | Max. thrust: 0.5 kN | Max. speed: 250 mm/s
LY50 Body width: 53 mm | Motor power: 200-400 W | Ball screw: ø12 mm | Lead: 5/10 mm | Effective travel: 50-400 mm | Max. thrust: 1.5 kN | Max. speed: 500 mm/s
LY65 Body width: 61 mm | Motor power: 400-750 W | Ball screw: ø16 mm | Lead: 5/10/16/20 mm | Effective travel: 50-600 mm | Max. thrust: 5 kN | Max. speed: 800 mm/s
LY75 Body width: 75 mm | Motor power: 400-750 W | Ball screw: ø20 mm | Lead: 5/10/20 mm | Effective travel: 50-800 mm | Max. thrust: 8 kN | Max. speed: 800 mm/s
LY80 Body width: 80 mm | Motor power: 750-1,000 W | Ball screw: ø25 mm | Lead: 5/10/20 mm | Effective travel: 50-1,000 mm | Max. thrust: 15 kN | Max. speed: 800 mm/s
LY94 Body width: 94 mm | Motor power: 1,000-1,500 W | Ball screw: ø32 mm | Lead: 5/10/20/32 mm | Effective travel: 50-1,200 mm | Max. thrust: 25 kN | Max. speed: 800 mm/s
LY110 Body width: 112 mm | Motor power: 1,800-7,500 W | Ball screw: ø40 mm | Lead: 5/10/20/40 mm | Effective travel: 50-1,500 mm | Max. thrust: 50 kN | Max. speed: 800 mm/s
LY135 Body width: 134 mm | Motor power: 1,800-7,500 W | Ball screw: ø50 mm | Lead: 10/20 mm | Effective travel: 50-1,800 mm | Max. thrust: 100 kN | Max. speed: 300 mm/s
LY140 Body width: ø132 mm | Motor power: 7,500-11,800 W | Ball screw: ø50 mm | Lead: 10/20 mm | Effective travel: 50-1,800 mm | Max. thrust: 130 kN | Max. speed: 300 mm/s
LY180 Body width: ø180 mm | Motor power: 7,500-18,100 W | Ball screw: ø63 mm | Lead: 20 mm | Effective travel: 50-2,000 mm | Max. thrust: 200 kN | Max. speed: 250 mm/s
LY245 Body width: ø210 mm | Motor power: 7,500-27,000 W | Ball screw: ø80 mm | Lead: 20 mm | Effective travel: 50-2,400 mm | Max. thrust: 400 kN | Max. speed: 200-250 mm/s
