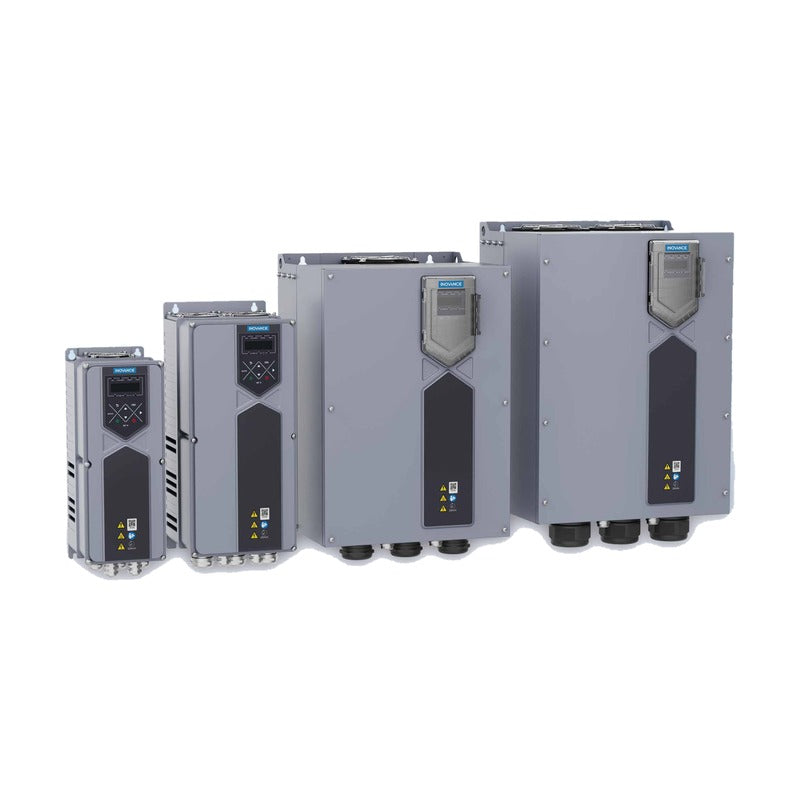

Inovance MD520-IP55 Series High Protection AC Drive (400 V, 7.5-90 kW)

Inovance MD520-IP55 Series High Protection AC Drive (400 V, 7.5-90 kW)

The Inovance MD520-IP55-INT is an IP55 high-protection AC drive on the MD520 platform for cabinet-free installation in dusty, oily and humid environments.

Key features

  • IP55 all-metal enclosure with independent air duct
  • Built-in DC reactor and C3 EMC filter on all models
  • STO function and built-in braking unit up to 75 kW
  • Drives IM, PMSM and synchronous reluctance motors (SVC, V/f)
  • Speed range 1:500, torque accuracy +/-3%
  • Enhanced multi-layer conformal coating

Specifications

Series MD520-IP55
Input 3-phase 380-480 V, 50/60 Hz
Control SVC, V/f
Max. output frequency 599 Hz
Overload 150% 60 s (heavy load)
Ingress protection IP55 / UL Type 1
Efficiency class IE2
STO Yes (all models)
Source Inovance MD520-IP55-INT brochure 19120621 A00, p. 3-7
MD520-4T7.5BS-T-IP55-INT Model: MD520-4T7.5BS-T-IP55-INT | Power HD: 7.5 kW | Output HD: 17 A | Structure: T1 | Braking unit: Built-in | Product code: 0101E445
MD520-4T11BS-T-IP55-INT Model: MD520-4T11BS-T-IP55-INT | Power HD: 11 kW | Output HD: 25 A | Structure: T1 | Braking unit: Built-in | Product code: 0101E443
MD520-4T15BS-T-IP55-INT Model: MD520-4T15BS-T-IP55-INT | Power HD: 15 kW | Output HD: 32 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E442
MD520-4T18.5BS-T-IP55-INT Model: MD520-4T18.5BS-T-IP55-INT | Power HD: 18.5 kW | Output HD: 37 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E446
MD520-4T22BS-T-IP55-INT Model: MD520-4T22BS-T-IP55-INT | Power HD: 22 kW | Output HD: 45 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E449
MD520-4T30BS-T-IP55-INT Model: MD520-4T30BS-T-IP55-INT | Power HD: 30 kW | Output HD: 60 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E448
MD520-4T37BS-T-IP55-INT Model: MD520-4T37BS-T-IP55-INT | Power HD: 37 kW | Output HD: 75 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E451
MD520-4T45BS-T-IP55-INT Model: MD520-4T45BS-T-IP55-INT | Power HD: 45 kW | Output HD: 91 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E444
MD520-4T55BS-T-IP55-INT Model: MD520-4T55BS-T-IP55-INT | Power HD: 55 kW | Output HD: 112 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E441
MD520-4T75BS-T-IP55-INT Model: MD520-4T75BS-T-IP55-INT | Power HD: 75 kW | Output HD: 150 A | Structure: T4 | Braking unit: Built-in | Product code: 0101E447
MD520-4T90S-T-IP55-INT Model: MD520-4T90S-T-IP55-INT | Power HD: 90 kW | Output HD: 176 A | Structure: T4 | Braking unit: External MDBUN-60 | Product code: 0101E450
AC DrivesInovance
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance MD520-IP55 Series High Protection AC Drive (400 V, 7.5-90 kW)

Brand Inovance·AC Drives

Available part numbers (11)

MD520-4T7.5BS-T-IP55-INT, MD520-4T11BS-T-IP55-INT, MD520-4T15BS-T-IP55-INT, MD520-4T18.5BS-T-IP55-INT, MD520-4T22BS-T-IP55-INT, MD520-4T30BS-T-IP55-INT, MD520-4T37BS-T-IP55-INT, MD520-4T45BS-T-IP55-INT, MD520-4T55BS-T-IP55-INT, MD520-4T75BS-T-IP55-INT + 1 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MD520-4T7.5BS-T-IP55-INTModel: MD520-4T7.5BS-T-IP55-INT | Power HD: 7.5 kW | Output HD: 17 A | Structure: T1 | Braking unit: Built-in | Product code: 0101E445
MD520-4T11BS-T-IP55-INTModel: MD520-4T11BS-T-IP55-INT | Power HD: 11 kW | Output HD: 25 A | Structure: T1 | Braking unit: Built-in | Product code: 0101E443
MD520-4T15BS-T-IP55-INTModel: MD520-4T15BS-T-IP55-INT | Power HD: 15 kW | Output HD: 32 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E442
MD520-4T18.5BS-T-IP55-INTModel: MD520-4T18.5BS-T-IP55-INT | Power HD: 18.5 kW | Output HD: 37 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E446
MD520-4T22BS-T-IP55-INTModel: MD520-4T22BS-T-IP55-INT | Power HD: 22 kW | Output HD: 45 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E449
MD520-4T30BS-T-IP55-INTModel: MD520-4T30BS-T-IP55-INT | Power HD: 30 kW | Output HD: 60 A | Structure: T2 | Braking unit: Built-in | Product code: 0101E448
MD520-4T37BS-T-IP55-INTModel: MD520-4T37BS-T-IP55-INT | Power HD: 37 kW | Output HD: 75 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E451
MD520-4T45BS-T-IP55-INTModel: MD520-4T45BS-T-IP55-INT | Power HD: 45 kW | Output HD: 91 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E444
MD520-4T55BS-T-IP55-INTModel: MD520-4T55BS-T-IP55-INT | Power HD: 55 kW | Output HD: 112 A | Structure: T3 | Braking unit: Built-in | Product code: 0101E441
MD520-4T75BS-T-IP55-INTModel: MD520-4T75BS-T-IP55-INT | Power HD: 75 kW | Output HD: 150 A | Structure: T4 | Braking unit: Built-in | Product code: 0101E447
MD520-4T90S-T-IP55-INTModel: MD520-4T90S-T-IP55-INT | Power HD: 90 kW | Output HD: 176 A | Structure: T4 | Braking unit: External MDBUN-60 | Product code: 0101E450
