• IZAR 53437 Drill Tap
1 1

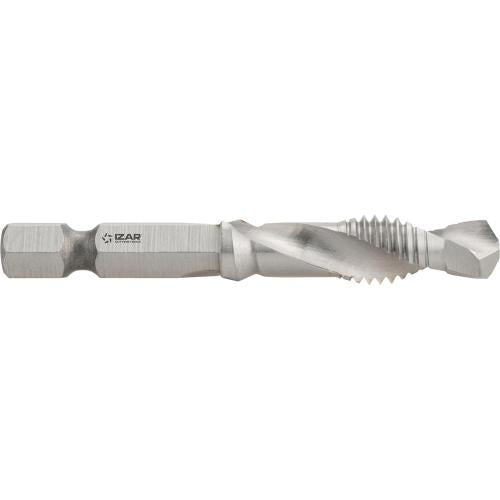

IZAR 53437 Drill Tap

IZAR 53437 Drill Tap

IZAR 53437 Drill Tap combines drilling and tapping into a single cutting operation, sourced direct from Korea.

Key features

  • This type of combination tool is commonly used in metalworking and fabrication environments where threading holes in one pass reduces cycle time and tool changes on CNC machines or drill presses

Specifications

Shank 6.35
329-0376 53437 | M3 | Spec: M3x0.5 | Overall Length: 52 | Flute Length: 8.1 | Shank: 6.35 | Thread Length: 8.9
329-0385 53449 | M4 | Spec: M4x0.7 | Overall Length: 52 | Flute Length: 8.6 | Shank: 6.35 | Thread Length: 8.9
329-0394 53458 | M5 | Spec: M5x0.8 | Overall Length: 56 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-0400 53463 | M6 | Spec: M6x1.0 | Overall Length: 56 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-0419 53466 | M8 | Spec: M8x1.25 | Overall Length: 57 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-0428 53469 | M10 | Spec: M10x1.5 | Overall Length: 58 | Flute Length: 9.6 | Shank: 6.35 | Thread Length: 14
329-0437 53472 | M12 | Spec: M12x1.75 | Overall Length: 69 | Flute Length: 12.7 | Shank: 6.35 | Thread Length: 14
Drills & Drill SetsIZAR
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IZAR 53437 Drill Tap

Brand IZAR·Drills & Drill Sets

Available part numbers (7)

329-0376, 329-0385, 329-0394, 329-0400, 329-0419, 329-0428, 329-0437

How to order

Send the IZAR part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
329-037653437 | M3 | Spec: M3x0.5 | Overall Length: 52 | Flute Length: 8.1 | Shank: 6.35 | Thread Length: 8.9
329-038553449 | M4 | Spec: M4x0.7 | Overall Length: 52 | Flute Length: 8.6 | Shank: 6.35 | Thread Length: 8.9
329-039453458 | M5 | Spec: M5x0.8 | Overall Length: 56 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-040053463 | M6 | Spec: M6x1.0 | Overall Length: 56 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-041953466 | M8 | Spec: M8x1.25 | Overall Length: 57 | Flute Length: 8.9 | Shank: 6.35 | Thread Length: 11.9
329-042853469 | M10 | Spec: M10x1.5 | Overall Length: 58 | Flute Length: 9.6 | Shank: 6.35 | Thread Length: 14
329-043753472 | M12 | Spec: M12x1.75 | Overall Length: 69 | Flute Length: 12.7 | Shank: 6.35 | Thread Length: 14
