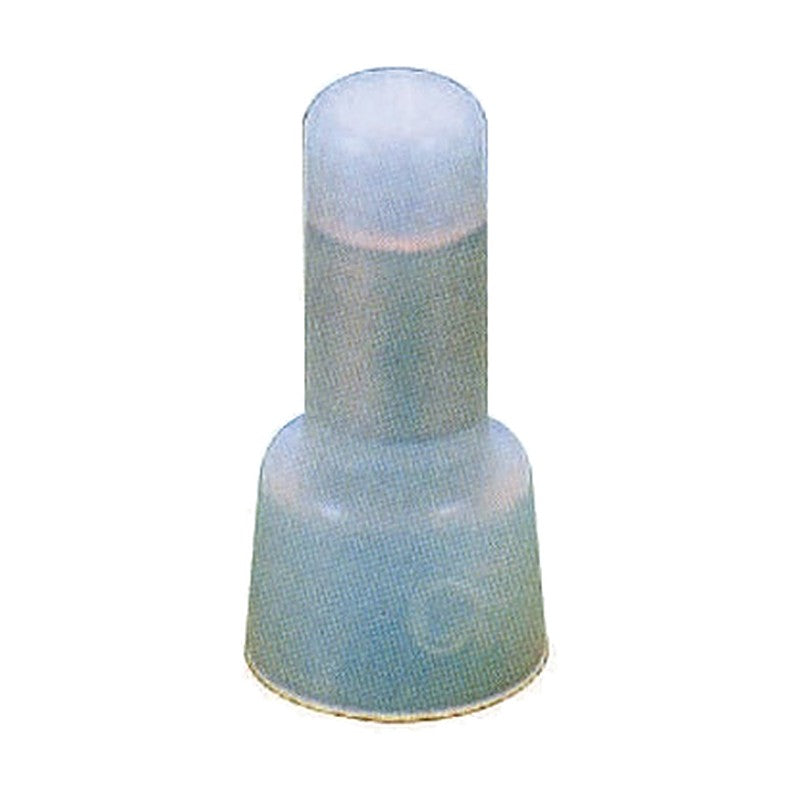

Jeoneo CE Nylon 6.6 Insulated Wire Joints (Closed-End Connectors)

Jeoneo CE Nylon 6.6 Insulated Wire Joints (Closed-End Connectors)

Nylon 6.6 insulated closed-end wire joints for copper (CE) or aluminium-compatible (CE-X) conductors, plus high-temperature versions rated 150 °C.

Key features

  • Natural nylon 6.6 insulation, UL94 V-2, rated 105 °C, 300 V
  • High-temperature CE2-150/CE5-150: white, UL94 V-0, 150 °C
  • Crimp with the wire joint crimping tools (JAN series)

Specifications

Surface Tin plated
Voltage rating 300 V
Jeoneo CE Nylon 6.6 Insulated Wire Joints (Closed-End Connectors)
CE-1 Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#18, Cu (CE-1), #24-#18, Cu (CE-1X), Max. 2 #20 w/ 1 #18, Min. 2 #22 | Wire range (mm²): 1.5 | Pack qty: 1,000 | Dimensions (mm): A 2.6, B 7.8, C 18.2
CE-2 Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/ 1 #14, Min. 2 #22 | Wire range (mm²): 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE-8 Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #16-#10, Cu, Max. 2 #16 w/ 1 #10, Min. 2 #16 w/ 1 #12 | Wire range (mm²): 6.10 | Pack qty: 500 | Dimensions (mm): A 5.3, B 14.3, C 27.7
CE-5 Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#10, Cu (CE-5), #20-#10, Cu (CE-5X), Max. 3 #14, Min. 3 #18 | Wire range (mm²): 4.6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
CE-1X Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#18, Cu (CE-1), #24-#18, Cu (CE-1X), Max. 2 #20 w/ 1 #18, Min. 2 #22 | Wire range (mm²): 1.5 | Pack qty: 1,000 | Dimensions (mm): A 2.6, B 7.8, C 18.2
CE-2X Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/ 1 #14, Min. 2 #22 | Wire range (mm²): 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE-3X Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#12, Cu, Max. 2 #14, Min. 2 #18 | Wire range (mm²): 4 | Pack qty: 1,000 | Dimensions (mm): A 4.0, B 10.3, C 21.5
CE-8X Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #16-#10, Cu, Max. 2 #16 w/ 1 #10, Min. 2 #16 w/ 1 #12 | Wire range (mm²): 6.10 | Pack qty: 500 | Dimensions (mm): A 5.3, B 14.3, C 27.7
CE-5X Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#10, Cu (CE-5), #20-#10, Cu (CE-5X), Max. 3 #14, Min. 3 #18 | Wire range (mm²): 4.6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
CE2-150 Insulation: Nylon 6.6 white, 150 °C, UL94 V-0 | Conductor: Cu | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/1 #14, Min. 2 #22. | Wire range (mm²): 1.5, 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE5-150 Insulation: Nylon 6.6 white, 150 °C, UL94 V-0 | Conductor: Cu | Wire combinations (AWG): #22-#10, Cu, Max. 3 #14, Min. 2 #22 w/2 #18 | Wire range (mm²): 4, 6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
Wire ConnectorsJeoneo
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo CE Nylon 6.6 Insulated Wire Joints (Closed-End Connectors)

Brand Jeoneo·Wire Connectors

Available part numbers (11)

CE-1, CE-2, CE-8, CE-5, CE-1X, CE-2X, CE-3X, CE-8X, CE-5X, CE2-150 + 1 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo CE Nylon 6.6 Insulated Wire Joints (Closed-End Connectors)
0 selected
RFQ List (0)
Product codeSpec
CE-1Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#18, Cu (CE-1), #24-#18, Cu (CE-1X), Max. 2 #20 w/ 1 #18, Min. 2 #22 | Wire range (mm²): 1.5 | Pack qty: 1,000 | Dimensions (mm): A 2.6, B 7.8, C 18.2
CE-2Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/ 1 #14, Min. 2 #22 | Wire range (mm²): 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE-8Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #16-#10, Cu, Max. 2 #16 w/ 1 #10, Min. 2 #16 w/ 1 #12 | Wire range (mm²): 6.10 | Pack qty: 500 | Dimensions (mm): A 5.3, B 14.3, C 27.7
CE-5Insulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Cu | Wire combinations (AWG): #22-#10, Cu (CE-5), #20-#10, Cu (CE-5X), Max. 3 #14, Min. 3 #18 | Wire range (mm²): 4.6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
CE-1XInsulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#18, Cu (CE-1), #24-#18, Cu (CE-1X), Max. 2 #20 w/ 1 #18, Min. 2 #22 | Wire range (mm²): 1.5 | Pack qty: 1,000 | Dimensions (mm): A 2.6, B 7.8, C 18.2
CE-2XInsulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/ 1 #14, Min. 2 #22 | Wire range (mm²): 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE-3XInsulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#12, Cu, Max. 2 #14, Min. 2 #18 | Wire range (mm²): 4 | Pack qty: 1,000 | Dimensions (mm): A 4.0, B 10.3, C 21.5
CE-8XInsulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #16-#10, Cu, Max. 2 #16 w/ 1 #10, Min. 2 #16 w/ 1 #12 | Wire range (mm²): 6.10 | Pack qty: 500 | Dimensions (mm): A 5.3, B 14.3, C 27.7
CE-5XInsulation: Nylon 6.6 natural, 105 °C, UL94 V-2 | Conductor: Al | Wire combinations (AWG): #22-#10, Cu (CE-5), #20-#10, Cu (CE-5X), Max. 3 #14, Min. 3 #18 | Wire range (mm²): 4.6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
CE2-150Insulation: Nylon 6.6 white, 150 °C, UL94 V-0 | Conductor: Cu | Wire combinations (AWG): #22-#14, Cu, Max. 1 #18 w/1 #14, Min. 2 #22. | Wire range (mm²): 1.5, 2.5 | Pack qty: 1,000 | Dimensions (mm): A 3.3, B 9.5, C 20.0
CE5-150Insulation: Nylon 6.6 white, 150 °C, UL94 V-0 | Conductor: Cu | Wire combinations (AWG): #22-#10, Cu, Max. 3 #14, Min. 2 #22 w/2 #18 | Wire range (mm²): 4, 6 | Pack qty: 1,000 | Dimensions (mm): A 4.4, B 12.5, C 25.2
