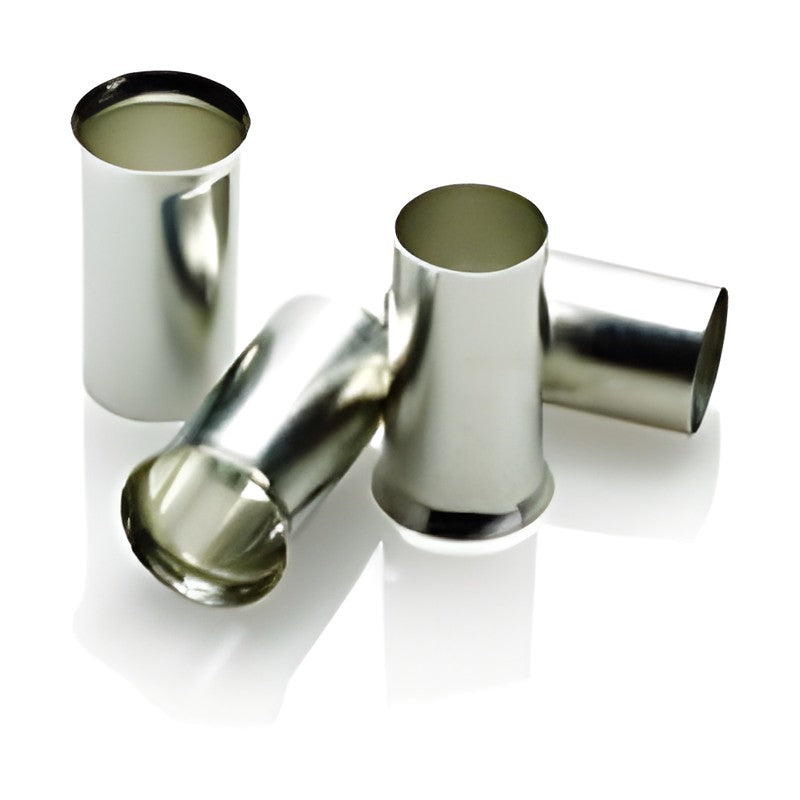

Jeoneo CN Uninsulated Wire Ferrules
Jeoneo CN Uninsulated Wire Ferrules
Uninsulated tin-plated copper wire end ferrules for 0.5 to 10 mm² conductors.
Key features
- CN007508, CN010008 and CN010012 do not have UL certification
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Pack qty | 1,000 |
| CN005006 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 6, d1 1.3, d2 1.0, D 2.1 | |
| CN005008 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 8, d1 1.3, d2 1.0, D 2.1 | |
| CN005010 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 10, d1 1.3, d2 1.0, D 2.1 | |
| CN007506 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 6, d1 1.5, d2 1.2, D 2.3 | |
| CN007508 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 8, d1 1.5, d2 1.2, D 2.3 | |
| CN007510 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 10, d1 1.5, d2 1.2, D 2.3 | |
| CN010006 | Wire range (mm²): 1.0 | Wire range: #12 | Dimensions (mm): L 6, d1 1.7, d2 1.4, D 2.5 | |
| CN010008 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 8, d1 1.7, d2 1.4, D 2.5 | |
| CN010010 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 10, d1 1.7, d2 1.4, D 2.5 | |
| CN010012 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 12, d1 1.7, d2 1.4, D 2.5 | |
| CN015008 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 8, d1 2.0, d2 1.7, D 2.8 | |
| CN015010 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 10, d1 2.0, d2 1.7, D 2.8 | |
| CN015012 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 12, d1 2.0, d2 1.7, D 2.8 | |
| CN025008 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 6, d1 1.3, d2 1.0, D 2.1 | |
| CN025010 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 8, d1 1.3, d2 1.0, D 2.1 | |
| CN025012 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 10, d1 1.3, d2 1.0, D 2.1 | |
| CN040010 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 6, d1 1.5, d2 1.2, D 2.3 | |
| CN040012 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 8, d1 1.5, d2 1.2, D 2.3 | |
| CN040015 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 10, d1 1.5, d2 1.2, D 2.3 | |
| CN040018 | Wire range (mm²): 1.0 | Wire range: #12 | Dimensions (mm): L 6, d1 1.7, d2 1.4, D 2.5 | |
| CN060012 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 8, d1 1.7, d2 1.4, D 2.5 | |
| CN060015 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 10, d1 1.7, d2 1.4, D 2.5 | |
| CN060018 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 12, d1 1.7, d2 1.4, D 2.5 | |
| CN100012 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 8, d1 2.0, d2 1.7, D 2.8 | |
| CN100015 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 10, d1 2.0, d2 1.7, D 2.8 | |
| CN100018 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 12, d1 2.0, d2 1.7, D 2.8 |
Wire FerrulesJeoneo
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo CN Uninsulated Wire Ferrules
Available part numbers (26)
CN005006, CN005008, CN005010, CN007506, CN007508, CN007510, CN010006, CN010008, CN010010, CN010012 + 16 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Wire Ferrules
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| CN005006 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 6, d1 1.3, d2 1.0, D 2.1 | ||
| CN005008 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 8, d1 1.3, d2 1.0, D 2.1 | ||
| CN005010 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 10, d1 1.3, d2 1.0, D 2.1 | ||
| CN007506 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 6, d1 1.5, d2 1.2, D 2.3 | ||
| CN007508 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 8, d1 1.5, d2 1.2, D 2.3 | ||
| CN007510 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 10, d1 1.5, d2 1.2, D 2.3 | ||
| CN010006 | Wire range (mm²): 1.0 | Wire range: #12 | Dimensions (mm): L 6, d1 1.7, d2 1.4, D 2.5 | ||
| CN010008 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 8, d1 1.7, d2 1.4, D 2.5 | ||
| CN010010 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 10, d1 1.7, d2 1.4, D 2.5 | ||
| CN010012 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 12, d1 1.7, d2 1.4, D 2.5 | ||
| CN015008 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 8, d1 2.0, d2 1.7, D 2.8 | ||
| CN015010 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 10, d1 2.0, d2 1.7, D 2.8 | ||
| CN015012 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 12, d1 2.0, d2 1.7, D 2.8 | ||
| CN025008 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 6, d1 1.3, d2 1.0, D 2.1 | ||
| CN025010 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 8, d1 1.3, d2 1.0, D 2.1 | ||
| CN025012 | Wire range: #20 | Wire range (mm²): 0.50 | Dimensions (mm): L 10, d1 1.3, d2 1.0, D 2.1 | ||
| CN040010 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 6, d1 1.5, d2 1.2, D 2.3 | ||
| CN040012 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 8, d1 1.5, d2 1.2, D 2.3 | ||
| CN040015 | Wire range: #18 | Wire range (mm²): 0.75 | Dimensions (mm): L 10, d1 1.5, d2 1.2, D 2.3 | ||
| CN040018 | Wire range (mm²): 1.0 | Wire range: #12 | Dimensions (mm): L 6, d1 1.7, d2 1.4, D 2.5 | ||
| CN060012 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 8, d1 1.7, d2 1.4, D 2.5 | ||
| CN060015 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 10, d1 1.7, d2 1.4, D 2.5 | ||
| CN060018 | Wire range (mm²): 1.0 | Wire range: #10 | Dimensions (mm): L 12, d1 1.7, d2 1.4, D 2.5 | ||
| CN100012 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 8, d1 2.0, d2 1.7, D 2.8 | ||
| CN100015 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 10, d1 2.0, d2 1.7, D 2.8 | ||
| CN100018 | Wire range: #16 | Wire range (mm²): 1.5 | Dimensions (mm): L 12, d1 2.0, d2 1.7, D 2.8 |
Need a different model, or a part not listed here? Send us your parts list →
