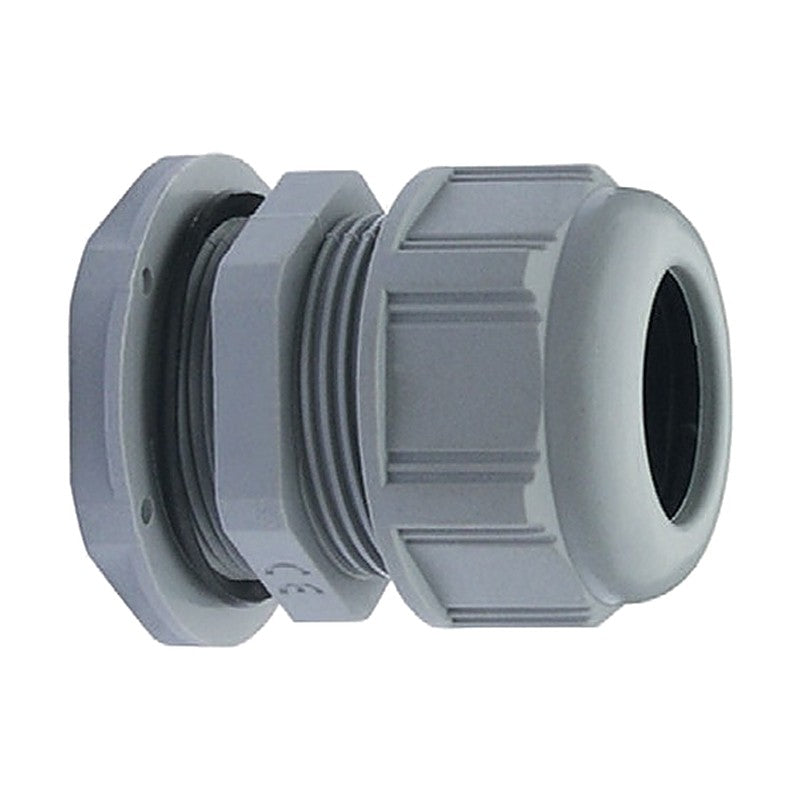

Jeoneo G Non-Metallic Cable Glands, BSP Thread

Jeoneo G Non-Metallic Cable Glands, BSP Thread

Nylon 66 cable glands with G (British standard pipe) thread and NBR seal, IP68, for cables from 4 to 31 mm.

Key features

  • IP68 protection
  • Non-general item, special order only

Specifications

Material Nylon 66 body/nuts, NBR seal
Working temperature -40 to 100 °C static (120 °C short term), -20 to 80 °C dynamic
Flammability UL94 V-2
Protection IP68
Color Silver gray or black
G-1/4 Thread size: G 1/4 | Cable range (mm): 4~6.8 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 13.1 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 19 | Pack qty: 100
G-3/8 Thread size: G 3/8 | Cable range (mm): 4.5~8 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 16.6 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 22 | Pack qty: 100
G-1/2 Thread size: G 1/2 | Cable range (mm): 7~12 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 20.9 | Spanner, sealing nut (mm): 24 | Spanner, lock nut (mm): 27 | Pack qty: 100
G-3/4 Thread size: G 3/4 | Cable range (mm): 13~18 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 26.4 | Spanner, sealing nut (mm): 33 | Spanner, lock nut (mm): 33 | Pack qty: 50
G-1 Thread size: G 1 | Cable range (mm): 18~25 | Thread length L1 (mm): 12 | Thread O.D. L2 (mm): 33.2 | Spanner, sealing nut (mm): 42 | Spanner, lock nut (mm): 41 | Pack qty: 25
G-1 1/4 Thread size: G 1-1/4 | Cable range (mm): 24~31 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 41.9 | Spanner, sealing nut (mm): 52 | Spanner, lock nut (mm): 49 | Pack qty: 20
Cable GlandsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo G Non-Metallic Cable Glands, BSP Thread

Brand Jeoneo·Cable Glands

Available part numbers (6)

G-1/4, G-3/8, G-1/2, G-3/4, G-1, G-1 1/4

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G-1/4Thread size: G 1/4 | Cable range (mm): 4~6.8 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 13.1 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 19 | Pack qty: 100
G-3/8Thread size: G 3/8 | Cable range (mm): 4.5~8 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 16.6 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 22 | Pack qty: 100
G-1/2Thread size: G 1/2 | Cable range (mm): 7~12 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 20.9 | Spanner, sealing nut (mm): 24 | Spanner, lock nut (mm): 27 | Pack qty: 100
G-3/4Thread size: G 3/4 | Cable range (mm): 13~18 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 26.4 | Spanner, sealing nut (mm): 33 | Spanner, lock nut (mm): 33 | Pack qty: 50
G-1Thread size: G 1 | Cable range (mm): 18~25 | Thread length L1 (mm): 12 | Thread O.D. L2 (mm): 33.2 | Spanner, sealing nut (mm): 42 | Spanner, lock nut (mm): 41 | Pack qty: 25
G-1 1/4Thread size: G 1-1/4 | Cable range (mm): 24~31 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 41.9 | Spanner, sealing nut (mm): 52 | Spanner, lock nut (mm): 49 | Pack qty: 20
