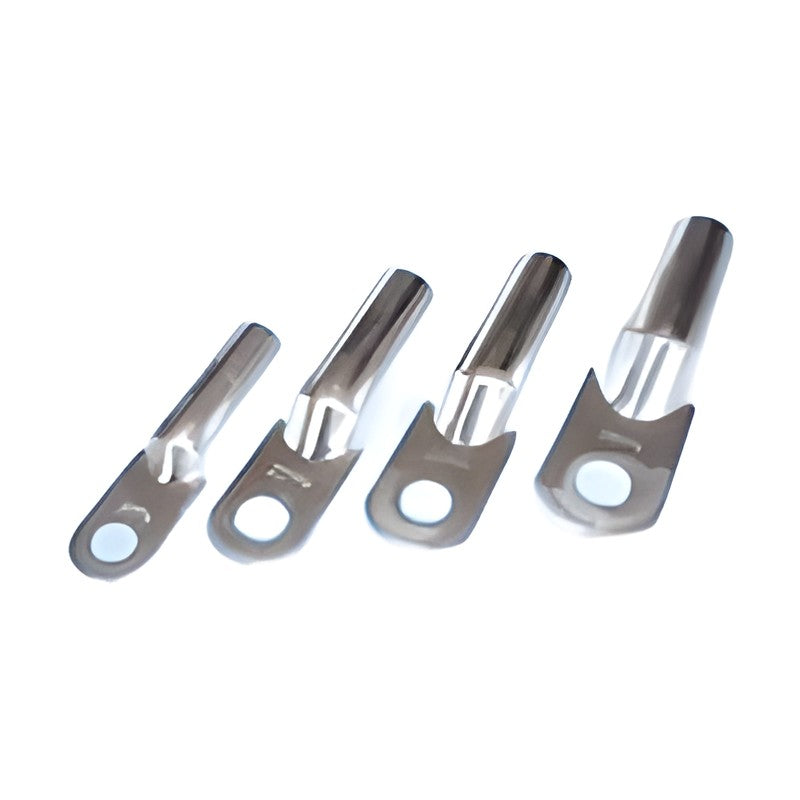

Jeoneo JATO Aluminium Compression Lugs, One Hole
Jeoneo JATO Aluminium Compression Lugs, One Hole
One-hole compressed aluminium cable lugs (Type AT(O)) for 16 to 630 mm² aluminium cables, for compression joints up to 35 kV.
Key features
- AL 99.5 aluminium, natural finish (tin plating on request)
- For compression joints up to 35 kV
Specifications
| Material | Aluminium AL 99.5 |
|---|---|
| Surface | Aluminium finish (tin plated on request) |
| Holes | 1 |
| JATO-16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Pack qty: 20 | Dimensions (mm): W 16, D 11, d 6.4, L 70, L1 32, T 4.5 | |
| JATO-25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Pack qty: 20 | Dimensions (mm): W 18, D 12, d 7.4, L 75, L1 35, T 4.5 | |
| JATO-35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Pack qty: 20 | Dimensions (mm): W 20, D 14, d 8.7, L 85, L1 39, T 4.8 | |
| JATO-50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Pack qty: 20 | Dimensions (mm): W 23, D 16, d 9.7, L 90, L1 40, T 5.5 | |
| JATO-70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Pack qty: 5 | Dimensions (mm): W 26, D 18, d 11.7, L 100, L1 43, T 5.5 | |
| JATO-95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Pack qty: 5 | Dimensions (mm): W 28, D 20, d 13.7, L 112, L1 50, T 5.8 | |
| JATO-120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Pack qty: 5 | Dimensions (mm): W 30, D 22, d 15.2, L 120, L1 52, T 6.5 | |
| JATO-150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Pack qty: 5 | Dimensions (mm): W 34, D 24, d 16.7, L 126, L1 55, T 6.7 | |
| JATO-185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Pack qty: 5 | Dimensions (mm): W 37, D 27, d 18.7, L 133, L1 60, T 7 | |
| JATO-240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Pack qty: 4 | Dimensions (mm): W 40, D 30, d 21, L 140, L1 61, T 7.2 | |
| JATO-300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M21 | Pack qty: 4 | Dimensions (mm): W 50, D 34, d 23, L 165, L1 65, T 7.5 | |
| JATO-400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Pack qty: 4 | Dimensions (mm): W 50, D 38, d 26, L 170, L1 70, T 8 | |
| JATO-500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Pack qty: 3 | Dimensions (mm): W 60, D 45, d 29, L 190, L1 75, T 10 | |
| JATO-630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Pack qty: 3 | Dimensions (mm): W 60, D 50, d 34, L 220, L1 80, T 10.5 |
Cable LugsJeoneo
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JATO Aluminium Compression Lugs, One Hole
Available part numbers (14)
JATO-16, JATO-25, JATO-35, JATO-50, JATO-70, JATO-95, JATO-120, JATO-150, JATO-185, JATO-240 + 4 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JATO-16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Pack qty: 20 | Dimensions (mm): W 16, D 11, d 6.4, L 70, L1 32, T 4.5 | ||
| JATO-25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Pack qty: 20 | Dimensions (mm): W 18, D 12, d 7.4, L 75, L1 35, T 4.5 | ||
| JATO-35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Pack qty: 20 | Dimensions (mm): W 20, D 14, d 8.7, L 85, L1 39, T 4.8 | ||
| JATO-50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Pack qty: 20 | Dimensions (mm): W 23, D 16, d 9.7, L 90, L1 40, T 5.5 | ||
| JATO-70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Pack qty: 5 | Dimensions (mm): W 26, D 18, d 11.7, L 100, L1 43, T 5.5 | ||
| JATO-95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Pack qty: 5 | Dimensions (mm): W 28, D 20, d 13.7, L 112, L1 50, T 5.8 | ||
| JATO-120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Pack qty: 5 | Dimensions (mm): W 30, D 22, d 15.2, L 120, L1 52, T 6.5 | ||
| JATO-150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Pack qty: 5 | Dimensions (mm): W 34, D 24, d 16.7, L 126, L1 55, T 6.7 | ||
| JATO-185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Pack qty: 5 | Dimensions (mm): W 37, D 27, d 18.7, L 133, L1 60, T 7 | ||
| JATO-240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Pack qty: 4 | Dimensions (mm): W 40, D 30, d 21, L 140, L1 61, T 7.2 | ||
| JATO-300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M21 | Pack qty: 4 | Dimensions (mm): W 50, D 34, d 23, L 165, L1 65, T 7.5 | ||
| JATO-400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Pack qty: 4 | Dimensions (mm): W 50, D 38, d 26, L 170, L1 70, T 8 | ||
| JATO-500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Pack qty: 3 | Dimensions (mm): W 60, D 45, d 29, L 190, L1 75, T 10 | ||
| JATO-630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Pack qty: 3 | Dimensions (mm): W 60, D 50, d 34, L 220, L1 80, T 10.5 |
Need a different model, or a part not listed here? Send us your parts list →
