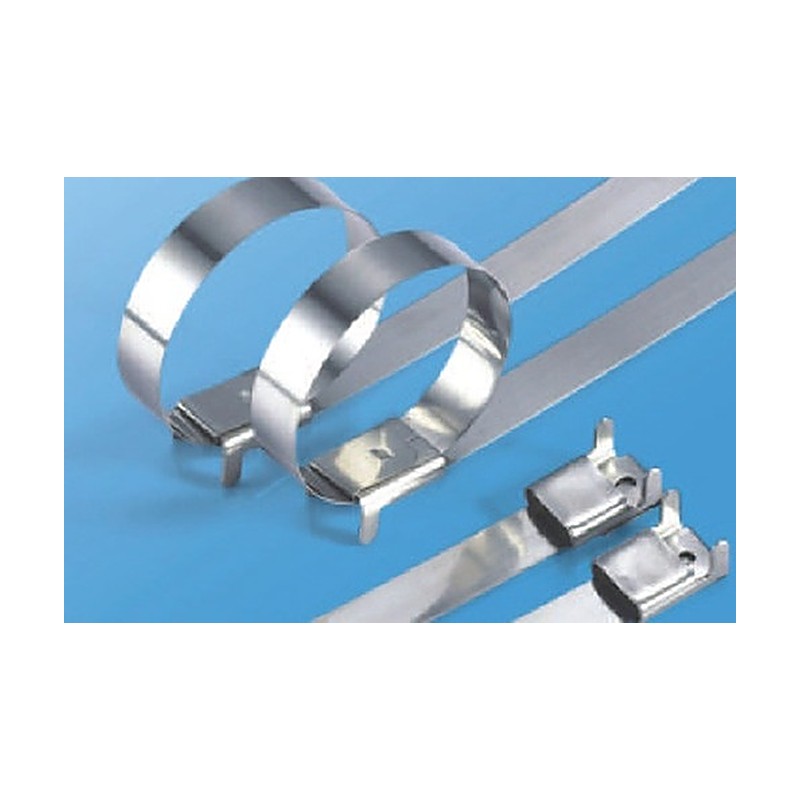

Jeoneo JBZ Stainless Steel Wing-Buckle Cable Ties
Jeoneo JBZ Stainless Steel Wing-Buckle Cable Ties
Wing-buckle AISI 316 stainless steel cable ties, 16 mm wide, closed with the JOT-240 banding tool; A type bare, B type PVC coated.
Key features
- Wing buckle closed easily with banding tool JOT-240
- For indoor or outdoor use
Specifications
| Material | AISI 316 stainless steel |
|---|---|
| Min. loop tensile strength (lb) | 600 |
| Min. loop tensile strength (kg) | 271 |
| Width (mm) | 16 |
| Thickness (mm) | 0.4 |
| Pack qty | 100 |
| JBZ 300UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 83 | Length (mm): 300 | |
| JBZ 400UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 121 | Length (mm): 400 | |
| JBZ 550UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 170 | Length (mm): 550 | |
| JBZ 800UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 242 | Length (mm): 800 | |
| JBZ 1200UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 369 | Length (mm): 1200 | |
| JBZ 300UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 83 | Length (mm): 300 | |
| JBZ 400UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 121 | Length (mm): 400 | |
| JBZ 550UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 170 | Length (mm): 550 | |
| JBZ 800UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 242 | Length (mm): 800 | |
| JBZ 1200UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 369 | Length (mm): 1200 |
Cable TiesJeoneo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JBZ Stainless Steel Wing-Buckle Cable Ties
Available part numbers (10)
JBZ 300UH-316A, JBZ 400UH-316A, JBZ 550UH-316A, JBZ 800UH-316A, JBZ 1200UH-316A, JBZ 300UH-316B, JBZ 400UH-316B, JBZ 550UH-316B, JBZ 800UH-316B, JBZ 1200UH-316B
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Ties
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JBZ 300UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 83 | Length (mm): 300 | ||
| JBZ 400UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 121 | Length (mm): 400 | ||
| JBZ 550UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 170 | Length (mm): 550 | ||
| JBZ 800UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 242 | Length (mm): 800 | ||
| JBZ 1200UH-316A | Type: A (uncoated) | Max. bundle dia. (mm): 369 | Length (mm): 1200 | ||
| JBZ 300UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 83 | Length (mm): 300 | ||
| JBZ 400UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 121 | Length (mm): 400 | ||
| JBZ 550UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 170 | Length (mm): 550 | ||
| JBZ 800UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 242 | Length (mm): 800 | ||
| JBZ 1200UH-316B | Type: B (PVC coated) | Max. bundle dia. (mm): 369 | Length (mm): 1200 |
