• Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 200-500 mm²
1 1

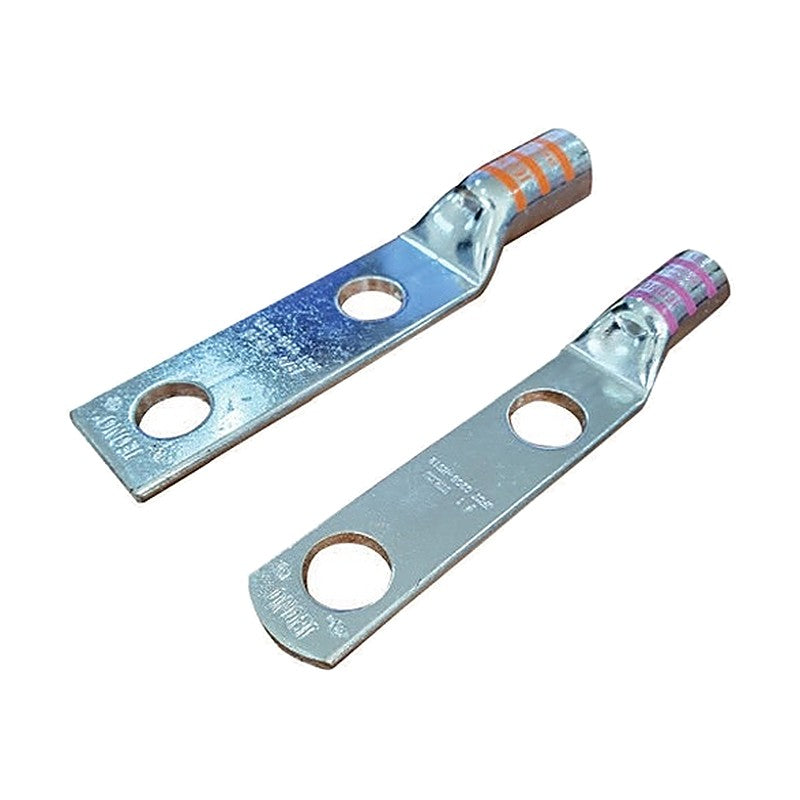

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 200-500 mm²

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 200-500 mm²

Two-hole copper lugs (Type FCT) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, square tongue, 200-500 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 2
Tongue form Square
JFCT 0214-SS10 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL10 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS12 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL12 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS16 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL16 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS20 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL20 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS24 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 147
JFCT 0214-SL24 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 162
JFCT 0215-SS10 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL10 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS12 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL12 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS16 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL16 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS20 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL20 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS24 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL24 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0216-SS12 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL12 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS16 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL16 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS20 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL20 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS24 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL24 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0217-SS12 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL12 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS16 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL16 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS20 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL20 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS24 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL24 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0218-SS12 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL12 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS16 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL16 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS20 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL20 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS24 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL24 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
Cable LugsJeoneo
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 200-500 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (44)

JFCT 0214-SS10, JFCT 0214-SL10, JFCT 0214-SS12, JFCT 0214-SL12, JFCT 0214-SS16, JFCT 0214-SL16, JFCT 0214-SS20, JFCT 0214-SL20, JFCT 0214-SS24, JFCT 0214-SL24 + 34 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCT 0214-SS10Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL10Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS12Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL12Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS16Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL16Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS20Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JFCT 0214-SL20Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JFCT 0214-SS24Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 147
JFCT 0214-SL24Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 162
JFCT 0215-SS10Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL10Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS12Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL12Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS16Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL16Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS20Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL20Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0215-SS24Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JFCT 0215-SL24Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JFCT 0216-SS12Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL12Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS16Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL16Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS20Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL20Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0216-SS24Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JFCT 0216-SL24Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JFCT 0217-SS12Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL12Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS16Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL16Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS20Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL20Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0217-SS24Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JFCT 0217-SL24Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-940, -100 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JFCT 0218-SS12Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL12Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS16Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL16Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS20Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL20Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JFCT 0218-SS24Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JFCT 0218-SL24Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
