Jeoneo JFS Flared Tubular Butt Connectors for Flex Conductors

Jeoneo JFS Flared Tubular Butt Connectors for Flex Conductors

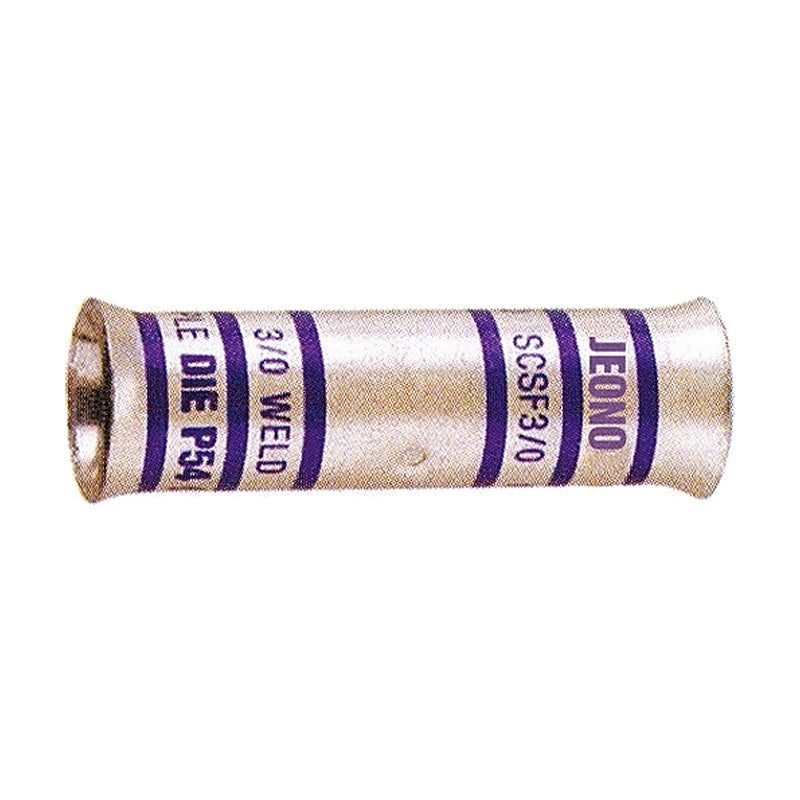

Tin-plated copper tubular butt connectors (Type JFS(F)) with flared barrel ends for 10 to 240 mm² extra-flexible cables.

Key features

  • Flared barrel ends for easy insertion of extra-flexible cable
  • Internal wire stop prevents over-insertion
  • For IEC 60228 class 5 and class 6 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5 and 6
Jeoneo JFS Flared Tubular Butt Connectors for Flex Conductors
JFS 16 Wire range: 8 AWG / 10 mm² | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 35.0
JFS 25 Wire range: 6 AWG / 16 mm² | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 40.0
JFS 35 Wire range: 4~3 AWG / 25 mm² | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 45.0
JFS 50 Wire range: 2 AWG / 35 mm² | Color code / die: Pink 42 | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 50.0
JFS 70 Wire range: 1~1/0 AWG / 50 mm² | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 55.0
JFS 95 Wire range: 2/0 AWG / 70 mm² | Color code / die: Orange 50 | Pack qty: 70 | Dimensions (mm): d1 13.5, D 17.0, L 60.0
JFS 120 Wire range: 3/0 AWG / 95 mm² | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): d1 15.2, D 19.0, L 65.0
JFS 150 Wire range: 250Kcmil / 120 mm² | Color code / die: Yellow 62 | Pack qty: 40 | Dimensions (mm): d1 17.0, D 21.0, L 70.0
JFS 185 Wire range: 300Kcmil / 150 mm² | Color code / die: Red 71 | Pack qty: 35 | Dimensions (mm): d1 19.0, D 23.5, L 80.0
JFS 240 Wire range: 350Kcmil / 185 mm² | Color code / die: Brown 87 | Pack qty: 20 | Dimensions (mm): d1 22.0, D 27.4, L 90.0
JFS 300 Wire range: 400Kcmil / 240 mm² | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): d1 24.0, D 30.5, L 100
Butt SplicesJeoneo
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFS Flared Tubular Butt Connectors for Flex Conductors

Brand Jeoneo·Butt Splices

Available part numbers (11)

JFS 16, JFS 25, JFS 35, JFS 50, JFS 70, JFS 95, JFS 120, JFS 150, JFS 185, JFS 240 + 1 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JFS Flared Tubular Butt Connectors for Flex Conductors
0 selected
RFQ List (0)
Product codeSpec
JFS 16Wire range: 8 AWG / 10 mm² | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 35.0
JFS 25Wire range: 6 AWG / 16 mm² | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 40.0
JFS 35Wire range: 4~3 AWG / 25 mm² | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 45.0
JFS 50Wire range: 2 AWG / 35 mm² | Color code / die: Pink 42 | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 50.0
JFS 70Wire range: 1~1/0 AWG / 50 mm² | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 55.0
JFS 95Wire range: 2/0 AWG / 70 mm² | Color code / die: Orange 50 | Pack qty: 70 | Dimensions (mm): d1 13.5, D 17.0, L 60.0
JFS 120Wire range: 3/0 AWG / 95 mm² | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): d1 15.2, D 19.0, L 65.0
JFS 150Wire range: 250Kcmil / 120 mm² | Color code / die: Yellow 62 | Pack qty: 40 | Dimensions (mm): d1 17.0, D 21.0, L 70.0
JFS 185Wire range: 300Kcmil / 150 mm² | Color code / die: Red 71 | Pack qty: 35 | Dimensions (mm): d1 19.0, D 23.5, L 80.0
JFS 240Wire range: 350Kcmil / 185 mm² | Color code / die: Brown 87 | Pack qty: 20 | Dimensions (mm): d1 22.0, D 27.4, L 90.0
JFS 300Wire range: 400Kcmil / 240 mm² | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): d1 24.0, D 30.5, L 100
