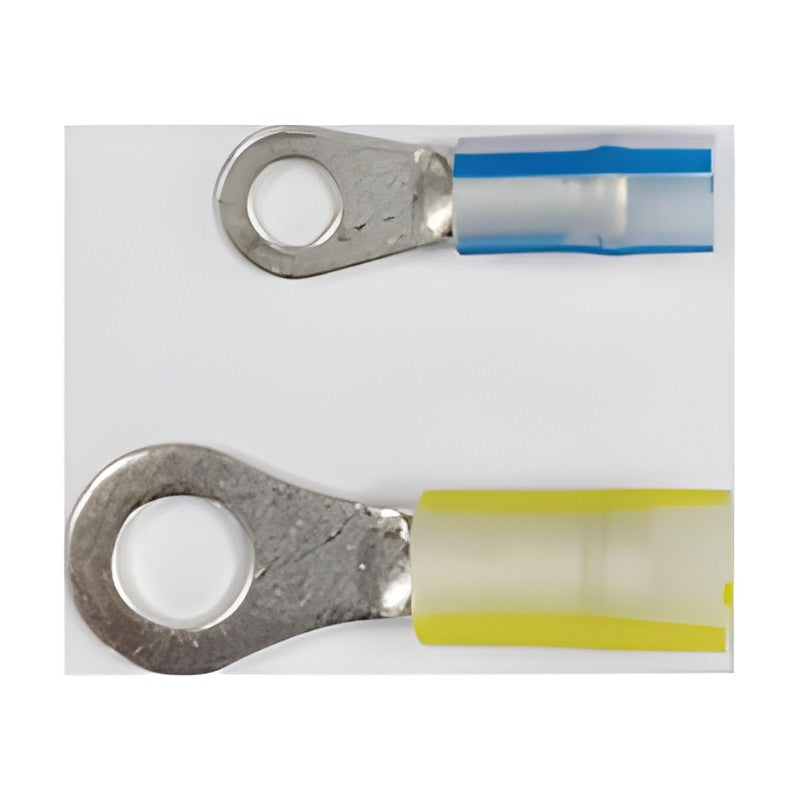

Jeoneo JK Nuclear-Grade PVDF-Insulated Ring Terminals

Jeoneo JK Nuclear-Grade PVDF-Insulated Ring Terminals

PVDF (Kynar) insulated ring terminals (Type JK) qualified as Class 1E per IEEE 323 for nuclear power plant wiring.

Key features

  • Classified as Class 1E in accordance with IEEE 323
  • Metal insulation grip sleeve protects the crimp under high vibration
  • Natural PVDF housing with color stripe identifying the wire range
  • Insulation temperature rating 150 °C, UL94 V-0
  • Listed to KHNP (Korea Hydro & Nuclear Power) specifications

Specifications

Material Oxygen-free copper
Insulation housing PVDF (Kynar)
Surface Electro-tin
Insulation temperature rating 150 °C
Flammability UL94 V-0
Jeoneo JK Nuclear-Grade PVDF-Insulated Ring Terminals
JK16-R3 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #5 | Stud size (mm): 3 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 5.5, E 12.5, L 20.0, d1 1.7, t 0.7, D 5.6
JK16-RS3.5 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #6 | Stud size (mm): 3.5 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 5.5, E 12.5, L 20.0, d1 1.7, t 0.7, D 5.6
JK16-R3.5 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #6 | Stud size (mm): 3.5 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 6.5, E 12.5, L 23.3, d1 1.7, t 0.7, D 5.6
JK16-RK4 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 6.6, E 12.5, L 23.3, d1 1.7, t 0.7, D 5.6
JK16-RM4 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 5.8, E 12.5, L 22.2, d1 1.7, t 0.7, D 5.6
JK16-R4 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 8.0, E 12.5, L 23.5, d1 1.7, t 0.7, D 5.6
JK16-R5 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 8.0, E 12.5, L 23.5, d1 1.7, t 0.7, D 5.6
JK16-R6 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 11.4, E 12.5, L 28.2, d1 1.7, t 0.7, D 5.6
JK16-R8 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 11.4, E 12.5, L 28.2, d1 1.7, t 0.7, D 5.6
JK16-R10 Wire range: 22~16 AWG / 1.5 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-16, JKP-1L, JKP-1L-JK, 22-16, JKP-N03C | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): B 14.0, E 12.5, L 30.3, d1 1.7, t 0.7, D 5.6
JK14-RM3 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #5 | Stud size (mm): 3 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 6.0, E 12.5, L 23.5, d1 2.3, t 0.8, D 6.3
JK14-RS3.5 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #6 | Stud size (mm): 3.5 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 6.6, E 12.5, L 24.5, d1 2.3, t 0.8, D 6.3
JK14-R3.5 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #6 | Stud size (mm): 3.5 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 7.9, E 12.5, L 25.2, d1 2.3, t 0.8, D 6.3
JK14-RM4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 6.5, E 12.5, L 24.5, d1 2.3, t 0.8, D 6.3
JK14-RK4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 7.9, E 12.5, L 25.2, d1 2.3, t 0.8, D 6.3
JK14-R4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 8.5, E 12.5, L 24.3, d1 2.3, t 0.8, D 6.3
JK14-RS5 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 7.9, E 12.5, L 25.2, d1 2.3, t 0.8, D 6.3
JK14-R5 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 9.5, E 12.5, L 24.8, d1 2.3, t 0.8, D 6.3
JK14-R6 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 12.0, E 12.5, L 29.3, d1 2.3, t 0.8, D 6.3
JK14-R8 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 12.0, E 12.5, L 29.3, d1 2.3, t 0.8, D 6.3
JK14-R10 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 14.0, E 12.5, L 30.3, d1 2.3, t 0.8, D 6.3
JK14-R12 Wire range: 16~14 AWG / 2.5 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-14, JKP-1L, JKP-1L-JK, 16-14, JKP-N03C | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): B 17.0, E 12.5, L 33.8, d1 2.3, t 0.8, D 6.3
JK10-R3.5 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): #6 | Stud size (mm): 3.5 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 9.5, E 15.0, L 27.8, d1 3.4, t 1.0, D 8.1
JK10-RM4 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 7.0, E 15.0, L 26.3, d1 3.4, t 1.0, D 8.1
JK10-R4 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): #8 | Stud size (mm): 4 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 9.5, E 15.0, L 27.8, d1 3.4, t 1.0, D 8.1
JK10-R5 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 9.5, E 15.0, L 27.8, d1 3.4, t 1.0, D 8.1
JK10-RS6 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 12.0, E 15.0, L 33.8, d1 3.4, t 1.0, D 8.1
JK10-R6 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 13.5, E 15.0, L 34.6, d1 3.4, t 1.0, D 8.1
JK10-RS8 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 13.5, E 15.0, L 34.6, d1 3.4, t 1.0, D 8.1
JK10-R8 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 15.0, E 15.0, L 36.3, d1 3.4, t 1.0, D 8.1
JK10-R10 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 15.0, E 15.0, L 36.3, d1 3.4, t 1.0, D 8.1
JK10-R12 Wire range: 12~10 AWG / 4.6 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-10, JKP-1L, JKP-1L-JK, 12-10, JKP-N03C | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): B 16.0, E 15.0, L 33.8, d1 3.4, t 1.0, D 8.1
JK8-RS5 Wire range: 8 AWG / 10 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 9.0, E 17.0, L 32.5, d1 4.5, t 1.15, D 10.5
JK8-RM5 Wire range: 8 AWG / 10 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 10.9, E 17.0, L 32.5, d1 4.5, t 1.15, D 10.5
JK8-R5 Wire range: 8 AWG / 10 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 12.0, E 17.0, L 32.0, d1 4.5, t 1.15, D 10.5
JK8-R6 Wire range: 8 AWG / 10 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 12.0, E 17.0, L 32.0, d1 4.5, t 1.15, D 10.5
JK8-R8 Wire range: 8 AWG / 10 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 15.0, E 17.0, L 38.5, d1 4.5, t 1.15, D 10.5
JK8-R10 Wire range: 8 AWG / 10 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 15.0, E 17.0, L 38.5, d1 4.5, t 1.15, D 10.5
JK8-R12 Wire range: 8 AWG / 10 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-8 | Color stripe: RED | Pack qty: 250 | Dimensions (mm): B 20.0, E 17.0, L 44.0, d1 4.5, t 1.15, D 10.5
JK6-RS5 Wire range: 6 AWG / 16 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 10.0, E 22.0, L 41.0, d1 5.8, t 1.45, D 12.9
JK6-R5 Wire range: 6 AWG / 16 mm² | Stud size (UNC): #10 | Stud size (mm): 5 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 12.0, E 22.0, L 41.0, d1 5.8, t 1.45, D 12.9
JK6-R6 Wire range: 6 AWG / 16 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 12.0, E 22.0, L 41.0, d1 5.8, t 1.45, D 12.9
JK6-RS8 Wire range: 6 AWG / 16 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 13.5, E 22.0, L 41.0, d1 5.8, t 1.45, D 12.9
JK6-R8 Wire range: 6 AWG / 16 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 16.0, E 22.0, L 44.5, d1 5.8, t 1.45, D 12.9
JK6-R10 Wire range: 6 AWG / 16 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 16.0, E 22.0, L 44.5, d1 5.8, t 1.45, D 12.9
JK6-R12 Wire range: 6 AWG / 16 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-6 | Color stripe: BLUE | Pack qty: 100 | Dimensions (mm): B 22.0, E 22.0, L 50.5, d1 5.8, t 1.45, D 12.9
JK4-RS6 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 12.0, E 25.0, L 46.0, d1 7.7, t 1.7, D 16.1
JK4-R6 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 16.5, E 25.0, L 46.2, d1 7.7, t 1.7, D 16.1
JK4-RS8 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 12.0, E 25.0, L 46.0, d1 7.7, t 1.7, D 16.1
JK4-R8 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 16.5, E 25.0, L 46.2, d1 7.7, t 1.7, D 16.1
JK4-RS10 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 16.5, E 25.0, L 46.2, d1 7.7, t 1.7, D 16.1
JK4-R10 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 17.5, E 25.0, L 51.5, d1 7.7, t 1.7, D 16.1
JK4-RS12 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 17.5, E 25.0, L 51.5, d1 7.7, t 1.7, D 16.1
JK4-R12 Wire range: 4 AWG / 25 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-4 | Color stripe: YELLOW | Pack qty: 100 | Dimensions (mm): B 22.0, E 25.0, L 55.5, d1 7.7, t 1.7, D 16.1
JK2-RS6 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 16.0, E 25.0, L 48.0, d1 9.4, t 1.8, D 18.1
JK2-R6 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 1/4 | Stud size (mm): 6 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 22.0, E 25.0, L 54.3, d1 9.4, t 1.8, D 18.1
JK2-RS8 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 16.0, E 25.0, L 48.0, d1 9.4, t 1.8, D 18.1
JK2-R8 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 5/16 | Stud size (mm): 8 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 22.0, E 25.0, L 54.3, d1 9.4, t 1.8, D 18.1
JK2-RS10 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 16.0, E 25.0, L 48.0, d1 9.4, t 1.8, D 18.1
JK2-RM10 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 17.8, E 25.0, L 51.5, d1 9.4, t 1.8, D 18.1
JK2-R10 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 3/8 | Stud size (mm): 10 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 22.0, E 25.0, L 54.3, d1 9.4, t 1.8, D 18.1
JK2-R12 Wire range: 2 AWG / 35 mm² | Stud size (UNC): 1/2 | Stud size (mm): 12 | Crimping tool/die: JHCT-8642 / JD-2 | Color stripe: RED | Pack qty: 50 | Dimensions (mm): B 22.0, E 25.0, L 54.3, d1 9.4, t 1.8, D 18.1
Ring TerminalsJeoneo
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JK Nuclear-Grade PVDF-Insulated Ring Terminals

Brand Jeoneo·Ring Terminals

Available part numbers (62)

JK16-R3, JK16-RS3.5, JK16-R3.5, JK16-RK4, JK16-RM4, JK16-R4, JK16-R5, JK16-R6, JK16-R8, JK16-R10 + 52 more — see full table ↓
