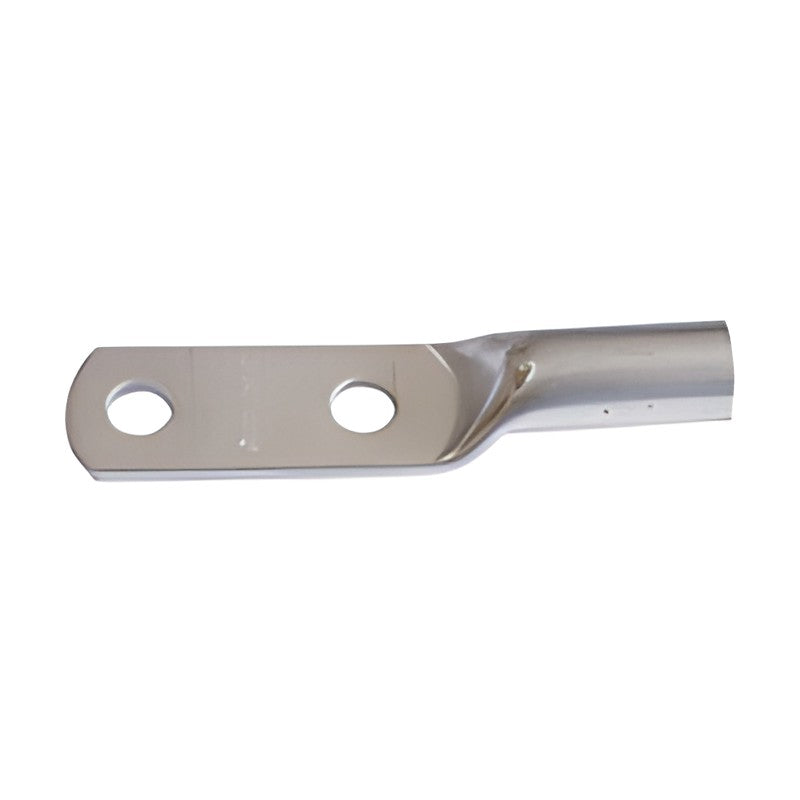

Jeoneo JOCE Tubular Cable Lugs, Two Hole, Without Inspection Hole
Jeoneo JOCE Tubular Cable Lugs, Two Hole, Without Inspection Hole
Two-hole round-compressed tubular copper cable lugs (Type CE) without inspection hole for 6 to 1000 mm² class 2 conductors.
Key features
- Electrolytic copper, tin plated
- Suffix (45) indicates 45 mm hole spacing; standard spacing 22.5 mm up to 50 mm²
- For IEC 60228 class 2 conductors
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Conductor class | IEC 60228 class 2 |
| Holes | 2 |
| JOCE 6-2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Hole spacing A (mm): 22.5 | Pack qty: 1,000 | Dimensions (mm): W 9, d 4.0, D 5.5, E 12, L 53.5 | |
| JOCE 6-2(45) | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Hole spacing A (mm): 45 | Pack qty: 1,000 | Dimensions (mm): W 9, d 4.0, D 5.5, E 12, L 76 | |
| JOCE 10-2 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Hole spacing A (mm): 22.5 | Pack qty: 500 | Dimensions (mm): W 10, d 4.7, D 6.7, E 13, L 58.5 | |
| JOCE 10-2(45) | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Hole spacing A (mm): 45 | Pack qty: 500 | Dimensions (mm): W 10, d 4.7, D 6.7, E 13, L 81 | |
| JOCE 16-2 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Hole spacing A (mm): 22.5 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 20, L 67.5 | |
| JOCE 16-2(45) | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Hole spacing A (mm): 45 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 20, L 90 | |
| JOCE 25-2 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Hole spacing A (mm): 22.5 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9, E 20, L 71.5 | |
| JOCE 25-2(45) | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Hole spacing A (mm): 45 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9, E 20, L 94 | |
| JOCE 35-2 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Hole spacing A (mm): 22.5 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 23, L 75.5 | |
| JOCE 35-2(45) | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Hole spacing A (mm): 45 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 23, L 98 | |
| JOCE 50-2 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Hole spacing A (mm): 22.5 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 27, L 85.5 | |
| JOCE 50-2(45) | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Hole spacing A (mm): 45 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 27, L 108 | |
| JOCE 70-2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, E 28, L 115 | |
| JOCE 95-2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 35, L 125 | |
| JOCE 120-2 | Wire range: 250 kcmil / 120 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 28, d 15.2, D 19, E 40, L 130 | |
| JOCE 150-2 | Wire range: 300 kcmil / 150 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 30 | Dimensions (mm): W 31, d 17, D 21, E 43, L 134 | |
| JOCE 185-2 | Wire range: 350 kcmil / 185 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 25 | Dimensions (mm): W 34, d 19, D 23.5, E 45, L 141 | |
| JOCE 240-2 | Wire range: 500 kcmil / 240 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 53, L 147 | |
| JOCE 300-2 | Wire range: 600 kcmil / 300 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 63, L 162 | |
| JOCE 400-2 | Wire range: 750 kcmil / 400 mm² | Stud size: M14 | Hole spacing A (mm): 45 | Pack qty: 8 | Dimensions (mm): W 48, d 26, D 34, E 66, L 176 | |
| JOCE 500-2 | Wire range: 1000 kcmil / 500 mm² | Stud size: M14 | Hole spacing A (mm): 45 | Pack qty: 8 | Dimensions (mm): W 57, d 31, D 40, E 67, L 188 | |
| JOCE 630-2 | Wire range: 1250 kcmil / 630 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 64, d 34, D 45, E 70, L 211 | |
| JOCE 800-2 | Wire range: 1500 kcmil / 800 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 72, d 39, D 50.6, E 100, L 232 | |
| JOCE 1000-2 | Wire range: 2000 kcmil / 1000 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 80, d 43, D 56.2, E 102, L 245 |
Cable LugsJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOCE Tubular Cable Lugs, Two Hole, Without Inspection Hole
Available part numbers (24)
JOCE 6-2, JOCE 6-2(45), JOCE 10-2, JOCE 10-2(45), JOCE 16-2, JOCE 16-2(45), JOCE 25-2, JOCE 25-2(45), JOCE 35-2, JOCE 35-2(45) + 14 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOCE 6-2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Hole spacing A (mm): 22.5 | Pack qty: 1,000 | Dimensions (mm): W 9, d 4.0, D 5.5, E 12, L 53.5 | ||
| JOCE 6-2(45) | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Hole spacing A (mm): 45 | Pack qty: 1,000 | Dimensions (mm): W 9, d 4.0, D 5.5, E 12, L 76 | ||
| JOCE 10-2 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Hole spacing A (mm): 22.5 | Pack qty: 500 | Dimensions (mm): W 10, d 4.7, D 6.7, E 13, L 58.5 | ||
| JOCE 10-2(45) | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Hole spacing A (mm): 45 | Pack qty: 500 | Dimensions (mm): W 10, d 4.7, D 6.7, E 13, L 81 | ||
| JOCE 16-2 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Hole spacing A (mm): 22.5 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 20, L 67.5 | ||
| JOCE 16-2(45) | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Hole spacing A (mm): 45 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 20, L 90 | ||
| JOCE 25-2 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Hole spacing A (mm): 22.5 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9, E 20, L 71.5 | ||
| JOCE 25-2(45) | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Hole spacing A (mm): 45 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9, E 20, L 94 | ||
| JOCE 35-2 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Hole spacing A (mm): 22.5 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 23, L 75.5 | ||
| JOCE 35-2(45) | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Hole spacing A (mm): 45 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 23, L 98 | ||
| JOCE 50-2 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Hole spacing A (mm): 22.5 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 27, L 85.5 | ||
| JOCE 50-2(45) | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Hole spacing A (mm): 45 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 27, L 108 | ||
| JOCE 70-2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, E 28, L 115 | ||
| JOCE 95-2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 35, L 125 | ||
| JOCE 120-2 | Wire range: 250 kcmil / 120 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 50 | Dimensions (mm): W 28, d 15.2, D 19, E 40, L 130 | ||
| JOCE 150-2 | Wire range: 300 kcmil / 150 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 30 | Dimensions (mm): W 31, d 17, D 21, E 43, L 134 | ||
| JOCE 185-2 | Wire range: 350 kcmil / 185 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 25 | Dimensions (mm): W 34, d 19, D 23.5, E 45, L 141 | ||
| JOCE 240-2 | Wire range: 500 kcmil / 240 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 53, L 147 | ||
| JOCE 300-2 | Wire range: 600 kcmil / 300 mm² | Stud size: M12 | Hole spacing A (mm): 45 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 63, L 162 | ||
| JOCE 400-2 | Wire range: 750 kcmil / 400 mm² | Stud size: M14 | Hole spacing A (mm): 45 | Pack qty: 8 | Dimensions (mm): W 48, d 26, D 34, E 66, L 176 | ||
| JOCE 500-2 | Wire range: 1000 kcmil / 500 mm² | Stud size: M14 | Hole spacing A (mm): 45 | Pack qty: 8 | Dimensions (mm): W 57, d 31, D 40, E 67, L 188 | ||
| JOCE 630-2 | Wire range: 1250 kcmil / 630 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 64, d 34, D 45, E 70, L 211 | ||
| JOCE 800-2 | Wire range: 1500 kcmil / 800 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 72, d 39, D 50.6, E 100, L 232 | ||
| JOCE 1000-2 | Wire range: 2000 kcmil / 1000 mm² | Stud size: M16 | Hole spacing A (mm): 45 | Pack qty: 5 | Dimensions (mm): W 80, d 43, D 56.2, E 102, L 245 |
Need a different model, or a part not listed here? Send us your parts list →
