Jeoneo JOCT Code Conductor Lugs, Blank Tongue, Long Barrel
Jeoneo JOCT Code Conductor Lugs, Blank Tongue, Long Barrel

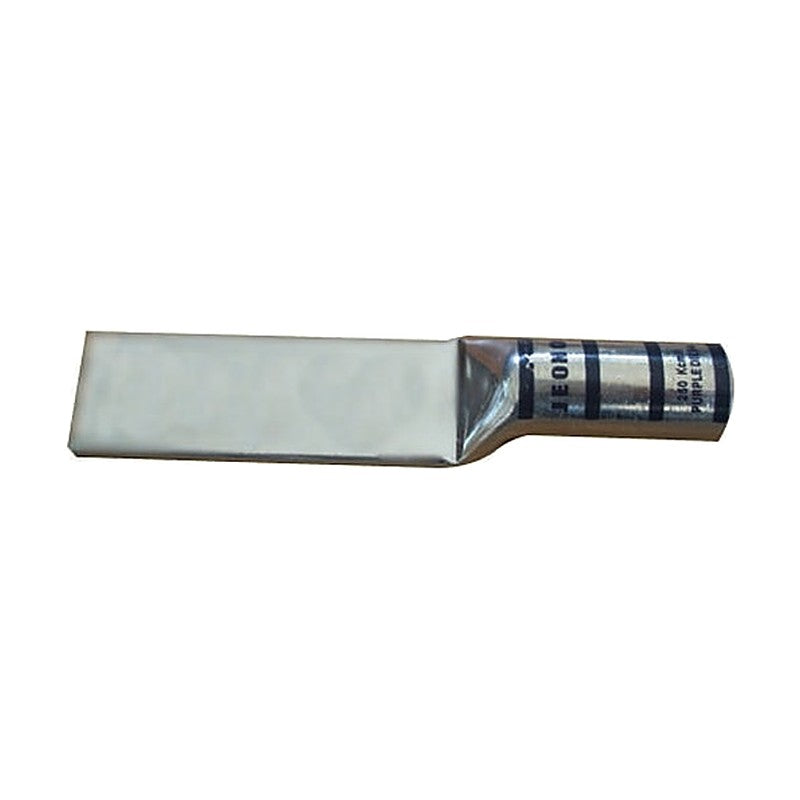

Blank-tongue (undrilled) long-barrel copper lugs (Type CT(B)) without inspection hole for 10 to 630 mm² code conductors, to be drilled on site.
Key features
- Blank tongue for custom drilling
- Without inspection hole
- Color coded to show proper die number and color
- UL listed 486A-486B, up to 35 kV
- For 45° or 90° bent versions see the angled CP lugs
Specifications
| Material | Electrolytic copper (TPC) |
|---|---|
| Surface | Tin plated |
| Conductor class | IEC 60228 class 2 |
| JOCT 0201-SL00T | Wire range: 8 AWG / 10 mm² | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 10, d 4.7, D 6.7, E 19, L 56 | |
| JOCT 0202-SL00T | Wire range: 6 AWG / 16 mm² | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, E 25, L 62 | |
| JOCT 0203-SL00T | Wire range: 4 AWG / 25 mm² | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, E 25, L 62 | |
| JOCT 0204-SL00T | Wire range: 2 AWG / 35 mm² | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 30, L 82 | |
| JOCT 0205-SL00T | Wire range: 1 AWG / 50 mm² | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 113 | |
| JOCT 0206-SL00T | Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 37, L 117 | |
| JOCT 0207-SL00T | Wire range: 2/0 AWG / 70 mm² | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, E 37, L 120 | |
| JOCT 0208-SL00T | Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 125 | |
| JOCT 0209-SL00T | Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, E 42, L 130 | |
| JOCT 0210-SL00T | Wire range: 250Kcmil / 120 mm² | Color code / die: Purple 54, JOCD-250KCM | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, E 42, L 129 | |
| JOCT 0211-SL00T | Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow 62, JOCD-300KCM | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, E 56, L 146 | |
| JOCT 0212-SL00T | Wire range: 350Kcmil / 185 mm² | Color code / die: Red 71, JOCD-350KCM | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, E 56, L 150 | |
| JOCT 0213-SL00T | Wire range: 400Kcmil / 200 mm² | Color code / die: Blue 76, JOCD-400KCM | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, E 58, L 157 | |
| JOCT 0214-SL00T | Wire range: 500Kcmil / 240 mm² | Color code / die: Brown 87, JOCD-500KCM | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, E 63, L 165 | |
| JOCT 0215-SL00T | Wire range: 600Kcmil / 300 mm² | Color code / die: Green 94, JOCD-600KCM | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 170 | |
| JOCT 0216-SL00T | Wire range: 750Kcmil / 400 mm² | Color code / die: Black 106, JOCD-750KCM | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, E 73, L 175 | |
| JOCT 0217-SL00T | Wire range: 1000Kcmil / 500 mm² | Color code / die: White 125, JOCD-1000KCM | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 192 | |
| JOCT 0218-SL00T | Wire range: 1250Kcmil / 630 mm² | Color code / die: Pink 142, JOCD-1250KCM | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 80, L 201 |
Cable LugsJeoneo
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOCT Code Conductor Lugs, Blank Tongue, Long Barrel
Available part numbers (18)
JOCT 0201-SL00T, JOCT 0202-SL00T, JOCT 0203-SL00T, JOCT 0204-SL00T, JOCT 0205-SL00T, JOCT 0206-SL00T, JOCT 0207-SL00T, JOCT 0208-SL00T, JOCT 0209-SL00T, JOCT 0210-SL00T + 8 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOCT 0201-SL00T | Wire range: 8 AWG / 10 mm² | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 10, d 4.7, D 6.7, E 19, L 56 | ||
| JOCT 0202-SL00T | Wire range: 6 AWG / 16 mm² | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, E 25, L 62 | ||
| JOCT 0203-SL00T | Wire range: 4 AWG / 25 mm² | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, E 25, L 62 | ||
| JOCT 0204-SL00T | Wire range: 2 AWG / 35 mm² | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 30, L 82 | ||
| JOCT 0205-SL00T | Wire range: 1 AWG / 50 mm² | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 113 | ||
| JOCT 0206-SL00T | Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 37, L 117 | ||
| JOCT 0207-SL00T | Wire range: 2/0 AWG / 70 mm² | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, E 37, L 120 | ||
| JOCT 0208-SL00T | Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 125 | ||
| JOCT 0209-SL00T | Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, E 42, L 130 | ||
| JOCT 0210-SL00T | Wire range: 250Kcmil / 120 mm² | Color code / die: Purple 54, JOCD-250KCM | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, E 42, L 129 | ||
| JOCT 0211-SL00T | Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow 62, JOCD-300KCM | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, E 56, L 146 | ||
| JOCT 0212-SL00T | Wire range: 350Kcmil / 185 mm² | Color code / die: Red 71, JOCD-350KCM | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, E 56, L 150 | ||
| JOCT 0213-SL00T | Wire range: 400Kcmil / 200 mm² | Color code / die: Blue 76, JOCD-400KCM | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, E 58, L 157 | ||
| JOCT 0214-SL00T | Wire range: 500Kcmil / 240 mm² | Color code / die: Brown 87, JOCD-500KCM | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, E 63, L 165 | ||
| JOCT 0215-SL00T | Wire range: 600Kcmil / 300 mm² | Color code / die: Green 94, JOCD-600KCM | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 170 | ||
| JOCT 0216-SL00T | Wire range: 750Kcmil / 400 mm² | Color code / die: Black 106, JOCD-750KCM | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, E 73, L 175 | ||
| JOCT 0217-SL00T | Wire range: 1000Kcmil / 500 mm² | Color code / die: White 125, JOCD-1000KCM | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 192 | ||
| JOCT 0218-SL00T | Wire range: 1250Kcmil / 630 mm² | Color code / die: Pink 142, JOCD-1250KCM | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 80, L 201 |
