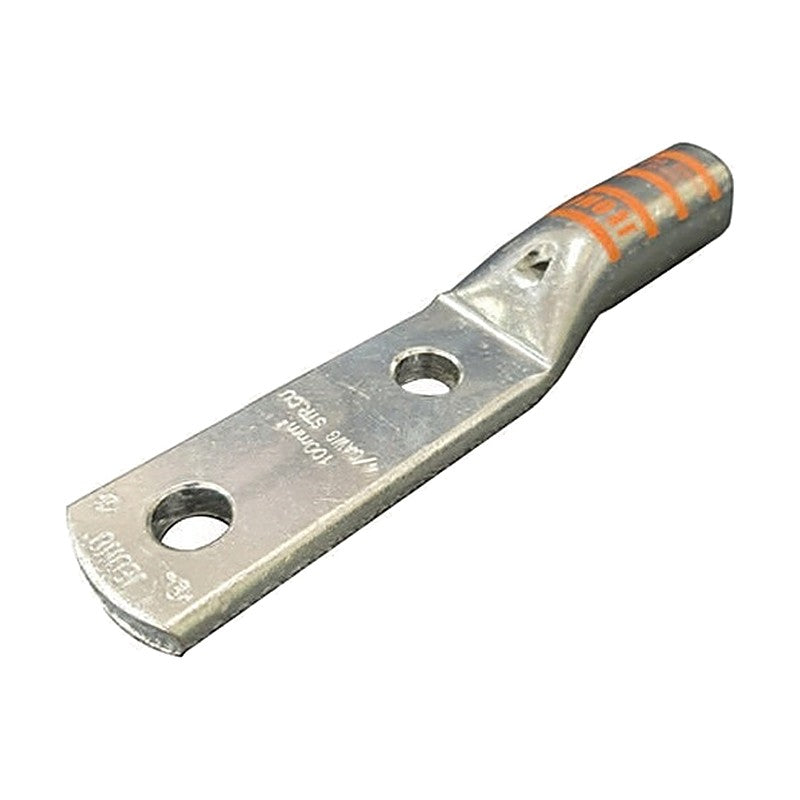

Jeoneo JOHT High-Voltage Tubular Cable Lugs, Two Hole

Jeoneo JOHT High-Voltage Tubular Cable Lugs, Two Hole

Two-hole high-voltage tubular copper cable lugs (Type HT) with inspection hole for code and flex conductors from 16 to 185 mm², round (R) or square (S) tongue.

Key features

  • With inspection hole
  • For IEC 60228 class 2 and class 5 conductors
  • Color coded to show proper die number and color

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2 and class 5
Holes 2
Jeoneo JOHT High-Voltage Tubular Cable Lugs, Two Hole
JOHT 0202-R08 Tongue form: Round | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0202-S08 Tongue form: Square | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0202-R10 Tongue form: Round | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0202-S10 Tongue form: Square | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0202-R12 Tongue form: Round | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0202-S12 Tongue form: Square | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JVCD-6 | Pack qty: 150 | Dimensions (mm): W 21, d 5.5, D 9.5, A 44.5, E 30, L 112
JOHT 0203-R08 Tongue form: Round | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JVCD-4 | Pack qty: 200 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0203-S08 Tongue form: Square | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JVCD-4 | Pack qty: 200 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0203-R10 Tongue form: Round | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JVCD-4 | Pack qty: 150 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0203-S10 Tongue form: Square | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JVCD-4 | Pack qty: 150 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0203-R12 Tongue form: Round | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JVCD-4 | Pack qty: 100 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0203-S12 Tongue form: Square | Code wire: 4 AWG / 25 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JVCD-4 | Pack qty: 100 | Dimensions (mm): W 21, d 7.2, D 11.2, A 44.5, E 33, L 115
JOHT 0204-R08 Tongue form: Round | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M8 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0204-S08 Tongue form: Square | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M8 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0204-R10 Tongue form: Round | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M10 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0204-S10 Tongue form: Square | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M10 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0204-R12 Tongue form: Round | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M12 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0204-S12 Tongue form: Square | Code wire: 2 AWG / 35 mm² | Flex wire (AWG): 3 | Stud size: M12 | Color code / die: Brown 33, JVCD-2 | Pack qty: 100 | Dimensions (mm): W 21, d 8.8, D 13, A 44.5, E 33, L 115
JOHT 0205-R08 Tongue form: Round | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0205-S08 Tongue form: Square | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0205-R10 Tongue form: Round | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0205-S10 Tongue form: Square | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0205-R12 Tongue form: Round | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0205-S12 Tongue form: Square | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JVCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 15, A 44.5, E 35, L 121
JOHT 0206-R08 Tongue form: Round | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0206-S08 Tongue form: Square | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0206-R10 Tongue form: Round | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0206-S10 Tongue form: Square | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0206-R12 Tongue form: Round | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0206-S12 Tongue form: Square | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JVCD-1/0 | Pack qty: 50 | Dimensions (mm): W 23, d 10.2, D 16, A 44.5, E 35, L 121
JOHT 0207-R08 Tongue form: Round | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-S08 Tongue form: Square | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-R10 Tongue form: Round | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-S10 Tongue form: Square | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-R12 Tongue form: Round | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-S12 Tongue form: Square | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-R14 Tongue form: Round | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M14 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-S14 Tongue form: Square | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M14 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-R16 Tongue form: Round | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0207-S16 Tongue form: Square | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JVCD-2/0 | Pack qty: 50 | Dimensions (mm): W 23, d 11.2, D 17, A 44.5, E 45, L 130
JOHT 0208-R08 Tongue form: Round | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-S08 Tongue form: Square | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-R10 Tongue form: Round | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-S10 Tongue form: Square | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-R12 Tongue form: Round | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-S12 Tongue form: Square | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-R14 Tongue form: Round | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M14 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-S14 Tongue form: Square | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M14 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-R16 Tongue form: Round | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0208-S16 Tongue form: Square | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JVCD-3/0 | Pack qty: 30 | Dimensions (mm): W 27.5, d 13.3, D 20, A 44.5, E 45, L 134
JOHT 0209-R08 Tongue form: Round | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-S08 Tongue form: Square | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-R10 Tongue form: Round | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-S10 Tongue form: Square | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-R12 Tongue form: Round | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-S12 Tongue form: Square | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-R14 Tongue form: Round | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M14 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-S14 Tongue form: Square | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M14 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-R16 Tongue form: Round | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0209-S16 Tongue form: Square | Code wire: 4/0 AWG / 100 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 50, JVCD-4/0 | Pack qty: 30 | Dimensions (mm): W 29, d 14, D 21, A 44.5, E 45, L 134
JOHT 0210-R08 Tongue form: Round | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-S08 Tongue form: Square | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-R10 Tongue form: Round | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-S10 Tongue form: Square | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-R12 Tongue form: Round | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-S12 Tongue form: Square | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-R14 Tongue form: Round | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M14 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-S14 Tongue form: Square | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M14 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-R16 Tongue form: Round | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0210-S16 Tongue form: Square | Code wire: 250 kcmil / 120 mm² | Flex wire: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Purple 54, JVCD-250 | Pack qty: 25 | Dimensions (mm): W 30.5, d 15.2, D 22.2, A 44.5, E 50, L 139
JOHT 0211-R08 Tongue form: Round | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-S08 Tongue form: Square | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-R10 Tongue form: Round | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-S10 Tongue form: Square | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-R12 Tongue form: Round | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-S12 Tongue form: Square | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-R14 Tongue form: Round | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M14 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-S14 Tongue form: Square | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M14 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-R16 Tongue form: Round | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0211-S16 Tongue form: Square | Code wire: 300 kcmil / 150 mm² | Flex wire: 250 kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JVCD-300 | Pack qty: 20 | Dimensions (mm): W 33, d 16.8, D 23.8, A 44.5, E 50, L 139
JOHT 0212-R08 Tongue form: Round | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M8 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-S08 Tongue form: Square | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M8 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-R10 Tongue form: Round | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-S10 Tongue form: Square | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-R12 Tongue form: Round | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-S12 Tongue form: Square | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-R14 Tongue form: Round | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M14 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-S14 Tongue form: Square | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M14 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-R16 Tongue form: Round | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
JOHT 0212-S16 Tongue form: Square | Code wire: 350 kcmil / 185 mm² | Flex wire: 300 kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JVCD-350 | Pack qty: 15 | Dimensions (mm): W 36, d 18.5, D 25.5, A 44.5, E 50, L 142
Cable LugsJeoneo
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOHT High-Voltage Tubular Cable Lugs, Two Hole

Brand Jeoneo·Cable Lugs

Available part numbers (90)

JOHT 0202-R08, JOHT 0202-S08, JOHT 0202-R10, JOHT 0202-S10, JOHT 0202-R12, JOHT 0202-S12, JOHT 0203-R08, JOHT 0203-S08, JOHT 0203-R10, JOHT 0203-S10 + 80 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
