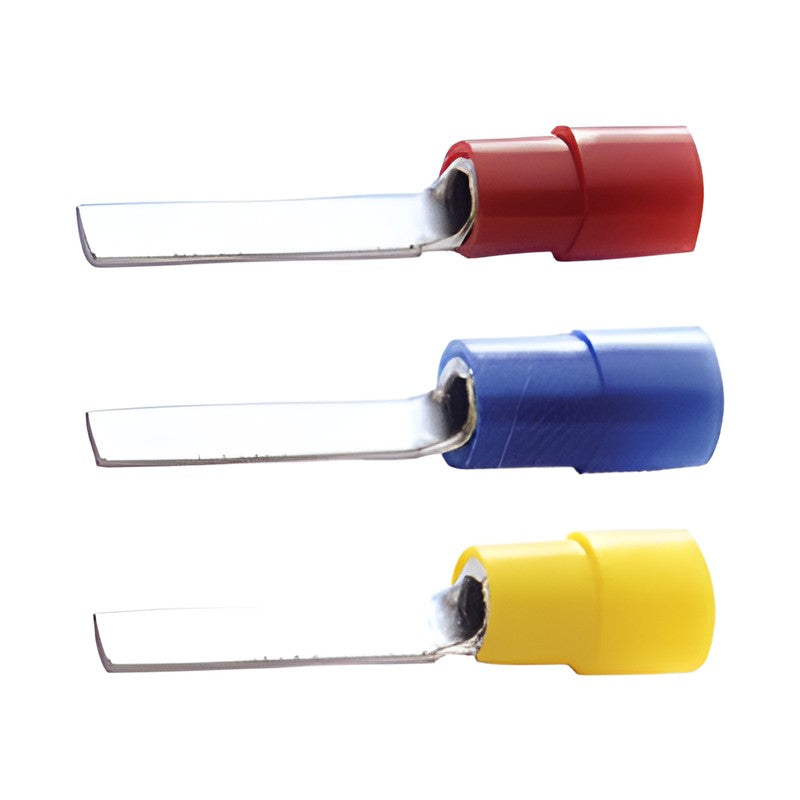

Jeoneo JONB Nylon-Insulated Blade Terminals, Electrolytic Copper
Jeoneo JONB Nylon-Insulated Blade Terminals, Electrolytic Copper
Nylon-insulated electrolytic copper blade terminals for 1.5 to 10 mm² wire, with or without brazed seam.
Key features
- Electrolytic copper, tin plated
- Nylon insulation
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Insulation | Nylon |
| JONB 152 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.65 | |
| JONB 153 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.65 | |
| JONB 154 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.65 | |
| JONB 155 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.65 | |
| JONB 252 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.65 | |
| JONB 253 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.65 | |
| JONB 254 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.65 | |
| JONB 255 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.65 | |
| JONB 4 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.8 | |
| JONB 4-2 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.8 | |
| JONB 4-3 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.8 | |
| JONB 6 | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 0.8 | |
| JONB 10 | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 17.0, D 10.8, t 0.9 |
Blade TerminalsJeoneo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JONB Nylon-Insulated Blade Terminals, Electrolytic Copper
Available part numbers (13)
JONB 152, JONB 153, JONB 154, JONB 155, JONB 252, JONB 253, JONB 254, JONB 255, JONB 4, JONB 4-2 + 3 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Blade Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JONB 152 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.65 | ||
| JONB 153 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.65 | ||
| JONB 154 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.65 | ||
| JONB 155 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.65 | ||
| JONB 252 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.65 | ||
| JONB 253 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.65 | ||
| JONB 254 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.65 | ||
| JONB 255 | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.65 | ||
| JONB 4 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.8 | ||
| JONB 4-2 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.8 | ||
| JONB 4-3 | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.8 | ||
| JONB 6 | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 0.8 | ||
| JONB 10 | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 17.0, D 10.8, t 0.9 |
