Jeoneo JOPG-TM Metallic Threaded Plugs, PG
Jeoneo JOPG-TM Metallic Threaded Plugs, PG

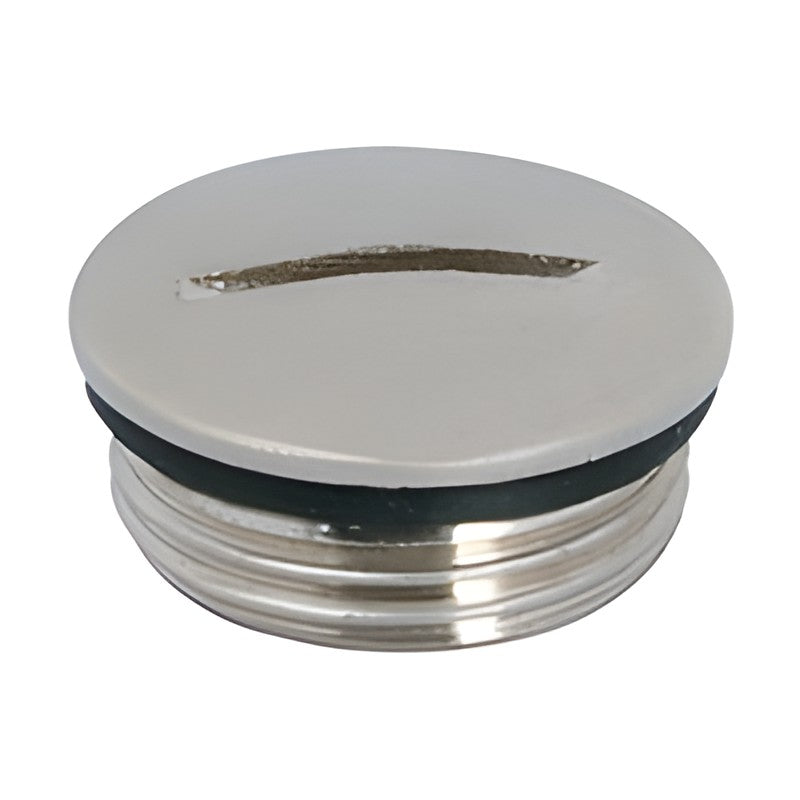

Nickel-plated brass threaded hole plugs with NBR O-seal for closing unused PG gland holes, IP54/IP68.
Key features
- Protection IP54 / IP68
- Non-general item, special order only
Specifications
| Material | Nickel-plated brass body, NBR O-seal |
|---|---|
| Protection | IP54 / IP68 |
| Working temperature | -40 to 100 °C |
| JOPG-7TM | Thread size: PG 7 | Pack qty: 500 | Dimensions (mm): L1 5, L2 12.5, H 8, D 14 | |
| JOPG-9TM | Thread size: PG 9 | Pack qty: 500 | Dimensions (mm): L1 6, L2 15.2, H 9, D 17 | |
| JOPG-13.5TM | Thread size: PG 13.5 | Pack qty: 500 | Dimensions (mm): L1 7, L2 20.4, H 10, D 22 | |
| JOPG-16TM | Thread size: PG 16 | Pack qty: 200 | Dimensions (mm): L1 7, L2 22.5, H 10, D 29 | |
| JOPG-21TM | Thread size: PG 21 | Pack qty: 200 | Dimensions (mm): L1 7, L2 28.3, H 11, D 30 | |
| JOPG-29TM | Thread size: PG 29 | Pack qty: 200 | Dimensions (mm): L1 8, L2 37, H 12, D 40 | |
| JOPG-36TM | Thread size: PG 36 | Pack qty: 100 | Dimensions (mm): L1 9, L2 47, H 15, D 50 | |
| JOPG-42TM | Thread size: PG 42 | Pack qty: 50 | Dimensions (mm): L1 10, L2 54, H 16, D 60 | |
| JOPG-48TM | Thread size: PG 48 | Pack qty: 50 | Dimensions (mm): L1 10, L2 59.3, H 16, D 65 |
Cable GlandsJeoneo
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOPG-TM Metallic Threaded Plugs, PG
Available part numbers (9)
JOPG-7TM, JOPG-9TM, JOPG-13.5TM, JOPG-16TM, JOPG-21TM, JOPG-29TM, JOPG-36TM, JOPG-42TM, JOPG-48TM
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Glands
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOPG-7TM | Thread size: PG 7 | Pack qty: 500 | Dimensions (mm): L1 5, L2 12.5, H 8, D 14 | ||
| JOPG-9TM | Thread size: PG 9 | Pack qty: 500 | Dimensions (mm): L1 6, L2 15.2, H 9, D 17 | ||
| JOPG-13.5TM | Thread size: PG 13.5 | Pack qty: 500 | Dimensions (mm): L1 7, L2 20.4, H 10, D 22 | ||
| JOPG-16TM | Thread size: PG 16 | Pack qty: 200 | Dimensions (mm): L1 7, L2 22.5, H 10, D 29 | ||
| JOPG-21TM | Thread size: PG 21 | Pack qty: 200 | Dimensions (mm): L1 7, L2 28.3, H 11, D 30 | ||
| JOPG-29TM | Thread size: PG 29 | Pack qty: 200 | Dimensions (mm): L1 8, L2 37, H 12, D 40 | ||
| JOPG-36TM | Thread size: PG 36 | Pack qty: 100 | Dimensions (mm): L1 9, L2 47, H 15, D 50 | ||
| JOPG-42TM | Thread size: PG 42 | Pack qty: 50 | Dimensions (mm): L1 10, L2 54, H 16, D 60 | ||
| JOPG-48TM | Thread size: PG 48 | Pack qty: 50 | Dimensions (mm): L1 10, L2 59.3, H 16, D 65 |
