Jeoneo JOTM Cable Tie Mounts, Nylon 6.6

Jeoneo JOTM Cable Tie Mounts, Nylon 6.6

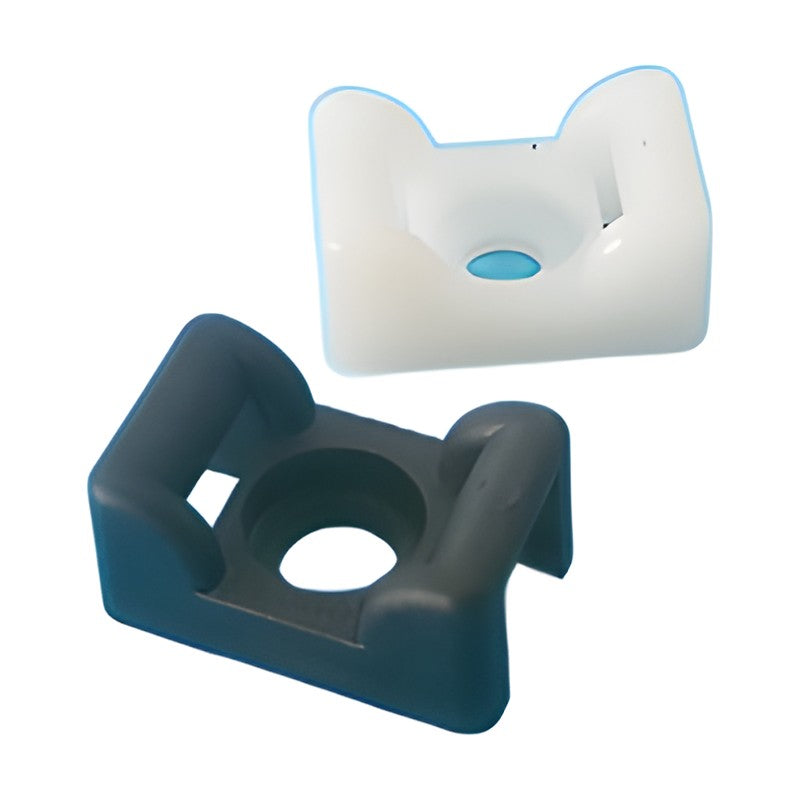

Nylon 6.6 screw-mount cable tie mounts with cradle design for maximum bundle stability.

Key features

  • Cradle design for stability of the cable bundle
  • Low profile keeps the bundle close to the mounting surface

Specifications

Material Nylon 6.6
Pack qty 1,000, 1,000
Jeoneo JOTM Cable Tie Mounts, Nylon 6.6
JOTM-1S6 Color: Natural, Black | Max. tie width (mm): 3.6 | Dimensions (mm): T 4.0, A 12.8, B 7.0, C 5.8, D 3.3, E 5.8
JOTM-2S6 Color: Natural, Black | Max. tie width (mm): 4.8 | Dimensions (mm): T 5.0, A 15.0, B 9.5, C 7.0, D 3.8, E 7.3
JOTM-2S8 Color: Natural, Black | Max. tie width (mm): 4.8 | Dimensions (mm): T 5.0, A 15.0, B 9.5, C 7.0, D 4.6, E 7.3
JOTM-3S10 Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 5.1, E 10.0
JOTM-3S25 Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 6.6, E 10.0
JOTM-4S10 JOTM-4S25 Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 9.0, A 23.3, B 16.0, C 9.8, D 5.2, E 10.8
JOTM-3S8 Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 4.6, E 10.0
JOTM-4S25 Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 9.0, A 23.3, B 16.0, C 9.8, D 6.3, E 10.8
JOTM-5S10 Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 10.4, A 20.8, B 17.4, C 10.4, D 5.9, E 11.2
Cable Tie MountsJeoneo
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOTM Cable Tie Mounts, Nylon 6.6

Brand Jeoneo·Cable Tie Mounts

Available part numbers (9)

JOTM-1S6, JOTM-2S6, JOTM-2S8, JOTM-3S10, JOTM-3S25, JOTM-4S10 JOTM-4S25, JOTM-3S8, JOTM-4S25, JOTM-5S10

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOTM Cable Tie Mounts, Nylon 6.6
0 selected
RFQ List (0)
Product codeSpec
JOTM-1S6Color: Natural, Black | Max. tie width (mm): 3.6 | Dimensions (mm): T 4.0, A 12.8, B 7.0, C 5.8, D 3.3, E 5.8
JOTM-2S6Color: Natural, Black | Max. tie width (mm): 4.8 | Dimensions (mm): T 5.0, A 15.0, B 9.5, C 7.0, D 3.8, E 7.3
JOTM-2S8Color: Natural, Black | Max. tie width (mm): 4.8 | Dimensions (mm): T 5.0, A 15.0, B 9.5, C 7.0, D 4.6, E 7.3
JOTM-3S10Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 5.1, E 10.0
JOTM-3S25Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 6.6, E 10.0
JOTM-4S10 JOTM-4S25Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 9.0, A 23.3, B 16.0, C 9.8, D 5.2, E 10.8
JOTM-3S8Color: Natural, Black | Max. tie width (mm): 7.6 | Dimensions (mm): T 8.5, A 23.8, B 15.2, C 11.3, D 4.6, E 10.0
JOTM-4S25Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 9.0, A 23.3, B 16.0, C 9.8, D 6.3, E 10.8
JOTM-5S10Color: Natural | Max. tie width (mm): 9.0 | Dimensions (mm): T 10.4, A 20.8, B 17.4, C 10.4, D 5.9, E 11.2
