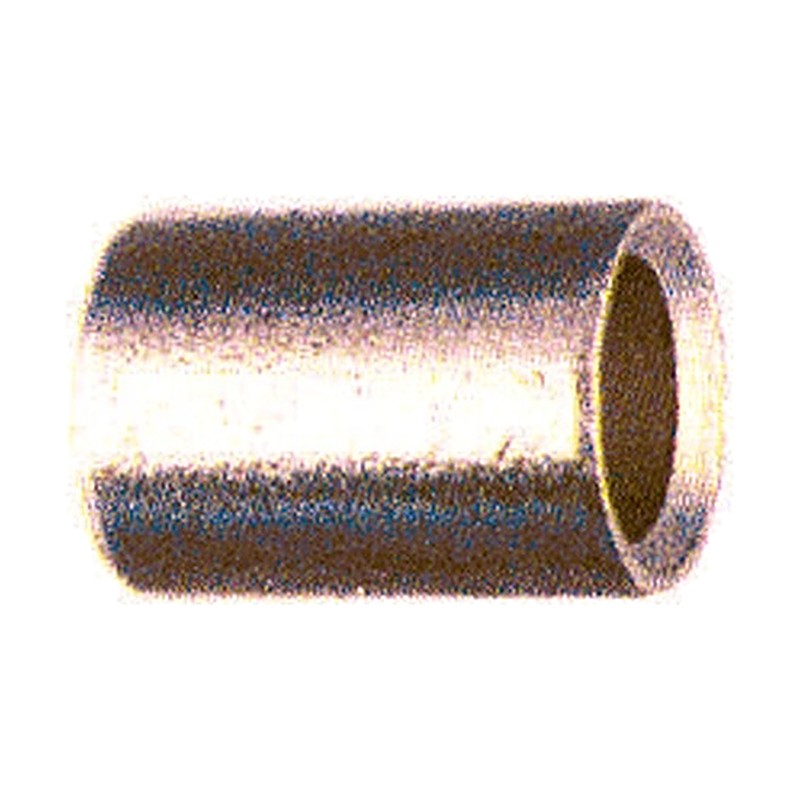

Jeoneo JS Code Conductor Butt Splices, Short Barrel
Jeoneo JS Code Conductor Butt Splices, Short Barrel
Short-barrel copper butt splices (Type S) for 1.5 to 150 mm² code conductors.
Key features
- Color stripe identifies wire range for 1.5-6 mm²
- Color coded to show proper die number and color (10-150 mm²)
- UL listed 486A-486B, up to 35 kV
Specifications
| Material | Electrolytic copper (TPC) |
|---|---|
| Surface | Tin plated |
| Conductor class | IEC 60228 class 2 |
| JS 015 | Wire range: 20~16 AWG / 1.5 mm² | Color code / die: Red | Pack qty: 2,000 | Dimensions (mm): d1 2.0, D 3.0, L 7.5 | |
| JS 025 | Wire range: 16~14 AWG / 2.5 mm² | Color code / die: Blue | Pack qty: 2,000 | Dimensions (mm): d1 2.5, D 3.5, L 7.5 | |
| JS 4 | Wire range: 14~12 AWG / 4 mm² | Color code / die: Brown | Pack qty: 2,000 | Dimensions (mm): d1 3.2, D 4.5, L 7.5 | |
| JS 6 | Wire range: 12~10 AWG / 6 mm² | Color code / die: Yellow | Pack qty: 2,000 | Dimensions (mm): d1 4.0, D 5.5, L 7.5 | |
| JS 10 | Wire range: 8 AWG / 10 mm² | Color code / die: Red | Pack qty: 500 | Dimensions (mm): d1 4.7, D 6.7, L 15 | |
| JS 16 | Wire range: 6 AWG / 16 mm² | Color code / die: Blue | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 17 | |
| JS 25 | Wire range: 4~3 AWG / 25 mm² | Color code / die: Gray | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 20 | |
| JS 35 | Wire range: 2 AWG / 35 mm² | Color code / die: Brown | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 23 | |
| JS 50 | Wire range: 1 AWG / 50 mm² | Color code / die: Green | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 25 | |
| JS 60 | Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink | Pack qty: 100 | Dimensions (mm): d1 10.2, D 13.2, L 25 | |
| JS 70 | Wire range: 2/0 AWG / 70 mm² | Color code / die: Black | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 30 | |
| JS 95 | Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange | Pack qty: 50 | Dimensions (mm): d1 13.5, D 17, L 33 | |
| JS 100 | Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange | Pack qty: 50 | Dimensions (mm): d1 14, D 18, L 33 | |
| JS 120 | Wire range: 250Kcmil / 120 mm² | Color code / die: Purple | Pack qty: 70 | Dimensions (mm): d1 15.2, D 19, L 35 | |
| JS 150 | Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow | Pack qty: 40 | Dimensions (mm): d1 17, D 21, L 35 |
Butt SplicesJeoneo
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JS Code Conductor Butt Splices, Short Barrel
Available part numbers (15)
JS 015, JS 025, JS 4, JS 6, JS 10, JS 16, JS 25, JS 35, JS 50, JS 60 + 5 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Butt Splices
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JS 015 | Wire range: 20~16 AWG / 1.5 mm² | Color code / die: Red | Pack qty: 2,000 | Dimensions (mm): d1 2.0, D 3.0, L 7.5 | ||
| JS 025 | Wire range: 16~14 AWG / 2.5 mm² | Color code / die: Blue | Pack qty: 2,000 | Dimensions (mm): d1 2.5, D 3.5, L 7.5 | ||
| JS 4 | Wire range: 14~12 AWG / 4 mm² | Color code / die: Brown | Pack qty: 2,000 | Dimensions (mm): d1 3.2, D 4.5, L 7.5 | ||
| JS 6 | Wire range: 12~10 AWG / 6 mm² | Color code / die: Yellow | Pack qty: 2,000 | Dimensions (mm): d1 4.0, D 5.5, L 7.5 | ||
| JS 10 | Wire range: 8 AWG / 10 mm² | Color code / die: Red | Pack qty: 500 | Dimensions (mm): d1 4.7, D 6.7, L 15 | ||
| JS 16 | Wire range: 6 AWG / 16 mm² | Color code / die: Blue | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 17 | ||
| JS 25 | Wire range: 4~3 AWG / 25 mm² | Color code / die: Gray | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 20 | ||
| JS 35 | Wire range: 2 AWG / 35 mm² | Color code / die: Brown | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 23 | ||
| JS 50 | Wire range: 1 AWG / 50 mm² | Color code / die: Green | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 25 | ||
| JS 60 | Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink | Pack qty: 100 | Dimensions (mm): d1 10.2, D 13.2, L 25 | ||
| JS 70 | Wire range: 2/0 AWG / 70 mm² | Color code / die: Black | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 30 | ||
| JS 95 | Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange | Pack qty: 50 | Dimensions (mm): d1 13.5, D 17, L 33 | ||
| JS 100 | Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange | Pack qty: 50 | Dimensions (mm): d1 14, D 18, L 33 | ||
| JS 120 | Wire range: 250Kcmil / 120 mm² | Color code / die: Purple | Pack qty: 70 | Dimensions (mm): d1 15.2, D 19, L 35 | ||
| JS 150 | Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow | Pack qty: 40 | Dimensions (mm): d1 17, D 21, L 35 |
