Jeoneo P Screw-On Wire Connectors

Jeoneo P Screw-On Wire Connectors

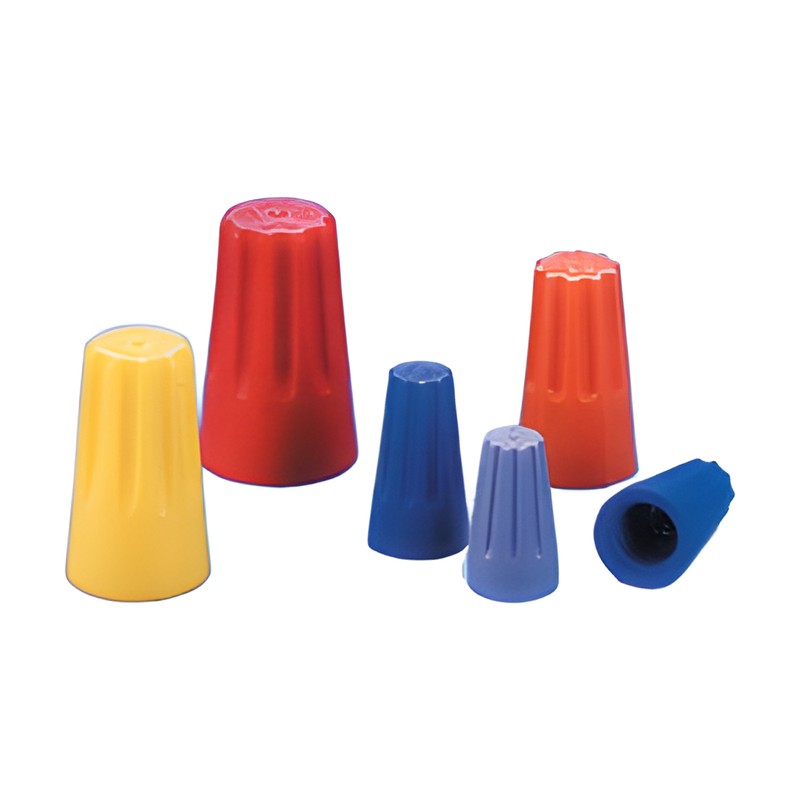

Thermoplastic screw-on wire connectors with square wire spring, color-coded in five industry-standard sizes, UL 486C listed and CSA certified.

Key features

  • UL 486C listed and CSA 22.2 No. 188 certified
  • Five industry-standard colors
  • Thermoplastic UL94 V-2 flame-retardant shell
  • Rated 600 V max. building wiring, 1,000 V max. fixtures and signs
  • Socket tools available for installation

Specifications

Shell Thermoplastic, UL94 V-2
Jeoneo P Screw-On Wire Connectors
P1 Dimensions (mm): A 3.80, B 6.70, C 8.60, D 5.80, E 15.20 | Color: Gray | Rating / wire range: 300V Max No.22-No.14 AWG., Tem. 105℃. (221℉) Max.1 #16 w/1 #18w/1 #20, Min.2 #22 | Pack qty (bag): 1,000 | Pack qty (carton): 20,000
P2 Dimensions (mm): A 4.10, B 7.0, C 9.80, D 5.90, E 17.60 | Color: Blue | Rating / wire range: 300V Max No.22-No.14 AWG., Tem. 105℃. (221℉) Max.3 #16, Min.2 #22 | Pack qty (bag): 1,000 | Pack qty (carton): 10,000
P3 Dimensions (mm): A 5.0, B 9.90, C 12.20, D 7.80, E 22.0 | Color: Orange | Rating / wire range: 600V Max No.22-No.14 AWG., Tem.105℃. (221℉) Max.4 #16 w/1 #20, Min.1 #18 w/1 #20 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P4 Dimensions (mm): A 6.0, B 11.20, C 14.0, D 7.90, E 24.0 | Color: Yellow | Rating / wire range: 600V Max No.22-No.10 AWG., Tem.105℃. (221℉) Max.2 #12 w/2 #14, Min.3 #20 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P6 Dimensions (mm): A 7.50, B 13.0, C 16.40, D 9.15, E 26.50 | Color: Red | Rating / wire range: 600V Max No.22-No.10 AWG., Tem.105℃. (221℉) Max.2 #10 Sol w/2 #12 str, Min.3 #18 | Pack qty (bag): 500 | Pack qty (carton): 5,000
Wire ConnectorsJeoneo
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo P Screw-On Wire Connectors

Brand Jeoneo·Wire Connectors

Available part numbers (5)

P1, P2, P3, P4, P6

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo P Screw-On Wire Connectors
0 selected
RFQ List (0)
Product codeSpec
P1Dimensions (mm): A 3.80, B 6.70, C 8.60, D 5.80, E 15.20 | Color: Gray | Rating / wire range: 300V Max No.22-No.14 AWG., Tem. 105℃. (221℉) Max.1 #16 w/1 #18w/1 #20, Min.2 #22 | Pack qty (bag): 1,000 | Pack qty (carton): 20,000
P2Dimensions (mm): A 4.10, B 7.0, C 9.80, D 5.90, E 17.60 | Color: Blue | Rating / wire range: 300V Max No.22-No.14 AWG., Tem. 105℃. (221℉) Max.3 #16, Min.2 #22 | Pack qty (bag): 1,000 | Pack qty (carton): 10,000
P3Dimensions (mm): A 5.0, B 9.90, C 12.20, D 7.80, E 22.0 | Color: Orange | Rating / wire range: 600V Max No.22-No.14 AWG., Tem.105℃. (221℉) Max.4 #16 w/1 #20, Min.1 #18 w/1 #20 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P4Dimensions (mm): A 6.0, B 11.20, C 14.0, D 7.90, E 24.0 | Color: Yellow | Rating / wire range: 600V Max No.22-No.10 AWG., Tem.105℃. (221℉) Max.2 #12 w/2 #14, Min.3 #20 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P6Dimensions (mm): A 7.50, B 13.0, C 16.40, D 9.15, E 26.50 | Color: Red | Rating / wire range: 600V Max No.22-No.10 AWG., Tem.105℃. (221℉) Max.2 #10 Sol w/2 #12 str, Min.3 #18 | Pack qty (bag): 500 | Pack qty (carton): 5,000
