JRT KCS Heavy-Load Shock Absorber (Vacuum Type)

JRT KCS Heavy-Load Shock Absorber (Vacuum Type)

Non-adjustable heavy-load hydraulic shock absorber for vacuum use.

Key features

  • Hydraulic shock absorber for end-of-stroke cushioning of pneumatic actuators
  • Supplied with lock nut
  • Threaded body for direct mounting

Specifications

Suffix legend N = electroless nickel plating, B = bumper head, AK = for vacuum use, 2 = heavy-load type
Adjustable No
Bumper head No

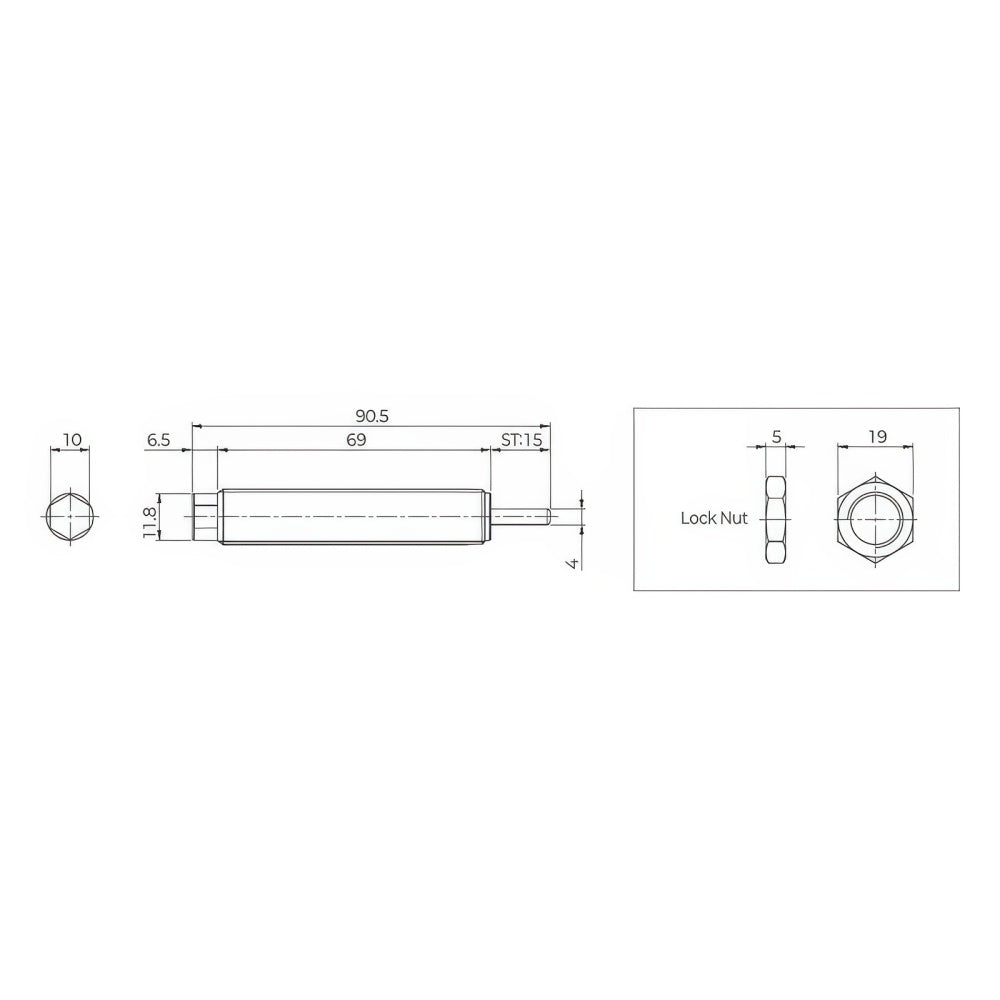

KCS14-15-2-AK Stroke: 15 mm | Thread size: M14 x 1.5 | Max. energy per cycle: 34 N·m | Max. energy per hour: 51,000 N·m/h | Effective weight: 17 to 84 kg | Recoil force (extended/compressed): 3.8 / 13.3 N | Weight: 43 g | Adjustable: No | Bumper head: No | Compatible JRT models: SSUA25
KCS20-20-2-AK Stroke: 20 mm | Thread size: M20 x 1.5 | Max. energy per cycle: 105 N·m | Max. energy per hour: 55,000 N·m/h | Effective weight: 36 to 210 kg | Recoil force (extended/compressed): 8.2 / 23 N | Weight: 140 g | Adjustable: No | Bumper head: No | Compatible JRT models: SSUA32, SSUB40
Shock AbsorbersJRT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT KCS Heavy-Load Shock Absorber (Vacuum Type)

Brand JRT·Shock Absorbers

Available part numbers (2)

KCS14-15-2-AK, KCS20-20-2-AK

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KCS14-15-2-AKStroke: 15 mm | Thread size: M14 x 1.5 | Max. energy per cycle: 34 N·m | Max. energy per hour: 51,000 N·m/h | Effective weight: 17 to 84 kg | Recoil force (extended/compressed): 3.8 / 13.3 N | Weight: 43 g | Adjustable: No | Bumper head: No | Compatible JRT models: SSUA25
KCS20-20-2-AKStroke: 20 mm | Thread size: M20 x 1.5 | Max. energy per cycle: 105 N·m | Max. energy per hour: 55,000 N·m/h | Effective weight: 36 to 210 kg | Recoil force (extended/compressed): 8.2 / 23 N | Weight: 140 g | Adjustable: No | Bumper head: No | Compatible JRT models: SSUA32, SSUB40
