JRT KMS Miniature Shock Absorber

JRT KMS Miniature Shock Absorber

Compact non-adjustable hydraulic shock absorber for small pneumatic actuators.

Key features

  • Hydraulic shock absorber for end-of-stroke cushioning of pneumatic actuators
  • Supplied with lock nut
  • Threaded body for direct mounting
  • Bumper head version available

Specifications

Suffix legend N = electroless nickel plating, B = bumper head, AK = for vacuum use, 2 = heavy-load type
Adjustable No

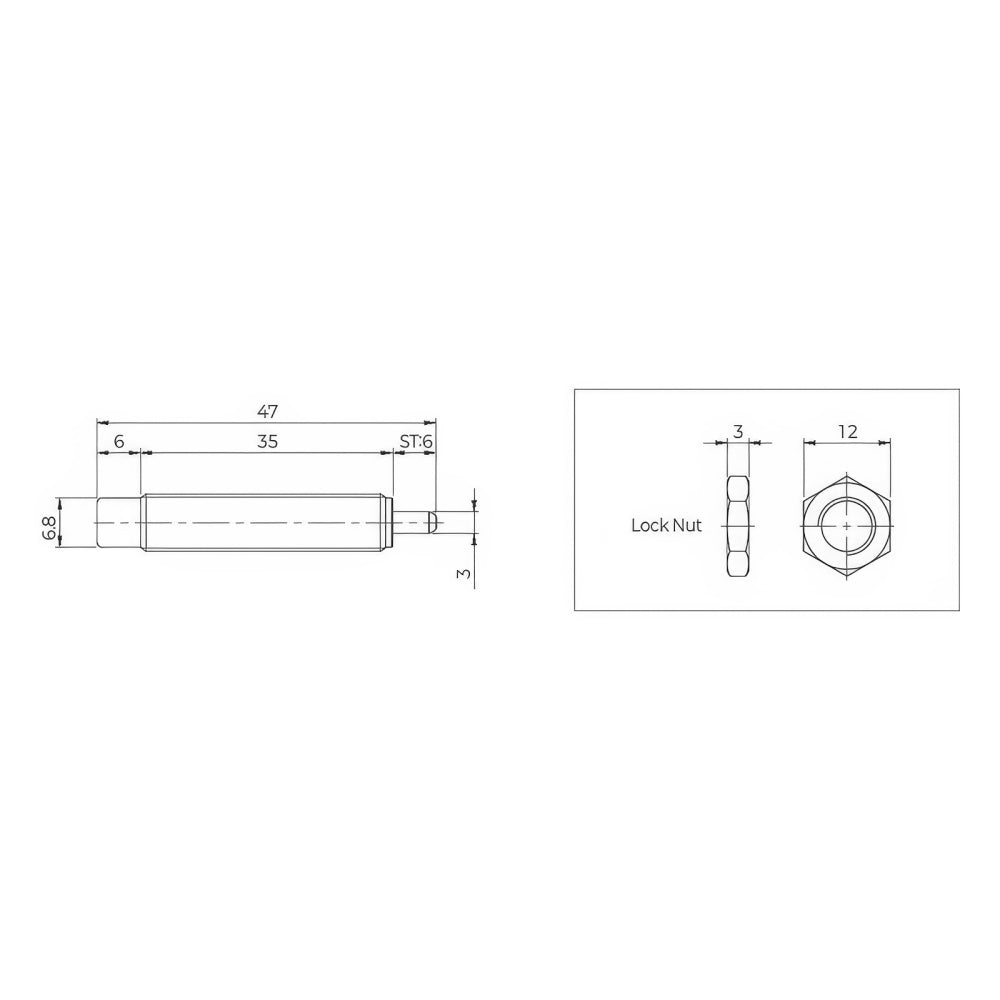

KMS08-06N Stroke: 6 mm | Thread size: M8 x 1.0 | Max. energy per cycle: 5 N·m | Max. energy per hour: 8,000 N·m/h | Effective weight: 0.8 to 2.8 kg | Recoil force (extended/compressed): 2.2 / 5.8 N | Weight: 10 g | Adjustable: No | Bumper head: No | Compatible JRT models: NE16, RTU25
KMS10-08N Stroke: 8 mm | Thread size: M10 x 1.0 | Max. energy per cycle: 11 N·m | Max. energy per hour: 14,500 N·m/h | Effective weight: 1.8 to 6.1 kg | Recoil force (extended/compressed): 2.5 / 6.9 N | Weight: 15.5 g | Adjustable: No | Bumper head: No | Compatible JRT models: SRJA16, SRJA20
KMS10-08B Stroke: 8 mm | Thread size: M10 x 1.0 | Max. energy per cycle: 11 N·m | Max. energy per hour: 14,500 N·m/h | Effective weight: 1.8 to 6.1 kg | Recoil force (extended/compressed): 2.5 / 6.9 N | Weight: 15.5 g | Adjustable: No | Bumper head: Yes | Compatible JRT models: SC20
Shock AbsorbersJRT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT KMS Miniature Shock Absorber

Brand JRT·Shock Absorbers

Available part numbers (3)

KMS08-06N, KMS10-08N, KMS10-08B

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KMS08-06NStroke: 6 mm | Thread size: M8 x 1.0 | Max. energy per cycle: 5 N·m | Max. energy per hour: 8,000 N·m/h | Effective weight: 0.8 to 2.8 kg | Recoil force (extended/compressed): 2.2 / 5.8 N | Weight: 10 g | Adjustable: No | Bumper head: No | Compatible JRT models: NE16, RTU25
KMS10-08NStroke: 8 mm | Thread size: M10 x 1.0 | Max. energy per cycle: 11 N·m | Max. energy per hour: 14,500 N·m/h | Effective weight: 1.8 to 6.1 kg | Recoil force (extended/compressed): 2.5 / 6.9 N | Weight: 15.5 g | Adjustable: No | Bumper head: No | Compatible JRT models: SRJA16, SRJA20
KMS10-08BStroke: 8 mm | Thread size: M10 x 1.0 | Max. energy per cycle: 11 N·m | Max. energy per hour: 14,500 N·m/h | Effective weight: 1.8 to 6.1 kg | Recoil force (extended/compressed): 2.5 / 6.9 N | Weight: 15.5 g | Adjustable: No | Bumper head: Yes | Compatible JRT models: SC20
