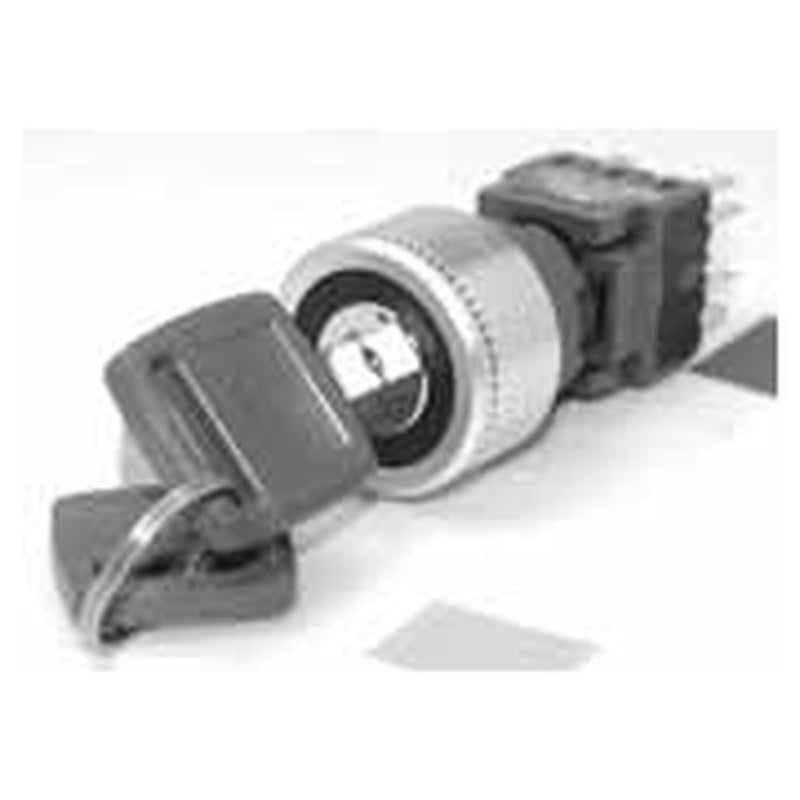

KACON F16 Series Selector Switches (2 and 3 Position)

KACON F16 Series Selector Switches (2 and 3 Position)

KACON F16 non-illuminated black-knob selector switches in 2- and 3-position, spring-return or maintained versions for Ø16 and Ø20 flush panel holes.

Key features

  • 2-position (90° maintained / 70° spring return) and 3-position types
  • Ø16 round, square, rectangular; Ø20 flush round
  • Contacts 1N/O+1N/C to 3N/O+3N/C (3-position from 2N/O+2N/C)
  • Black knob; IP65 front protection
  • Function codes per catalogue ordering chart (0, 1, 2, 3, 6, 7)

Specifications

Illumination Non-illuminated
Knob colour Black
Contact rating 3A 110VAC / 0.7A 24VDC (resistive)
Max. rated voltage 250VAC / 110VDC
Contact material Ag alloy (24K gold plated)
Ambient temperature -20 to +70°C (no icing)
Mechanical life Min. 250,000 operations
Degree of protection IP65
Source KACON F16 Catalog catalogue, p. 2-3, 5, 12-13
F16-441K-0 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 1N/O + 1N/C
F16-442K-0 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 2N/O + 2N/C
F16-443K-0 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 3N/O + 3N/C
F16-441K-2 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 1N/O + 1N/C
F16-442K-2 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-443K-2 Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-542K-1 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Contacts: 2N/O + 2N/C
F16-543K-1 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Contacts: 3N/O + 3N/C
F16-542K-3 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-543K-3 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-542K-6 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Contacts: 2N/O + 2N/C
F16-543K-6 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Contacts: 3N/O + 3N/C
F16-542K-7 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Contacts: 2N/O + 2N/C
F16-543K-7 Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Contacts: 3N/O + 3N/C
F16-411K-0 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 1N/O + 1N/C
F16-412K-0 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 2N/O + 2N/C
F16-413K-0 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Contacts: 3N/O + 3N/C
F16-411K-2 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 1N/O + 1N/C
F16-412K-2 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-413K-2 Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-421K-0 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Contacts: 1N/O + 1N/C
F16-422K-0 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Contacts: 2N/O + 2N/C
F16-423K-0 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Contacts: 3N/O + 3N/C
F16-421K-2 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Contacts: 1N/O + 1N/C
F16-422K-2 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-423K-2 Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-431K-0 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Contacts: 1N/O + 1N/C
F16-432K-0 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Contacts: 2N/O + 2N/C
F16-433K-0 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Contacts: 3N/O + 3N/C
F16-431K-2 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Contacts: 1N/O + 1N/C
F16-432K-2 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-433K-2 Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-512K-1 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Contacts: 2N/O + 2N/C
F16-513K-1 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Contacts: 3N/O + 3N/C
F16-512K-3 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-513K-3 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-512K-6 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Contacts: 2N/O + 2N/C
F16-513K-6 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Contacts: 3N/O + 3N/C
F16-512K-7 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Contacts: 2N/O + 2N/C
F16-513K-7 Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Contacts: 3N/O + 3N/C
F16-522K-1 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Contacts: 2N/O + 2N/C
F16-523K-1 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Contacts: 3N/O + 3N/C
F16-522K-3 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-523K-3 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-522K-6 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Contacts: 2N/O + 2N/C
F16-523K-6 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Contacts: 3N/O + 3N/C
F16-522K-7 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Contacts: 2N/O + 2N/C
F16-523K-7 Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Contacts: 3N/O + 3N/C
F16-532K-1 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Contacts: 2N/O + 2N/C
F16-533K-1 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Contacts: 3N/O + 3N/C
F16-532K-3 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Contacts: 2N/O + 2N/C
F16-533K-3 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Contacts: 3N/O + 3N/C
F16-532K-6 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Contacts: 2N/O + 2N/C
F16-533K-6 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Contacts: 3N/O + 3N/C
F16-532K-7 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Contacts: 2N/O + 2N/C
F16-533K-7 Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Contacts: 3N/O + 3N/C
Selector SwitchesKACON
56 product codes available in this family
