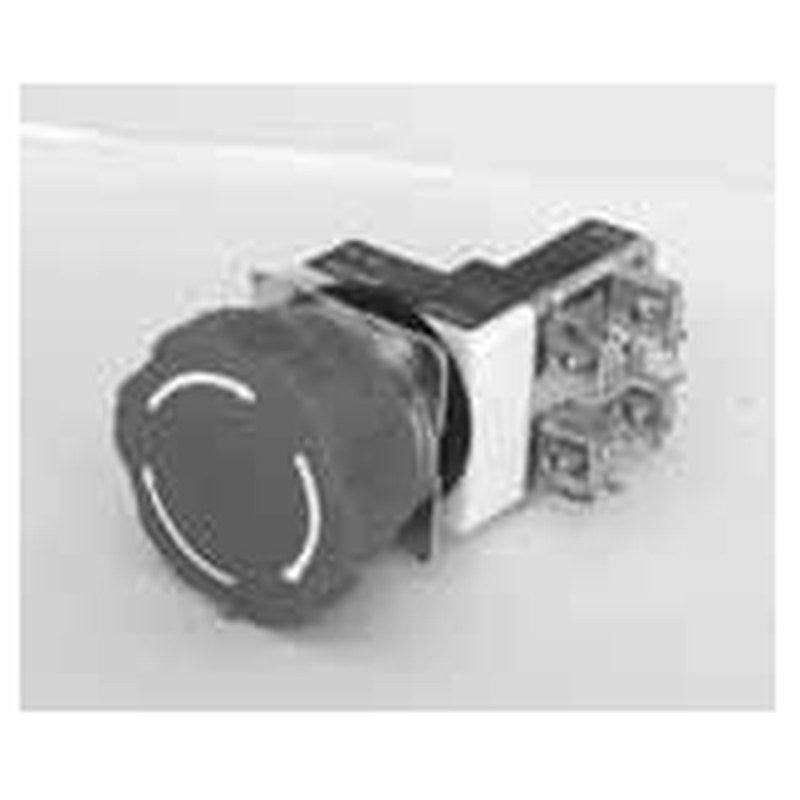

• KACON H Series Ø25/Ø30 Emergency Stop Switches
1 1

KACON H Series Ø25/Ø30 Emergency Stop Switches

KACON H Series Ø25/Ø30 Emergency Stop Switches

KACON H Series non-illuminated red emergency stop switches for Ø25/Ø30 holes in standard, waterproof and Ø45-head versions.

Key features

  • Standard (R) and waterproof reset (A) versions
  • Ø45 large head versions (F, AF)
  • Red mushroom operator
  • Contacts rated 10A 250VAC
  • Min. 65mm hole spacing

Specifications

Colour Red
Illumination Non-illuminated
Contact rating 10A 250VAC AC1 / 3A 250VAC AC3
Contact material Ag alloy
Degree of protection IP65
Ambient temperature -25 to +70°C (no icing)
Panel cut-out Ø25.5 (+0.4) / Ø30.5 (+0.5)
Source KACON H Series Catalog catalogue, p. 2, 4
H25-81R Panel hole: Ø25 | Version: Standard | Contacts: 1N/O + 1N/C
H30-81R Panel hole: Ø30 | Version: Standard | Contacts: 1N/O + 1N/C
H25-81A Panel hole: Ø25 | Version: Waterproof | Contacts: 1N/O+1N/C or 2N/O+2N/C
H30-81A Panel hole: Ø30 | Version: Waterproof | Contacts: 1N/O+1N/C or 2N/O+2N/C
H25-81F Panel hole: Ø25 | Version: Ø45 head | Contacts: 1N/O + 1N/C
H30-81F Panel hole: Ø30 | Version: Ø45 head | Contacts: 1N/O + 1N/C
H25-81AF Panel hole: Ø25 | Version: Ø45 head, waterproof | Contacts: 1N/O + 1N/C
H30-81AF Panel hole: Ø30 | Version: Ø45 head, waterproof | Contacts: 1N/O + 1N/C
Emergency Stop SwitchesKACON
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON H Series Ø25/Ø30 Emergency Stop Switches

Brand KACON·Emergency Stop Switches

Available part numbers (8)

H25-81R, H30-81R, H25-81A, H30-81A, H25-81F, H30-81F, H25-81AF, H30-81AF

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H25-81RPanel hole: Ø25 | Version: Standard | Contacts: 1N/O + 1N/C
H30-81RPanel hole: Ø30 | Version: Standard | Contacts: 1N/O + 1N/C
H25-81APanel hole: Ø25 | Version: Waterproof | Contacts: 1N/O+1N/C or 2N/O+2N/C
H30-81APanel hole: Ø30 | Version: Waterproof | Contacts: 1N/O+1N/C or 2N/O+2N/C
H25-81FPanel hole: Ø25 | Version: Ø45 head | Contacts: 1N/O + 1N/C
H30-81FPanel hole: Ø30 | Version: Ø45 head | Contacts: 1N/O + 1N/C
H25-81AFPanel hole: Ø25 | Version: Ø45 head, waterproof | Contacts: 1N/O + 1N/C
H30-81AFPanel hole: Ø30 | Version: Ø45 head, waterproof | Contacts: 1N/O + 1N/C
