• Siemens SENTRON 3KC0 Manual Transfer Switching Equipment (16–1600 A)
1 1

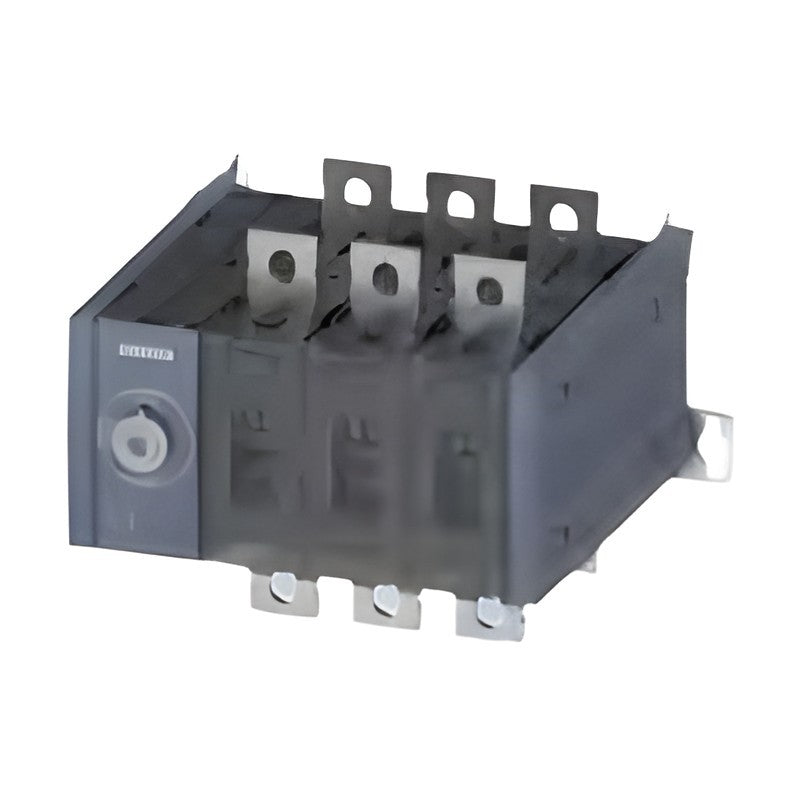

Siemens SENTRON 3KC0 Manual Transfer Switching Equipment (16–1600 A)

Siemens SENTRON 3KC0 Manual Transfer Switching Equipment (16–1600 A)

Siemens SENTRON 3KC0 manual transfer switching equipment (MTSE) as basic units without handle, sizes 1 to 5, 16 to 1600 A, 3- and 4-pole.

Key features

  • Sizes 1 and 2 with box terminals (16 … 160 A), DIN-rail and floor mounting
  • Sizes 3 … 5 with flat terminals (200 … 1600 A), floor mounting
  • Front operating mechanism; handles and door-coupling mechanisms as accessories
  • Bridging bars additionally required for the connection side

Specifications

Brand Siemens SENTRON
Series 3KC0 MTSE
Version Basic unit without handle
Catalog chapter 9 Transfer Switching Equipment
Product group Transfer switching equipment
Standard IEC 60947-3
Note Bridging bars required, conn. side
Source Siemens Catalog LV 10 · 2026, p. 790-791
3KC0316-2ME00-0AA0 Size: 1 | Rated current Iu: 16 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0416-2ME00-0AA0 Size: 1 | Rated current Iu: 16 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0322-2ME00-0AA0 Size: 1 | Rated current Iu: 32 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0422-2ME00-0AA0 Size: 1 | Rated current Iu: 32 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0326-2ME00-0AA0 Size: 1 | Rated current Iu: 63 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0426-2ME00-0AA0 Size: 1 | Rated current Iu: 63 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0328-2NE00-0AA0 Size: 2 | Rated current Iu: 80 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0428-2NE00-0AA0 Size: 2 | Rated current Iu: 80 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0330-2NE00-0AA0 Size: 2 | Rated current Iu: 100 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0430-2NE00-0AA0 Size: 2 | Rated current Iu: 100 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0332-2NE00-0AA0 Size: 2 | Rated current Iu: 125 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0432-2NE00-0AA0 Size: 2 | Rated current Iu: 125 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0334-2NE00-0AA0 Size: 2 | Rated current Iu: 160 A | Terminals: Box terminal | Poles: 3-pole | Mounting: DIN rail and floor
3KC0434-2NE00-0AA0 Size: 2 | Rated current Iu: 160 A | Terminals: Box terminal | Poles: 4-pole | Mounting: DIN rail and floor
3KC0336-0PE00-0AA0 Size: 3 | Rated current Iu: 200 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0436-0PE00-0AA0 Size: 3 | Rated current Iu: 200 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0338-0PE00-0AA0 Size: 3 | Rated current Iu: 250 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0438-0PE00-0AA0 Size: 3 | Rated current Iu: 250 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0340-0PE00-0AA0 Size: 3 | Rated current Iu: 315 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0440-0PE00-0AA0 Size: 3 | Rated current Iu: 315 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0342-0PE00-0AA0 Size: 3 | Rated current Iu: 400 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0442-0PE00-0AA0 Size: 3 | Rated current Iu: 400 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0344-0QE00-0AA0 Size: 4 | Rated current Iu: 500 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0444-0QE00-0AA0 Size: 4 | Rated current Iu: 500 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0346-0QE00-0AA0 Size: 4 | Rated current Iu: 630 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0446-0QE00-0AA0 Size: 4 | Rated current Iu: 630 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0348-0QE00-0AA0 Size: 4 | Rated current Iu: 800 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0448-0QE00-0AA0 Size: 4 | Rated current Iu: 800 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0350-0RE00-0AA0 Size: 5 | Rated current Iu: 1000 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0450-0RE00-0AA0 Size: 5 | Rated current Iu: 1000 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0352-0RE00-0AA0 Size: 5 | Rated current Iu: 1250 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0452-0RE00-0AA0 Size: 5 | Rated current Iu: 1250 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
3KC0354-0RE00-0AA0 Size: 5 | Rated current Iu: 1600 A | Terminals: Flat terminal | Poles: 3-pole | Mounting: Floor
3KC0454-0RE00-0AA0 Size: 5 | Rated current Iu: 1600 A | Terminals: Flat terminal | Poles: 4-pole | Mounting: Floor
Switch DisconnectorsSiemens
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3KC0 Manual Transfer Switching Equipment (16–1600 A)

Brand Siemens·Switch Disconnectors

Available part numbers (34)

3KC0316-2ME00-0AA0, 3KC0416-2ME00-0AA0, 3KC0322-2ME00-0AA0, 3KC0422-2ME00-0AA0, 3KC0326-2ME00-0AA0, 3KC0426-2ME00-0AA0, 3KC0328-2NE00-0AA0, 3KC0428-2NE00-0AA0, 3KC0330-2NE00-0AA0, 3KC0430-2NE00-0AA0 + 24 more — see full table ↓
