• KACON J2 Series Ø22/Ø25 Selector and Key Selector Switches
1 1

KACON J2 Series Ø22/Ø25 Selector and Key Selector Switches

KACON J2 Series Ø22/Ø25 Selector and Key Selector Switches

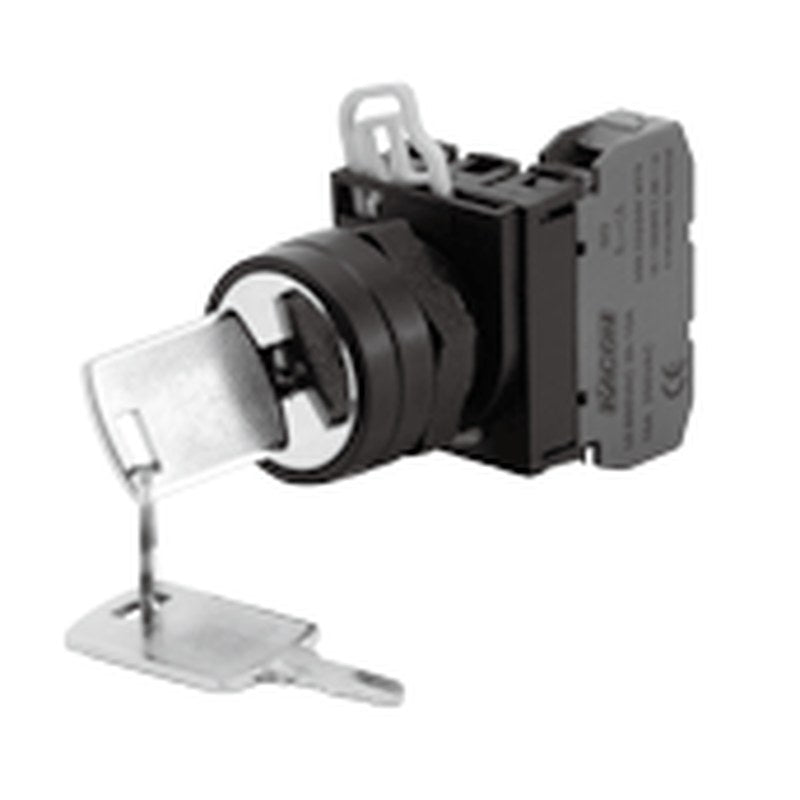

KACON J2 maintained selector switches (non-illuminated and LED-illuminated) and key selectors in 2- and 3-step versions for Ø22/Ø25 holes.

Key features

  • 2-step (90°) and 3-step (45°/45°) maintained operation
  • Non-illuminated black knob or LED-illuminated coloured knob
  • Key selector versions in 2 and 3 steps
  • Contact blocks J2-10 / J2-01 freely combinable
  • IP40 front (selector, key)

Specifications

Operation Maintained
Lamp voltage (illuminated) D6 / D12 / D4 / A1 / A2 (specify)
Degree of protection IP40
Panel cut-out Ø22 / Ø25 (ring compatible)
Contact rating 10A 240VAC AC-12 / 3A 240VAC AC-15
Rated insulation voltage 600V
Terminal M3.5 screw, 14-16AWG
Ambient temperature -20 to +55°C
Source KACON J2 Catalog catalogue, p. 1-2, 4
J2-4110-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Non-illuminated | Contacts: 1NO (J2-10) | Colour: Black
J2-5120-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Non-illuminated | Contacts: 2NO (J2-10 x 2) | Colour: Black
J2-4710R-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Red
J2-4710G-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Green
J2-4710B-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Blue
J2-4710Y-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Yellow
J2-4710W-2 Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: White
J2-5720R-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Red
J2-5720G-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Green
J2-5720B-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Blue
J2-5720Y-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Yellow
J2-5720W-3 Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: White
J2-6110-2 Operator: Key | Positions: 2 (90°) | Illumination: Non-illuminated | Contacts: 1NO (J2-10) | Colour: Black
J2-7120-3 Operator: Key | Positions: 3 (45°/45°) | Illumination: Non-illuminated | Contacts: 2NO (J2-10 x 2) | Colour: Black
Selector SwitchesKACON
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON J2 Series Ø22/Ø25 Selector and Key Selector Switches

Brand KACON·Selector Switches

Available part numbers (14)

J2-4110-2, J2-5120-3, J2-4710R-2, J2-4710G-2, J2-4710B-2, J2-4710Y-2, J2-4710W-2, J2-5720R-3, J2-5720G-3, J2-5720B-3 + 4 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
J2-4110-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Non-illuminated | Contacts: 1NO (J2-10) | Colour: Black
J2-5120-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Non-illuminated | Contacts: 2NO (J2-10 x 2) | Colour: Black
J2-4710R-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Red
J2-4710G-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Green
J2-4710B-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Blue
J2-4710Y-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: Yellow
J2-4710W-2Operator: Selector knob | Positions: 2 (90°) | Illumination: Illuminated LED | Contacts: 1NO (J2-10) | Colour: White
J2-5720R-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Red
J2-5720G-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Green
J2-5720B-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Blue
J2-5720Y-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: Yellow
J2-5720W-3Operator: Selector knob | Positions: 3 (45°/45°) | Illumination: Illuminated LED | Contacts: 2NO (J2-10 x 2) | Colour: White
J2-6110-2Operator: Key | Positions: 2 (90°) | Illumination: Non-illuminated | Contacts: 1NO (J2-10) | Colour: Black
J2-7120-3Operator: Key | Positions: 3 (45°/45°) | Illumination: Non-illuminated | Contacts: 2NO (J2-10 x 2) | Colour: Black
