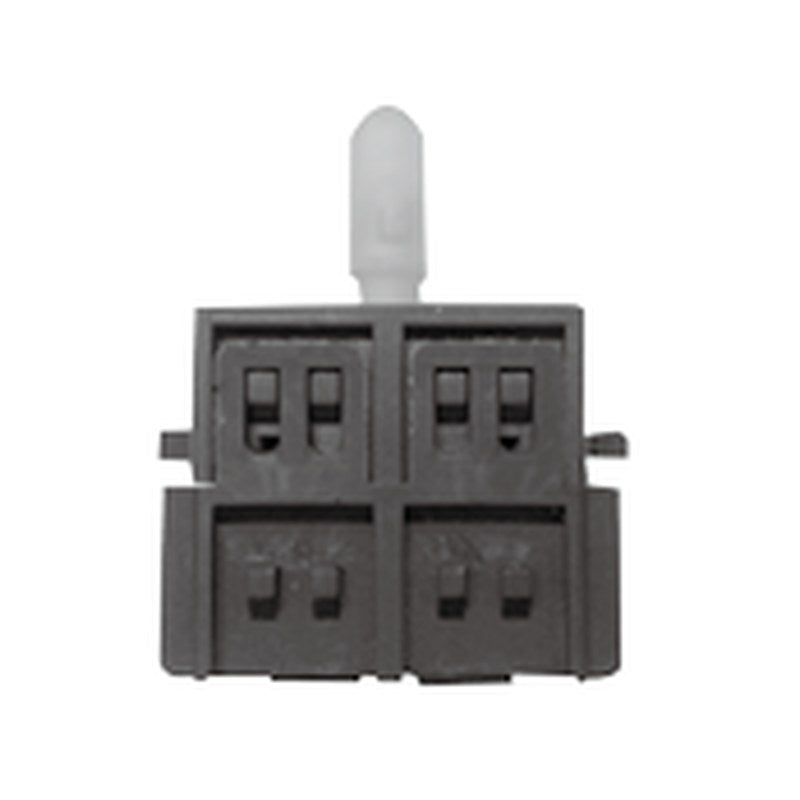

KACON K25F/K30F Contact Blocks, LED Units & Covers

KACON K25F/K30F Contact Blocks, LED Units & Covers

Contact blocks, LED units, holders and covers for KACON K25F/K30F flush control switches.

Key features

  • CBA/CBB single and CBA2/CBB2/CBC double contact blocks
  • NC blocks positive opening per IEC 60947-5-1
  • KT LED trans units in five colours
  • KP terminal covers with or without hole
  • KEG protection covers for Ø25/Ø30
  • KAL maintain holder

Specifications

Series K25F / K30F
Contact material Ag alloy
Contact rating 10A AC12 at 24-110V, 2A at 440V
Contact resistance 50mOhm
Standard IEC 60947-5-1 (NC positive opening)
Source KACON K25F K30F Series Flush Type Control Switch catalogue, p. 12-13
CBA Type: Contact block | Detail: 1NO | Fits: N/A
CBB Type: Contact block | Detail: 1NC, positive opening | Fits: N/A
CBA2 Type: Contact block | Detail: 2NO | Fits: N/A
CBB2 Type: Contact block | Detail: 2NC, positive opening | Fits: N/A
CBC Type: Contact block | Detail: 1NO+1NC, positive opening | Fits: N/A
KT-R Type: LED trans unit | Detail: Red, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-G Type: LED trans unit | Detail: Green, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-Y Type: LED trans unit | Detail: Yellow, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-B Type: LED trans unit | Detail: Blue, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-W Type: LED trans unit | Detail: White, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KAL Type: Maintain holder | Detail: N/A | Fits: N/A
KP-10 Type: Terminal cover | Detail: With hole | Fits: CBA, CBB
KP-11 Type: Terminal cover | Detail: Without hole | Fits: CBA, CBB
KP-20 Type: Power terminal cover | Detail: With hole | Fits: N/A
KP-21 Type: Power terminal cover | Detail: Without hole | Fits: N/A
KP-30 Type: Terminal cover | Detail: With hole | Fits: CBA2, CBB2, CBC
KP-31 Type: Terminal cover | Detail: Without hole | Fits: CBA2, CBB2, CBC
Switch AccessoriesKACON
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K25F/K30F Contact Blocks, LED Units & Covers

Brand KACON·Switch Accessories

Available part numbers (17)

CBA, CBB, CBA2, CBB2, CBC, KT-R, KT-G, KT-Y, KT-B, KT-W + 7 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CBAType: Contact block | Detail: 1NO | Fits: N/A
CBBType: Contact block | Detail: 1NC, positive opening | Fits: N/A
CBA2Type: Contact block | Detail: 2NO | Fits: N/A
CBB2Type: Contact block | Detail: 2NC, positive opening | Fits: N/A
CBCType: Contact block | Detail: 1NO+1NC, positive opening | Fits: N/A
KT-RType: LED trans unit | Detail: Red, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-GType: LED trans unit | Detail: Green, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-YType: LED trans unit | Detail: Yellow, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-BType: LED trans unit | Detail: Blue, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KT-WType: LED trans unit | Detail: White, 12/24VDC/110VDC/110-220VAC | Fits: N/A
KALType: Maintain holder | Detail: N/A | Fits: N/A
KP-10Type: Terminal cover | Detail: With hole | Fits: CBA, CBB
KP-11Type: Terminal cover | Detail: Without hole | Fits: CBA, CBB
KP-20Type: Power terminal cover | Detail: With hole | Fits: N/A
KP-21Type: Power terminal cover | Detail: Without hole | Fits: N/A
KP-30Type: Terminal cover | Detail: With hole | Fits: CBA2, CBB2, CBC
KP-31Type: Terminal cover | Detail: Without hole | Fits: CBA2, CBB2, CBC
