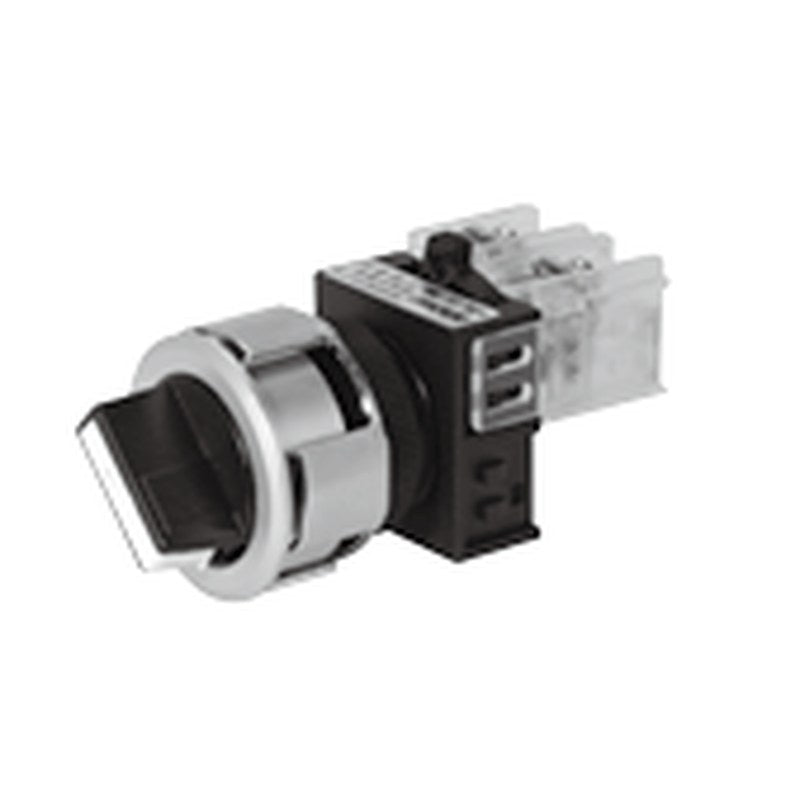

KACON K25F/K30F Flush Selector Switches (Knob, Lever)

KACON K25F/K30F Flush Selector Switches (Knob, Lever)

Flush-type 2- and 3-position selector switches of the KACON K25F/K30F series with knob or lever operators.

Key features

  • 2-position (90°, 1N/O) and 3-position (45°/45°, 2N/O)
  • Knob or long lever operator
  • Maintained, spring-return and left/right/both auto-return versions
  • Non-illuminated or LED illuminated knob
  • Illuminated: 12/24VDC, 110VDC, 110VAC, 220VAC
  • IP40 front protection

Specifications

Bezel Flush, metal
Contact material Ag alloy
Ambient temperature -25 to +70°C
Panel thickness 0.5-4mm
Mounting torque 0.8N·m
Electrical life Min. 500,000
Degree of protection IP40
Source KACON K25F K30F Series Flush Type Control Switch catalogue, p. 5-9
K25F-41K Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Black
K25F-41R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red
K25F-41G Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green
K25F-41Y Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow
K25F-41B Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue
K25F-41K-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Black
K25F-41R-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red
K25F-41G-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green
K25F-41Y-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow
K25F-41B-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue
K30F-41K Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Black
K30F-41R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red
K30F-41G Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green
K30F-41Y Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow
K30F-41B Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue
K30F-41K-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Black
K30F-41R-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red
K30F-41G-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green
K30F-41Y-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow
K30F-41B-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue
K25F-41K-L Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Black
K25F-41R-L Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Red
K25F-41G-L Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Green
K25F-41Y-L Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Yellow
K25F-41B-L Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Blue
K25F-41K-L2R Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Black
K25F-41R-L2R Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Red
K25F-41G-L2R Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Green
K25F-41Y-L2R Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Yellow
K25F-41B-L2R Size: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Blue
K30F-41K-L Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Black
K30F-41R-L Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Red
K30F-41G-L Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Green
K30F-41Y-L Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Yellow
K30F-41B-L Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Blue
K30F-41K-L2R Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Black
K30F-41R-L2R Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Red
K30F-41G-L2R Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Green
K30F-41Y-L2R Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Yellow
K30F-41B-L2R Size: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Blue
K25F-47R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red LED
K25F-47G Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green LED
K25F-47Y Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K25F-47B Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K25F-47W Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: White LED
K25F-47R-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red LED
K25F-47G-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green LED
K25F-47Y-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow LED
K25F-47B-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue LED
K25F-47W-S2R Size: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: White LED
K30F-47R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red LED
K30F-47G Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green LED
K30F-47Y Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K30F-47B Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K30F-47W Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: White LED
K30F-47R-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red LED
K30F-47G-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green LED
K30F-47Y-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow LED
K30F-47B-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue LED
K30F-47W-S2R Size: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: White LED
K25F-51K Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Black
K25F-51R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red
K25F-51G Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green
K25F-51Y Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow
K25F-51B Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue
K25F-51K-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Black
K25F-51R-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red
K25F-51G-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green
K25F-51Y-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow
K25F-51B-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue
K25F-51K-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Black
K25F-51R-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red
K25F-51G-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green
K25F-51Y-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow
K25F-51B-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue
K25F-51K-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Black
K25F-51R-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red
K25F-51G-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green
K25F-51Y-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow
K25F-51B-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue
K25F-51K-L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Black
K25F-51R-L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Red
K25F-51G-L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Green
K25F-51Y-L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Yellow
K25F-51B-L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Blue
K25F-51K-L3L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Black
K25F-51R-L3L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Red
K25F-51G-L3L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Green
K25F-51Y-L3L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Yellow
K25F-51B-L3L Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Blue
K25F-51K-L3R Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Black
K25F-51R-L3R Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Red
K25F-51G-L3R Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Green
K25F-51Y-L3R Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Yellow
K25F-51B-L3R Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Blue
K25F-51K-L3LR Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Black
K25F-51R-L3LR Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Red
K25F-51G-L3LR Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Green
K25F-51Y-L3LR Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Yellow
K25F-51B-L3LR Size: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Blue
K30F-51K Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Black
K30F-51R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red
K30F-51G Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green
K30F-51Y Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow
K30F-51B Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue
K30F-51K-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Black
K30F-51R-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red
K30F-51G-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green
K30F-51Y-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow
K30F-51B-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue
K30F-51K-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Black
K30F-51R-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red
K30F-51G-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green
K30F-51Y-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow
K30F-51B-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue
K30F-51K-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Black
K30F-51R-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red
K30F-51G-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green
K30F-51Y-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow
K30F-51B-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue
K30F-51K-L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Black
K30F-51R-L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Red
K30F-51G-L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Green
K30F-51Y-L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Yellow
K30F-51B-L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Blue
K30F-51K-L3L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Black
K30F-51R-L3L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Red
K30F-51G-L3L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Green
K30F-51Y-L3L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Yellow
K30F-51B-L3L Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Blue
K30F-51K-L3R Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Black
K30F-51R-L3R Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Red
K30F-51G-L3R Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Green
K30F-51Y-L3R Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Yellow
K30F-51B-L3R Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Blue
K30F-51K-L3LR Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Black
K30F-51R-L3LR Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Red
K30F-51G-L3LR Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Green
K30F-51Y-L3LR Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Yellow
K30F-51B-L3LR Size: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Blue
K25F-57R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red LED
K25F-57G Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green LED
K25F-57Y Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K25F-57B Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K25F-57W Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: White LED
K25F-57R-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red LED
K25F-57G-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green LED
K25F-57Y-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow LED
K25F-57B-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue LED
K25F-57W-S3L Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: White LED
K25F-57R-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red LED
K25F-57G-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green LED
K25F-57Y-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow LED
K25F-57B-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue LED
K25F-57W-S3R Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: White LED
K25F-57R-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red LED
K25F-57G-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green LED
K25F-57Y-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow LED
K25F-57B-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue LED
K25F-57W-S3LR Size: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: White LED
K30F-57R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red LED
K30F-57G Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green LED
K30F-57Y Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K30F-57B Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K30F-57W Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: White LED
K30F-57R-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red LED
K30F-57G-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green LED
K30F-57Y-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow LED
K30F-57B-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue LED
K30F-57W-S3L Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: White LED
K30F-57R-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red LED
K30F-57G-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green LED
K30F-57Y-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow LED
K30F-57B-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue LED
K30F-57W-S3R Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: White LED
K30F-57R-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red LED
K30F-57G-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green LED
K30F-57Y-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow LED
K30F-57B-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue LED
K30F-57W-S3LR Size: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: White LED
Selector SwitchesKACON
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K25F/K30F Flush Selector Switches (Knob, Lever)

Brand KACON·Selector Switches

Available part numbers (180)

K25F-41K, K25F-41R, K25F-41G, K25F-41Y, K25F-41B, K25F-41K-S2R, K25F-41R-S2R, K25F-41G-S2R, K25F-41Y-S2R, K25F-41B-S2R + 170 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K25F-41KSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Black
K25F-41RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red
K25F-41GSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green
K25F-41YSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow
K25F-41BSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue
K25F-41K-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Black
K25F-41R-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red
K25F-41G-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green
K25F-41Y-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow
K25F-41B-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue
K30F-41KSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Black
K30F-41RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red
K30F-41GSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green
K30F-41YSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow
K30F-41BSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue
K30F-41K-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Black
K30F-41R-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red
K30F-41G-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green
K30F-41Y-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow
K30F-41B-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue
K25F-41K-LSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Black
K25F-41R-LSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Red
K25F-41G-LSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Green
K25F-41Y-LSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Yellow
K25F-41B-LSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Blue
K25F-41K-L2RSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Black
K25F-41R-L2RSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Red
K25F-41G-L2RSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Green
K25F-41Y-L2RSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Yellow
K25F-41B-L2RSize: Ø25 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Blue
K30F-41K-LSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Black
K30F-41R-LSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Red
K30F-41G-LSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Green
K30F-41Y-LSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Yellow
K30F-41B-LSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Maintained | Colour: Blue
K30F-41K-L2RSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Black
K30F-41R-L2RSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Red
K30F-41G-L2RSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Green
K30F-41Y-L2RSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Yellow
K30F-41B-L2RSize: Ø30 | Positions: 2-position | Operator: Lever | Function: Spring return | Colour: Blue
K25F-47RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red LED
K25F-47GSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green LED
K25F-47YSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K25F-47BSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K25F-47WSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: White LED
K25F-47R-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red LED
K25F-47G-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green LED
K25F-47Y-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow LED
K25F-47B-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue LED
K25F-47W-S2RSize: Ø25 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: White LED
K30F-47RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Red LED
K30F-47GSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Green LED
K30F-47YSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K30F-47BSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K30F-47WSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Maintained | Colour: White LED
K30F-47R-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Red LED
K30F-47G-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Green LED
K30F-47Y-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Yellow LED
K30F-47B-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: Blue LED
K30F-47W-S2RSize: Ø30 | Positions: 2-position | Operator: Knob | Function: Spring return | Colour: White LED
K25F-51KSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Black
K25F-51RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red
K25F-51GSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green
K25F-51YSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow
K25F-51BSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue
K25F-51K-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Black
K25F-51R-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red
K25F-51G-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green
K25F-51Y-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow
K25F-51B-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue
K25F-51K-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Black
K25F-51R-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red
K25F-51G-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green
K25F-51Y-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow
K25F-51B-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue
K25F-51K-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Black
K25F-51R-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red
K25F-51G-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green
K25F-51Y-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow
K25F-51B-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue
K25F-51K-LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Black
K25F-51R-LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Red
K25F-51G-LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Green
K25F-51Y-LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Yellow
K25F-51B-LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Blue
K25F-51K-L3LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Black
K25F-51R-L3LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Red
K25F-51G-L3LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Green
K25F-51Y-L3LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Yellow
K25F-51B-L3LSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Blue
K25F-51K-L3RSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Black
K25F-51R-L3RSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Red
K25F-51G-L3RSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Green
K25F-51Y-L3RSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Yellow
K25F-51B-L3RSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Blue
K25F-51K-L3LRSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Black
K25F-51R-L3LRSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Red
K25F-51G-L3LRSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Green
K25F-51Y-L3LRSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Yellow
K25F-51B-L3LRSize: Ø25 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Blue
K30F-51KSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Black
K30F-51RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red
K30F-51GSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green
K30F-51YSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow
K30F-51BSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue
K30F-51K-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Black
K30F-51R-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red
K30F-51G-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green
K30F-51Y-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow
K30F-51B-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue
K30F-51K-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Black
K30F-51R-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red
K30F-51G-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green
K30F-51Y-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow
K30F-51B-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue
K30F-51K-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Black
K30F-51R-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red
K30F-51G-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green
K30F-51Y-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow
K30F-51B-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue
K30F-51K-LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Black
K30F-51R-LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Red
K30F-51G-LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Green
K30F-51Y-LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Yellow
K30F-51B-LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Maintained | Colour: Blue
K30F-51K-L3LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Black
K30F-51R-L3LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Red
K30F-51G-L3LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Green
K30F-51Y-L3LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Yellow
K30F-51B-L3LSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Left auto return | Colour: Blue
K30F-51K-L3RSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Black
K30F-51R-L3RSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Red
K30F-51G-L3RSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Green
K30F-51Y-L3RSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Yellow
K30F-51B-L3RSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Right auto return | Colour: Blue
K30F-51K-L3LRSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Black
K30F-51R-L3LRSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Red
K30F-51G-L3LRSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Green
K30F-51Y-L3LRSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Yellow
K30F-51B-L3LRSize: Ø30 | Positions: 3-position | Operator: Lever | Function: Both auto return | Colour: Blue
K25F-57RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red LED
K25F-57GSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green LED
K25F-57YSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K25F-57BSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K25F-57WSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: White LED
K25F-57R-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red LED
K25F-57G-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green LED
K25F-57Y-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow LED
K25F-57B-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue LED
K25F-57W-S3LSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: White LED
K25F-57R-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red LED
K25F-57G-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green LED
K25F-57Y-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow LED
K25F-57B-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue LED
K25F-57W-S3RSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: White LED
K25F-57R-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red LED
K25F-57G-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green LED
K25F-57Y-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow LED
K25F-57B-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue LED
K25F-57W-S3LRSize: Ø25 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: White LED
K30F-57RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Red LED
K30F-57GSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Green LED
K30F-57YSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Yellow LED
K30F-57BSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: Blue LED
K30F-57WSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Maintained | Colour: White LED
K30F-57R-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Red LED
K30F-57G-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Green LED
K30F-57Y-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Yellow LED
K30F-57B-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: Blue LED
K30F-57W-S3LSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Left auto return | Colour: White LED
K30F-57R-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Red LED
K30F-57G-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Green LED
K30F-57Y-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Yellow LED
K30F-57B-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: Blue LED
K30F-57W-S3RSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Right auto return | Colour: White LED
K30F-57R-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Red LED
K30F-57G-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Green LED
K30F-57Y-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Yellow LED
K30F-57B-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: Blue LED
K30F-57W-S3LRSize: Ø30 | Positions: 3-position | Operator: Knob | Function: Both auto return | Colour: White LED

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
