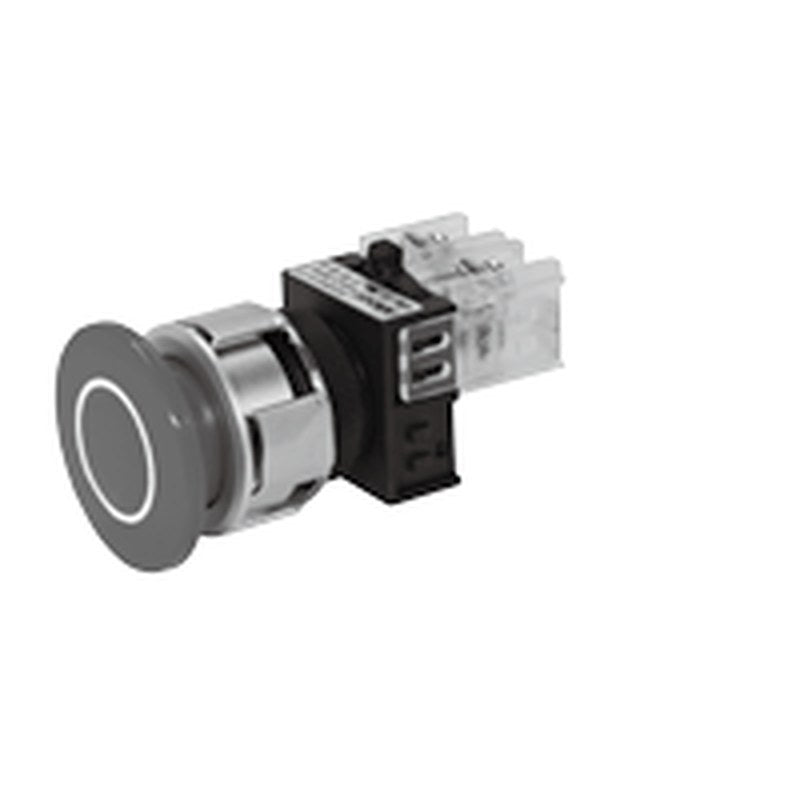

KACON K25F/K30F Mushroom Push Buttons (Ø29/Ø40 Head)

KACON K25F/K30F Mushroom Push Buttons (Ø29/Ø40 Head)

Momentary mushroom-head push button switches of the KACON K25F/K30F series, non-illuminated or LED illuminated.

Key features

  • Ø29 or Ø40 mushroom head
  • Ø25 or Ø30 panel mounting
  • 1N/C contact
  • Red, green or yellow
  • Illuminated versions: 12/24VDC, 110VDC, 110VAC, 220VAC

Specifications

Bezel Flush, metal
Contact material Ag alloy
Ambient temperature -25 to +70°C
Panel thickness 0.5-4mm
Mounting torque 0.8N·m
Action Momentary
Contacts 1N/C
Degree of protection IP54
Source KACON K25F K30F Series Flush Type Control Switch catalogue, p. 11-11
K25F-21R-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-21G-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-21Y-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-21R-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-21G-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-21Y-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-21R-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-21G-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-21Y-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-21R-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-21G-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-21Y-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-27R-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27G-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27Y-N29 Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27R-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27G-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27Y-N29 Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27R-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27G-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27Y-N40 Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27R-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27G-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27Y-N40 Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
Push Button SwitchesKACON
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K25F/K30F Mushroom Push Buttons (Ø29/Ø40 Head)

Brand KACON·Push Button Switches

Available part numbers (24)

K25F-21R-N29, K25F-21G-N29, K25F-21Y-N29, K30F-21R-N29, K30F-21G-N29, K30F-21Y-N29, K25F-21R-N40, K25F-21G-N40, K25F-21Y-N40, K30F-21R-N40 + 14 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K25F-21R-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-21G-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-21Y-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-21R-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-21G-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-21Y-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-21R-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-21G-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-21Y-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-21R-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-21G-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-21Y-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-27R-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27G-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27Y-N29Size: Ø25 | Mushroom head: Ø29 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27R-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27G-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27Y-N29Size: Ø30 | Mushroom head: Ø29 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27R-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27G-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27Y-N40Size: Ø25 | Mushroom head: Ø40 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27R-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27G-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27Y-N40Size: Ø30 | Mushroom head: Ø40 | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
