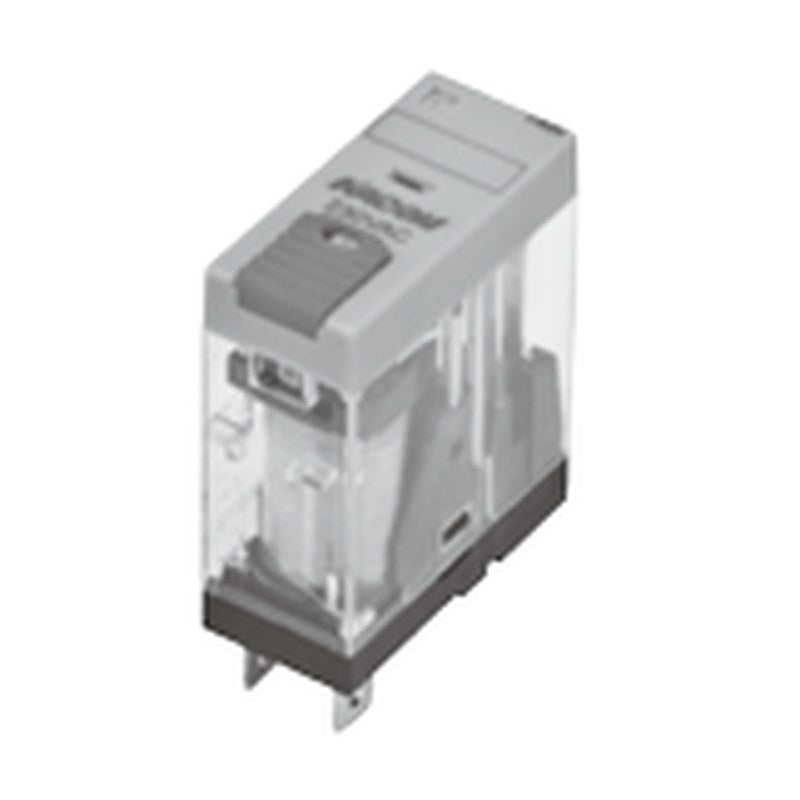

KACON K706 Slim Compact Relays (1C 10A / 2C 5A, 6-110VDC, 24-230VAC)

KACON K706 Slim Compact Relays (1C 10A / 2C 5A, 6-110VDC, 24-230VAC)

Slim and compact plug-in relays with one or two changeover contacts, LED indication, optional diode and optional test button.

Key features

  • 1C rated 10A 250VAC / 30VDC; 2C rated 5A 250VAC / 30VDC
  • Ag alloy contacts with 24K gold plating, min. switching 100mA 5VDC
  • LED indicator: red for AC coils, green for DC coils
  • D version with diode for DC coils; T version with test button
  • 5,000Vrms dielectric strength between coil and contacts
  • Fits KPX12 / KPX12-P (1-pole) and KPX22 / KPX22-P (2-pole) sockets

Specifications

Contact material Ag alloy (24K gold plated)
Max. switching capacity 3,000VA (1C) / 2,000VA (2C)
Coil power DC 0.53W / AC 1.0VA
Pick-up voltage DC 75% / AC 80% of nominal
Operate time 20ms max.
Insulation resistance 1,000Mohm (500VDC)
Life Mech. 10,000,000 / elec. 100,000 ops
Ambient temperature -40 to +55 C
