• KACON KCL Series Switchboard Lighting (KCL1/KCL100)
1 1

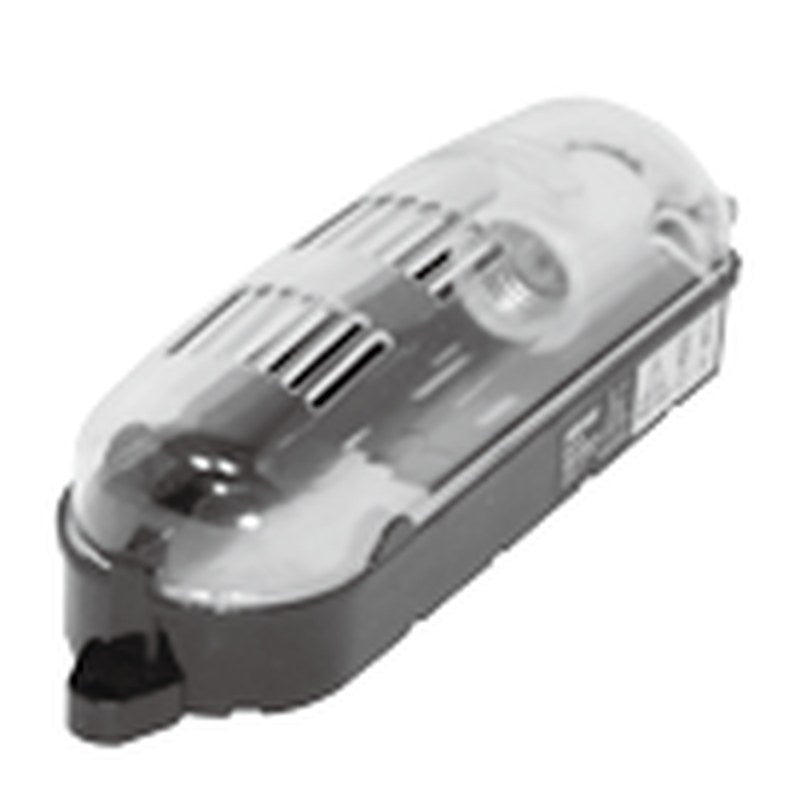

KACON KCL Series Switchboard Lighting (KCL1/KCL100)

KACON KCL Series Switchboard Lighting (KCL1/KCL100)

KACON KCL Series switchboard lighting fixtures for illuminating the interior of distribution boards and control panels.

Key features

  • Small (KCL1) and large (KCL100) sizes
  • Wide 100-240VAC supply
  • Max. 60 W power consumption
  • Two-point M4 screw mounting
  • 2500VAC dielectric strength

Specifications

Power consumption Max. 60 W
Supply voltage 100-240VAC
Dielectric strength 2500VAC 1 minute
Insulation resistance 100MΩ (500VDC)
Ambient temperature -20 to +70 °C (no icing)
Ambient humidity 50-90% RH
Certification KC (KCL1 also CE)
Source KACON KCL catalogue, p. 1
KCL1 Size: Small | Dimensions: 224 x 80 x 76 mm | Mounting pitch: 2-M4, 205 mm
KCL100 Size: Large | Dimensions: 250 x 75 mm | Mounting pitch: 2-M4, 235 mm
LED LampsKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KCL Series Switchboard Lighting (KCL1/KCL100)

Brand KACON·LED Lamps

Available part numbers (2)

KCL1, KCL100

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KCL1Size: Small | Dimensions: 224 x 80 x 76 mm | Mounting pitch: 2-M4, 205 mm
KCL100Size: Large | Dimensions: 250 x 75 mm | Mounting pitch: 2-M4, 235 mm
