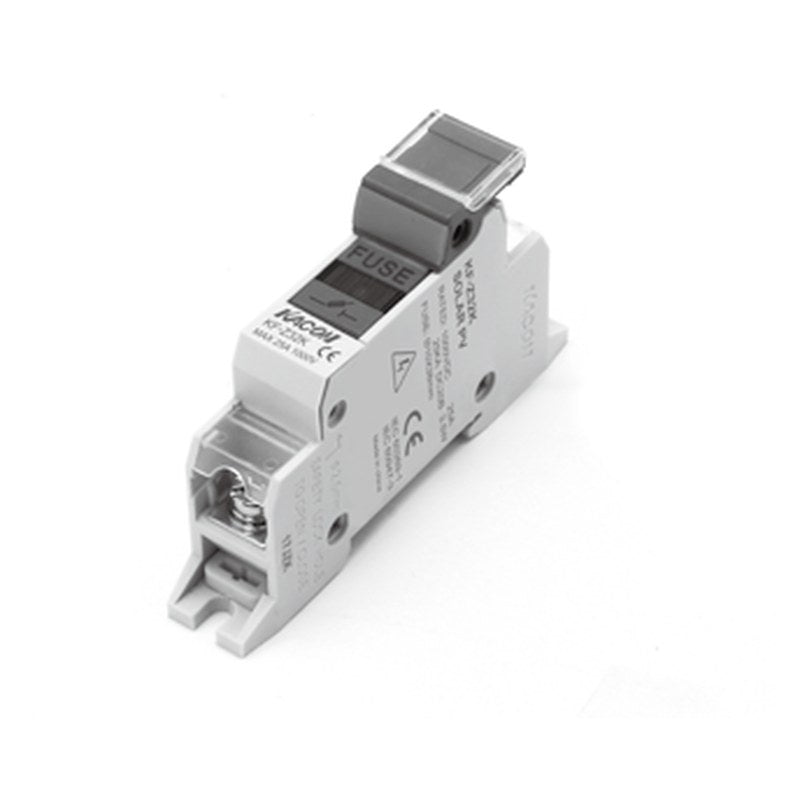

KACON KF-Z32 / KF-SF Solar Fuse Holders 1,000VDC

Fuse holders for 1,000VDC solar systems: KF-Z32 DIN-rail holders for 10 x 38 mm fuses and KF-SF base for KFS-B square fuses.

Key features

KF-Z32L / KF-Z32K: 25A 1,000VDC, 25kA, with LED
KF-SF: square fuse base up to 400A, 200kA
100Mohm insulation, 2,500V 1 min dielectric strength
Vibration 10-50Hz, 1.5mm amplitude
Ambient -40 to 70 C (no freezing), 85% RH or less

Specifications

Rated voltage	1000VDC
Insulation resistance	100Mohm min. (500VDC)
Dielectric strength	2,500V 1 min
Vibration	10-50Hz, 1.5mm amplitude
Ambient temperature	-40 to 70 C
Ambient humidity	85% RH or less
Source	KACON 1,000VDC Solar Purpose KFS KF KSD Series catalogue, p. 1-4

KF-Z32L		Fuse: KFS-ZB 10 x 38 mm \| Rated current: 25A \| Breaking capacity: 25kA \| Mounting: DIN rail
KF-Z32K		Fuse: KFS-ZB 10 x 38 mm \| Rated current: 25A \| Breaking capacity: 25kA \| Mounting: DIN rail
KF-SF		Fuse: KFS-B square fuse \| Rated current: Max. 400A \| Breaking capacity: Max. 200kA \| Mounting: Panel, M6 x 2

Fuse HoldersKACON

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KF-Z32 / KF-SF Solar Fuse Holders 1,000VDC

Brand KACON·Fuse Holders

Available part numbers (3)

KF-Z32L, KF-Z32K, KF-SF

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KF-Z32L	Fuse: KFS-ZB 10 x 38 mm \| Rated current: 25A \| Breaking capacity: 25kA \| Mounting: DIN rail
	KF-Z32K	Fuse: KFS-ZB 10 x 38 mm \| Rated current: 25A \| Breaking capacity: 25kA \| Mounting: DIN rail
	KF-SF	Fuse: KFS-B square fuse \| Rated current: Max. 400A \| Breaking capacity: Max. 200kA \| Mounting: Panel, M6 x 2
