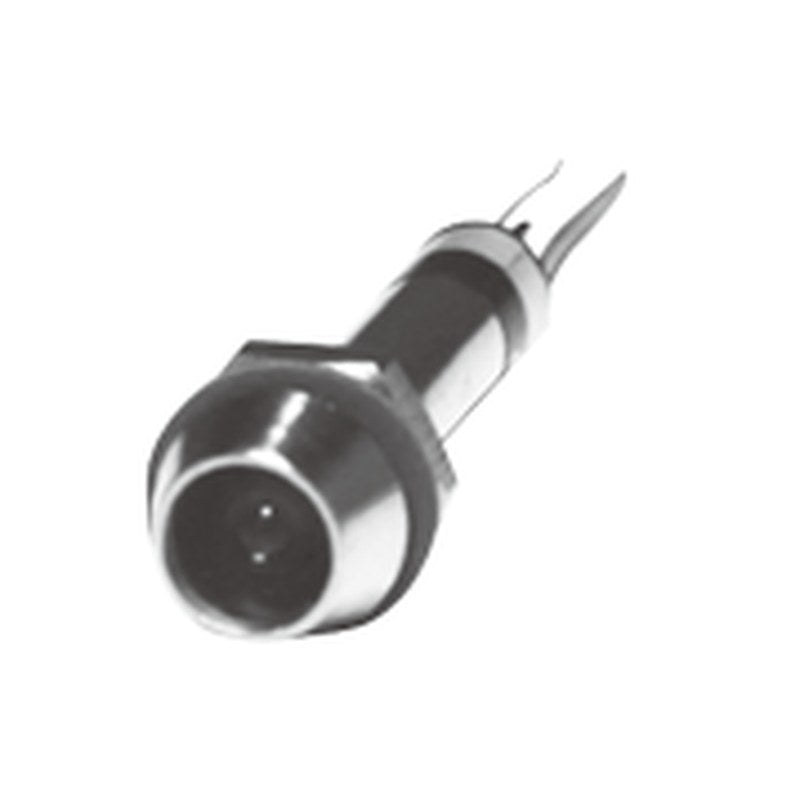

KACON KL Series LED Signal Lamps (Ø6-Ø16)

KACON KL Series LED Signal Lamps (Ø6-Ø16)

KACON KL Series miniature LED signal lamps with chrome-plated brass housings in six mounting sizes from Ø6 to Ø16 mm.

Key features

  • Six sizes: Ø6, Ø8, Ø10, Ø12, Ø14 and Ø16 mm
  • Brass housing with chrome plating
  • Supply voltages 12VAC/DC, 24VAC/DC, 110VAC and 220VAC
  • Red, green, yellow, blue and white LEDs
  • Lead-wire termination
  • 50,000-hour LED life

Specifications

Lamp LED
Current consumption Max. 20mA (24VDC) / AC max. 10mA
Dielectric strength 500VAC for 1 minute
Insulation resistance Min. 100MΩ (500VDC)
Material Brass + Cr plate
Ambient temperature -25 to +60 °C
Life 50,000 hours
Termination Lead wire
Source KACON Pilot Lamp Series catalogue, p. 3-4
KL0612R Size: Ø6 mm | Supply voltage: 12VAC/DC | Colour: Red
KL0612G Size: Ø6 mm | Supply voltage: 12VAC/DC | Colour: Green
KL0612Y Size: Ø6 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL0612B Size: Ø6 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL0612W Size: Ø6 mm | Supply voltage: 12VAC/DC | Colour: White
KL0624R Size: Ø6 mm | Supply voltage: 24VAC/DC | Colour: Red
KL0624G Size: Ø6 mm | Supply voltage: 24VAC/DC | Colour: Green
KL0624Y Size: Ø6 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL0624B Size: Ø6 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL0624W Size: Ø6 mm | Supply voltage: 24VAC/DC | Colour: White
KL0611R Size: Ø6 mm | Supply voltage: 110VAC | Colour: Red
KL0611G Size: Ø6 mm | Supply voltage: 110VAC | Colour: Green
KL0611Y Size: Ø6 mm | Supply voltage: 110VAC | Colour: Yellow
KL0611B Size: Ø6 mm | Supply voltage: 110VAC | Colour: Blue
KL0611W Size: Ø6 mm | Supply voltage: 110VAC | Colour: White
KL0622R Size: Ø6 mm | Supply voltage: 220VAC | Colour: Red
KL0622G Size: Ø6 mm | Supply voltage: 220VAC | Colour: Green
KL0622Y Size: Ø6 mm | Supply voltage: 220VAC | Colour: Yellow
KL0622B Size: Ø6 mm | Supply voltage: 220VAC | Colour: Blue
KL0622W Size: Ø6 mm | Supply voltage: 220VAC | Colour: White
KL0812R Size: Ø8 mm | Supply voltage: 12VAC/DC | Colour: Red
KL0812G Size: Ø8 mm | Supply voltage: 12VAC/DC | Colour: Green
KL0812Y Size: Ø8 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL0812B Size: Ø8 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL0812W Size: Ø8 mm | Supply voltage: 12VAC/DC | Colour: White
KL0824R Size: Ø8 mm | Supply voltage: 24VAC/DC | Colour: Red
KL0824G Size: Ø8 mm | Supply voltage: 24VAC/DC | Colour: Green
KL0824Y Size: Ø8 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL0824B Size: Ø8 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL0824W Size: Ø8 mm | Supply voltage: 24VAC/DC | Colour: White
KL0811R Size: Ø8 mm | Supply voltage: 110VAC | Colour: Red
KL0811G Size: Ø8 mm | Supply voltage: 110VAC | Colour: Green
KL0811Y Size: Ø8 mm | Supply voltage: 110VAC | Colour: Yellow
KL0811B Size: Ø8 mm | Supply voltage: 110VAC | Colour: Blue
KL0811W Size: Ø8 mm | Supply voltage: 110VAC | Colour: White
KL0822R Size: Ø8 mm | Supply voltage: 220VAC | Colour: Red
KL0822G Size: Ø8 mm | Supply voltage: 220VAC | Colour: Green
KL0822Y Size: Ø8 mm | Supply voltage: 220VAC | Colour: Yellow
KL0822B Size: Ø8 mm | Supply voltage: 220VAC | Colour: Blue
KL0822W Size: Ø8 mm | Supply voltage: 220VAC | Colour: White
KL1012R Size: Ø10 mm | Supply voltage: 12VAC/DC | Colour: Red
KL1012G Size: Ø10 mm | Supply voltage: 12VAC/DC | Colour: Green
KL1012Y Size: Ø10 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL1012B Size: Ø10 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL1012W Size: Ø10 mm | Supply voltage: 12VAC/DC | Colour: White
KL1024R Size: Ø10 mm | Supply voltage: 24VAC/DC | Colour: Red
KL1024G Size: Ø10 mm | Supply voltage: 24VAC/DC | Colour: Green
KL1024Y Size: Ø10 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL1024B Size: Ø10 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL1024W Size: Ø10 mm | Supply voltage: 24VAC/DC | Colour: White
KL1011R Size: Ø10 mm | Supply voltage: 110VAC | Colour: Red
KL1011G Size: Ø10 mm | Supply voltage: 110VAC | Colour: Green
KL1011Y Size: Ø10 mm | Supply voltage: 110VAC | Colour: Yellow
KL1011B Size: Ø10 mm | Supply voltage: 110VAC | Colour: Blue
KL1011W Size: Ø10 mm | Supply voltage: 110VAC | Colour: White
KL1022R Size: Ø10 mm | Supply voltage: 220VAC | Colour: Red
KL1022G Size: Ø10 mm | Supply voltage: 220VAC | Colour: Green
KL1022Y Size: Ø10 mm | Supply voltage: 220VAC | Colour: Yellow
KL1022B Size: Ø10 mm | Supply voltage: 220VAC | Colour: Blue
KL1022W Size: Ø10 mm | Supply voltage: 220VAC | Colour: White
KL1212R Size: Ø12 mm | Supply voltage: 12VAC/DC | Colour: Red
KL1212G Size: Ø12 mm | Supply voltage: 12VAC/DC | Colour: Green
KL1212Y Size: Ø12 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL1212B Size: Ø12 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL1212W Size: Ø12 mm | Supply voltage: 12VAC/DC | Colour: White
KL1224R Size: Ø12 mm | Supply voltage: 24VAC/DC | Colour: Red
KL1224G Size: Ø12 mm | Supply voltage: 24VAC/DC | Colour: Green
KL1224Y Size: Ø12 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL1224B Size: Ø12 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL1224W Size: Ø12 mm | Supply voltage: 24VAC/DC | Colour: White
KL1211R Size: Ø12 mm | Supply voltage: 110VAC | Colour: Red
KL1211G Size: Ø12 mm | Supply voltage: 110VAC | Colour: Green
KL1211Y Size: Ø12 mm | Supply voltage: 110VAC | Colour: Yellow
KL1211B Size: Ø12 mm | Supply voltage: 110VAC | Colour: Blue
KL1211W Size: Ø12 mm | Supply voltage: 110VAC | Colour: White
KL1222R Size: Ø12 mm | Supply voltage: 220VAC | Colour: Red
KL1222G Size: Ø12 mm | Supply voltage: 220VAC | Colour: Green
KL1222Y Size: Ø12 mm | Supply voltage: 220VAC | Colour: Yellow
KL1222B Size: Ø12 mm | Supply voltage: 220VAC | Colour: Blue
KL1222W Size: Ø12 mm | Supply voltage: 220VAC | Colour: White
KL1412R Size: Ø14 mm | Supply voltage: 12VAC/DC | Colour: Red
KL1412G Size: Ø14 mm | Supply voltage: 12VAC/DC | Colour: Green
KL1412Y Size: Ø14 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL1412B Size: Ø14 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL1412W Size: Ø14 mm | Supply voltage: 12VAC/DC | Colour: White
KL1424R Size: Ø14 mm | Supply voltage: 24VAC/DC | Colour: Red
KL1424G Size: Ø14 mm | Supply voltage: 24VAC/DC | Colour: Green
KL1424Y Size: Ø14 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL1424B Size: Ø14 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL1424W Size: Ø14 mm | Supply voltage: 24VAC/DC | Colour: White
KL1411R Size: Ø14 mm | Supply voltage: 110VAC | Colour: Red
KL1411G Size: Ø14 mm | Supply voltage: 110VAC | Colour: Green
KL1411Y Size: Ø14 mm | Supply voltage: 110VAC | Colour: Yellow
KL1411B Size: Ø14 mm | Supply voltage: 110VAC | Colour: Blue
KL1411W Size: Ø14 mm | Supply voltage: 110VAC | Colour: White
KL1422R Size: Ø14 mm | Supply voltage: 220VAC | Colour: Red
KL1422G Size: Ø14 mm | Supply voltage: 220VAC | Colour: Green
KL1422Y Size: Ø14 mm | Supply voltage: 220VAC | Colour: Yellow
KL1422B Size: Ø14 mm | Supply voltage: 220VAC | Colour: Blue
KL1422W Size: Ø14 mm | Supply voltage: 220VAC | Colour: White
KL1612R Size: Ø16 mm | Supply voltage: 12VAC/DC | Colour: Red
KL1612G Size: Ø16 mm | Supply voltage: 12VAC/DC | Colour: Green
KL1612Y Size: Ø16 mm | Supply voltage: 12VAC/DC | Colour: Yellow
KL1612B Size: Ø16 mm | Supply voltage: 12VAC/DC | Colour: Blue
KL1612W Size: Ø16 mm | Supply voltage: 12VAC/DC | Colour: White
KL1624R Size: Ø16 mm | Supply voltage: 24VAC/DC | Colour: Red
KL1624G Size: Ø16 mm | Supply voltage: 24VAC/DC | Colour: Green
KL1624Y Size: Ø16 mm | Supply voltage: 24VAC/DC | Colour: Yellow
KL1624B Size: Ø16 mm | Supply voltage: 24VAC/DC | Colour: Blue
KL1624W Size: Ø16 mm | Supply voltage: 24VAC/DC | Colour: White
KL1611R Size: Ø16 mm | Supply voltage: 110VAC | Colour: Red
KL1611G Size: Ø16 mm | Supply voltage: 110VAC | Colour: Green
KL1611Y Size: Ø16 mm | Supply voltage: 110VAC | Colour: Yellow
KL1611B Size: Ø16 mm | Supply voltage: 110VAC | Colour: Blue
KL1611W Size: Ø16 mm | Supply voltage: 110VAC | Colour: White
KL1622R Size: Ø16 mm | Supply voltage: 220VAC | Colour: Red
KL1622G Size: Ø16 mm | Supply voltage: 220VAC | Colour: Green
KL1622Y Size: Ø16 mm | Supply voltage: 220VAC | Colour: Yellow
KL1622B Size: Ø16 mm | Supply voltage: 220VAC | Colour: Blue
KL1622W Size: Ø16 mm | Supply voltage: 220VAC | Colour: White
Pilot LampsKACON
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KL Series LED Signal Lamps (Ø6-Ø16)

Brand KACON·Pilot Lamps

Available part numbers (120)

KL0612R, KL0612G, KL0612Y, KL0612B, KL0612W, KL0624R, KL0624G, KL0624Y, KL0624B, KL0624W + 110 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
