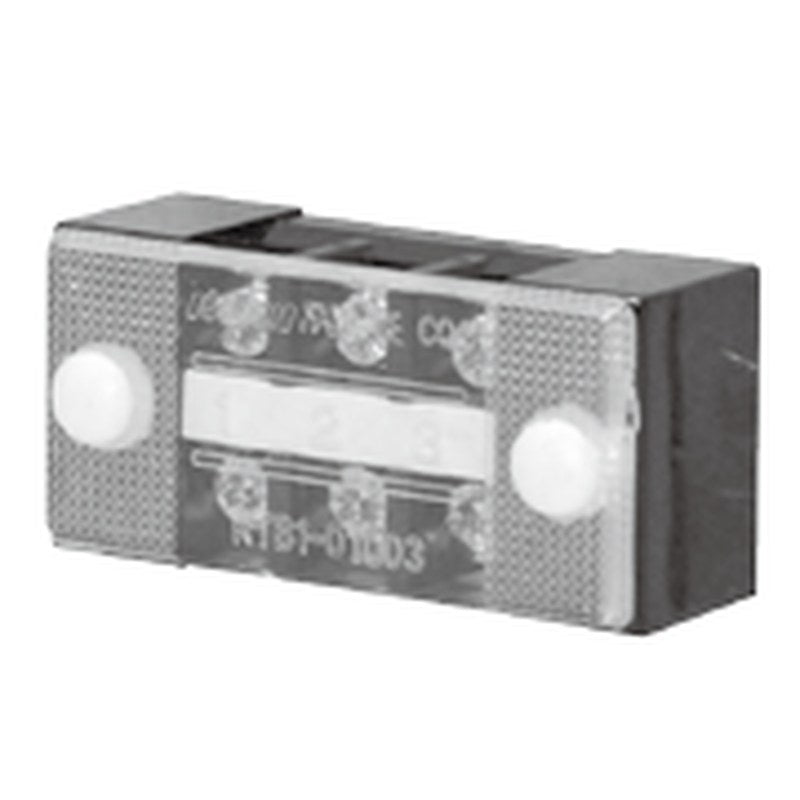

KACON KTB1 Power Distribution Blocks (10A-600A, 3-20 Poles)

Fixed-type power distribution terminal blocks with clear ABS cover and name plate, from 10A to 600A in 3 to 20 poles.

Key features

Rated 10A to 600A, max. 600VAC
3, 4, 6, 10, 12, 15 or 20 poles (10-30A); 3 or 4 poles (60-600A)
Flame-retardant PC or phenolic resin body, clear ABS cover
1st grade brass terminals, M3 to M12 terminal bolts
2,500VAC dielectric strength, 1,000Mohm insulation

Specifications

Rated voltage	Max. 600VAC
Insulation resistance	Min. 1,000Mohm
Dielectric strength	2,500VAC 1 min
Body	Flame-retardant PC / phenolic resin
Cover	ABS, clear
Terminal	1st grade brass
Name plate	PVC (pearl white)
Ambient	-20 to 60 C, 20-90% RH
Source	KACON KTB1 Series catalogue, p. 1-4

KTB1-01003		Rated current: 10A \| Poles: 3P \| Terminal bolt: M3.0
KTB1-01004		Rated current: 10A \| Poles: 4P \| Terminal bolt: M3.0
KTB1-01006		Rated current: 10A \| Poles: 6P \| Terminal bolt: M3.0
KTB1-01010		Rated current: 10A \| Poles: 10P \| Terminal bolt: M3.0
KTB1-02003		Rated current: 20A \| Poles: 3P \| Terminal bolt: M4.0
KTB1-02004		Rated current: 20A \| Poles: 4P \| Terminal bolt: M4.0
KTB1-02006		Rated current: 20A \| Poles: 6P \| Terminal bolt: M4.0
KTB1-02010		Rated current: 20A \| Poles: 10P \| Terminal bolt: M4.0
KTB1-02012		Rated current: 20A \| Poles: 12P \| Terminal bolt: M4.0
KTB1-02015		Rated current: 20A \| Poles: 15P \| Terminal bolt: M4.0
KTB1-02020		Rated current: 20A \| Poles: 20P \| Terminal bolt: M4.0
KTB1-03003		Rated current: 30A \| Poles: 3P \| Terminal bolt: M4.0
KTB1-03004		Rated current: 30A \| Poles: 4P \| Terminal bolt: M4.0
KTB1-03006		Rated current: 30A \| Poles: 6P \| Terminal bolt: M4.0
KTB1-03010		Rated current: 30A \| Poles: 10P \| Terminal bolt: M4.0
KTB1-06003		Rated current: 60A \| Poles: 3P \| Terminal bolt: M6.0
KTB1-06004		Rated current: 60A \| Poles: 4P \| Terminal bolt: M6.0
KTB1-10003		Rated current: 100A \| Poles: 3P \| Terminal bolt: M7.0
KTB1-10004		Rated current: 100A \| Poles: 4P \| Terminal bolt: M7.0
KTB1-15003		Rated current: 150A \| Poles: 3P \| Terminal bolt: M8.0
KTB1-15004		Rated current: 150A \| Poles: 4P \| Terminal bolt: M8.0
KTB1-20003		Rated current: 200A \| Poles: 3P \| Terminal bolt: M8.0
KTB1-20004		Rated current: 200A \| Poles: 4P \| Terminal bolt: M8.0
KTB1-30003		Rated current: 300A \| Poles: 3P \| Terminal bolt: M10.0
KTB1-30004		Rated current: 300A \| Poles: 4P \| Terminal bolt: M10.0
KTB1-40003		Rated current: 400A \| Poles: 3P \| Terminal bolt: M10.0
KTB1-40004		Rated current: 400A \| Poles: 4P \| Terminal bolt: M10.0
KTB1-50003		Rated current: 500A \| Poles: 3P \| Terminal bolt: M12.0
KTB1-50004		Rated current: 500A \| Poles: 4P \| Terminal bolt: M12.0
KTB1-60003		Rated current: 600A \| Poles: 3P \| Terminal bolt: M12.0
KTB1-60004		Rated current: 600A \| Poles: 4P \| Terminal bolt: M12.0
