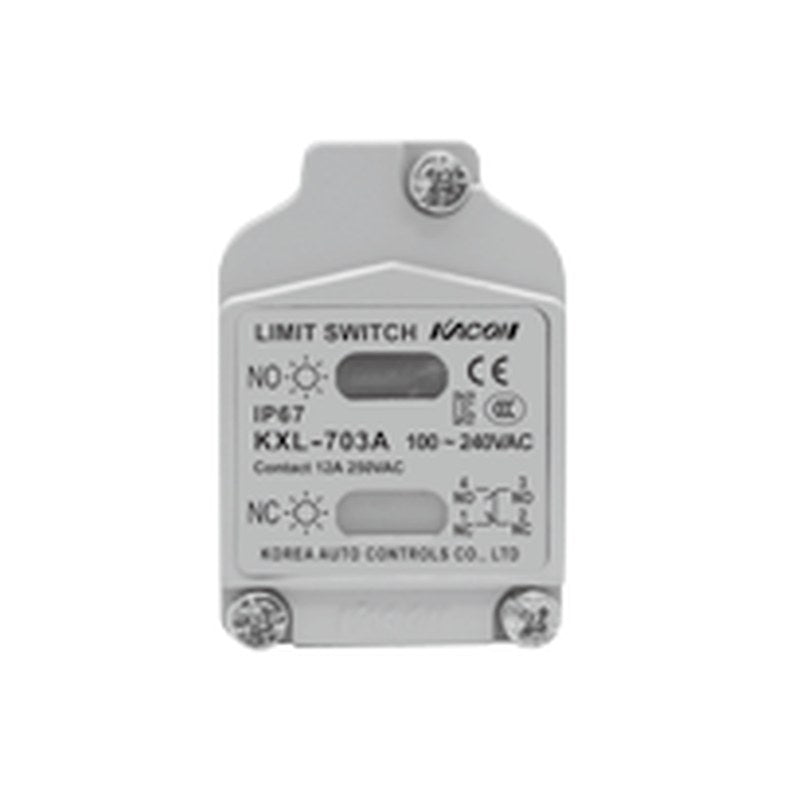

KACON KXL Series Die-Cast Limit Switches (with LED/Neon Options)

KACON KXL Series Die-Cast Limit Switches (with LED/Neon Options)

KACON KXL aluminium die-cast limit switches with 17 actuator heads, available plain or with LED or neon operation indicator.

Key features

  • 17 heads: plungers, roller/rod levers, Ø50 rollers, yoke and spring rod/wire
  • Optional operation indicator: D = LED 12-24VAC/DC, A = neon 100-240VAC
  • Head can be rotated to 4 directions; lever action selectable (both/left/right)
  • 1N/O+1N/C, 24K gold-plated contacts, 12A 250VAC resistive
  • IP67 aluminium die-cast housing; mechanical life 10,000,000

Specifications

Contacts 1N/O + 1N/C
Contact rating 12A 250VAC (resistive)
Contact material Ag alloy / 24K Au plated
Mechanical life Min. 10,000,000 operations
Electrical life Min. 1,000,000 operations
Degree of protection IP67
Housing Aluminium die-cast
Ambient temperature -10 to +80°C (no icing)
Weight Approx. 270g
Certification KC 60947-5-1
Source KACON Metal Cover KXL, ELN, E1, KLM Series catalogue, p. 1-10
KXL-301 Item: Limit switch | Actuator: Push plunger | Indicator lamp: None
KXL-301D Item: Limit switch | Actuator: Push plunger | Indicator lamp: LED 12-24VAC/DC
KXL-301A Item: Limit switch | Actuator: Push plunger | Indicator lamp: Neon 100-240VAC
KXL-302 Item: Limit switch | Actuator: Roller plunger | Indicator lamp: None
KXL-302D Item: Limit switch | Actuator: Roller plunger | Indicator lamp: LED 12-24VAC/DC
KXL-302A Item: Limit switch | Actuator: Roller plunger | Indicator lamp: Neon 100-240VAC
KXL-303 Item: Limit switch | Actuator: Ball plunger | Indicator lamp: None
KXL-303D Item: Limit switch | Actuator: Ball plunger | Indicator lamp: LED 12-24VAC/DC
KXL-303A Item: Limit switch | Actuator: Ball plunger | Indicator lamp: Neon 100-240VAC
KXL-702 Item: Limit switch | Actuator: Roller lever | Indicator lamp: None
KXL-702D Item: Limit switch | Actuator: Roller lever | Indicator lamp: LED 12-24VAC/DC
KXL-702A Item: Limit switch | Actuator: Roller lever | Indicator lamp: Neon 100-240VAC
KXL-703 Item: Limit switch | Actuator: Adjustable roller lever | Indicator lamp: None
KXL-703D Item: Limit switch | Actuator: Adjustable roller lever | Indicator lamp: LED 12-24VAC/DC
KXL-703A Item: Limit switch | Actuator: Adjustable roller lever | Indicator lamp: Neon 100-240VAC
KXL-713 Item: Limit switch | Actuator: Adjustable roller short lever | Indicator lamp: None
KXL-713D Item: Limit switch | Actuator: Adjustable roller short lever | Indicator lamp: LED 12-24VAC/DC
KXL-713A Item: Limit switch | Actuator: Adjustable roller short lever | Indicator lamp: Neon 100-240VAC
KXL-704 Item: Limit switch | Actuator: Adjustable rod lever | Indicator lamp: None
KXL-704D Item: Limit switch | Actuator: Adjustable rod lever | Indicator lamp: LED 12-24VAC/DC
KXL-704A Item: Limit switch | Actuator: Adjustable rod lever | Indicator lamp: Neon 100-240VAC
KXL-705 Item: Limit switch | Actuator: Ø50 roller lever, aluminium | Indicator lamp: None
KXL-705D Item: Limit switch | Actuator: Ø50 roller lever, aluminium | Indicator lamp: LED 12-24VAC/DC
KXL-705A Item: Limit switch | Actuator: Ø50 roller lever, aluminium | Indicator lamp: Neon 100-240VAC
KXL-725 Item: Limit switch | Actuator: Ø50 roller lever, rubber | Indicator lamp: None
KXL-725D Item: Limit switch | Actuator: Ø50 roller lever, rubber | Indicator lamp: LED 12-24VAC/DC
KXL-725A Item: Limit switch | Actuator: Ø50 roller lever, rubber | Indicator lamp: Neon 100-240VAC
KXL-706 Item: Limit switch | Actuator: Ø50 adj. roller lever, aluminium | Indicator lamp: None
KXL-706D Item: Limit switch | Actuator: Ø50 adj. roller lever, aluminium | Indicator lamp: LED 12-24VAC/DC
KXL-706A Item: Limit switch | Actuator: Ø50 adj. roller lever, aluminium | Indicator lamp: Neon 100-240VAC
KXL-726 Item: Limit switch | Actuator: Ø50 adj. roller lever, rubber | Indicator lamp: None
KXL-726D Item: Limit switch | Actuator: Ø50 adj. roller lever, rubber | Indicator lamp: LED 12-24VAC/DC
KXL-726A Item: Limit switch | Actuator: Ø50 adj. roller lever, rubber | Indicator lamp: Neon 100-240VAC
KXL-717 Item: Limit switch | Actuator: Yoke roller lever (type 717) | Indicator lamp: None
KXL-717D Item: Limit switch | Actuator: Yoke roller lever (type 717) | Indicator lamp: LED 12-24VAC/DC
KXL-717A Item: Limit switch | Actuator: Yoke roller lever (type 717) | Indicator lamp: Neon 100-240VAC
KXL-727 Item: Limit switch | Actuator: Yoke roller lever (type 727) | Indicator lamp: None
KXL-727D Item: Limit switch | Actuator: Yoke roller lever (type 727) | Indicator lamp: LED 12-24VAC/DC
KXL-727A Item: Limit switch | Actuator: Yoke roller lever (type 727) | Indicator lamp: Neon 100-240VAC
KXL-737 Item: Limit switch | Actuator: Yoke roller lever (type 737) | Indicator lamp: None
KXL-737D Item: Limit switch | Actuator: Yoke roller lever (type 737) | Indicator lamp: LED 12-24VAC/DC
KXL-737A Item: Limit switch | Actuator: Yoke roller lever (type 737) | Indicator lamp: Neon 100-240VAC
KXL-747 Item: Limit switch | Actuator: Yoke roller lever (type 747) | Indicator lamp: None
KXL-747D Item: Limit switch | Actuator: Yoke roller lever (type 747) | Indicator lamp: LED 12-24VAC/DC
KXL-747A Item: Limit switch | Actuator: Yoke roller lever (type 747) | Indicator lamp: Neon 100-240VAC
KXL-901 Item: Limit switch | Actuator: Spring rod | Indicator lamp: None
KXL-901D Item: Limit switch | Actuator: Spring rod | Indicator lamp: LED 12-24VAC/DC
KXL-901A Item: Limit switch | Actuator: Spring rod | Indicator lamp: Neon 100-240VAC
KXL-902 Item: Limit switch | Actuator: Spring wire | Indicator lamp: None
KXL-902D Item: Limit switch | Actuator: Spring wire | Indicator lamp: LED 12-24VAC/DC
KXL-902A Item: Limit switch | Actuator: Spring wire | Indicator lamp: Neon 100-240VAC
KXL-101 Item: Built-in switch (spare) | Actuator: - | Indicator lamp: -
KXL-102 Item: Indicator cover (spare) | Actuator: - | Indicator lamp: LED 12-24VAC/DC
KXL-103 Item: Indicator cover (spare) | Actuator: - | Indicator lamp: Neon 100-240VAC
Limit SwitchesKACON
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KXL Series Die-Cast Limit Switches (with LED/Neon Options)

Brand KACON·Limit Switches

Available part numbers (54)

KXL-301, KXL-301D, KXL-301A, KXL-302, KXL-302D, KXL-302A, KXL-303, KXL-303D, KXL-303A, KXL-702 + 44 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
