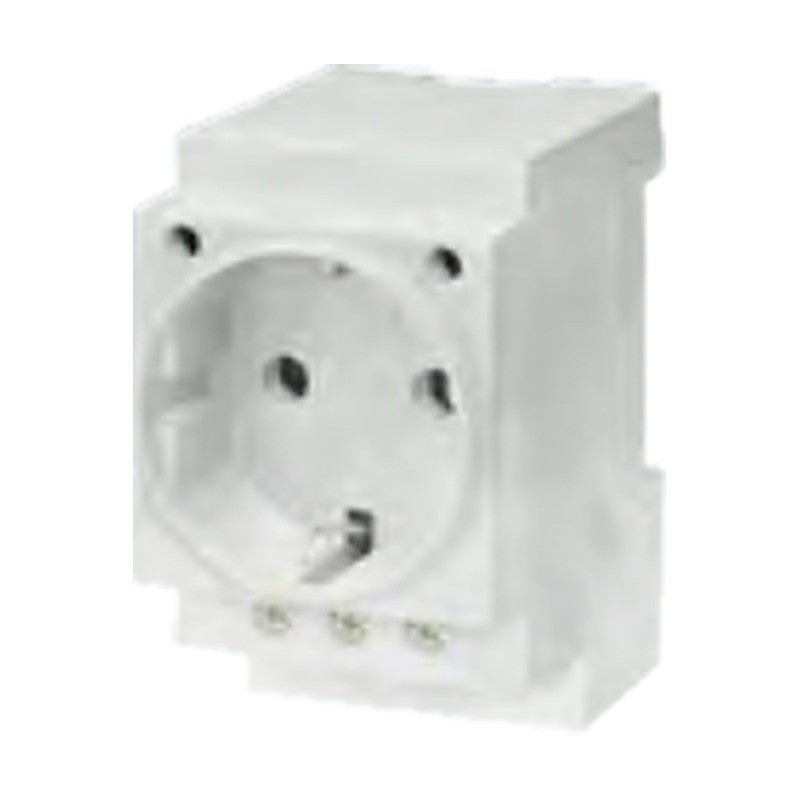

Siemens 5TE6 Socket Outlets for Modular Installation (SCHUKO, CEE, UL)

Siemens 5TE6 Socket Outlets for Modular Installation (SCHUKO, CEE, UL)

Siemens 5TE6 socket outlets for modular installation in distribution boards in SCHUKO, CEE 7 sheet V, CEI 23-50 and UL 498 versions.

Key features

  • SCHUKO socket outlets to DIN VDE 0620-1, 230 V AC 16 A, also in yellow RAL 1018
  • Versions to CEE 7 standard sheet V, CEI 23-50 and UL 498 (125 V AC, 15 A)
  • Retrofittable 5TE9120 hinged cover (not usable in 55 mm deep boards)
  • Mounting width 2.5 MW, screw terminals 1.5-6 mm2

Specifications

Series 5TE6
Mounting width 2.5 MW
Terminals Screw (PZ1)
Degree of protection IP20 with connected conductors
Ambient temperature -10 to +55 °C
Mounting DIN rail
Source Siemens Catalog LV 10 · 2026, p. 896-897
5TE6800 Version: SCHUKO, DIN VDE 0620-1 | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6801 Version: SCHUKO, DIN VDE 0620-1 | Rating: 230 V AC, 16 A | Hinged cover: With
5TE6810 Version: SCHUKO, yellow RAL 1018 | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6803 Version: CEE 7 sheet V, grounding pin | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6802 Version: CEI 23-50 | Rating: 230 V AC, 16 A | Hinged cover: With
5TE6804 Version: UL 498 | Rating: 125 V AC, 15 A | Hinged cover: Without (retrofittable)
5TE9120 Version: Accessory: hinged cover | Rating: For SCHUKO, CEE 7 V, UL 498 | Hinged cover: 2.5 MW
AccessoriesSiemens
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 5TE6 Socket Outlets for Modular Installation (SCHUKO, CEE, UL)

Brand Siemens·Accessories

Available part numbers (7)

5TE6800, 5TE6801, 5TE6810, 5TE6803, 5TE6802, 5TE6804, 5TE9120

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TE6800Version: SCHUKO, DIN VDE 0620-1 | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6801Version: SCHUKO, DIN VDE 0620-1 | Rating: 230 V AC, 16 A | Hinged cover: With
5TE6810Version: SCHUKO, yellow RAL 1018 | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6803Version: CEE 7 sheet V, grounding pin | Rating: 230 V AC, 16 A | Hinged cover: Without (retrofittable)
5TE6802Version: CEI 23-50 | Rating: 230 V AC, 16 A | Hinged cover: With
5TE6804Version: UL 498 | Rating: 125 V AC, 15 A | Hinged cover: Without (retrofittable)
5TE9120Version: Accessory: hinged cover | Rating: For SCHUKO, CEE 7 V, UL 498 | Hinged cover: 2.5 MW
