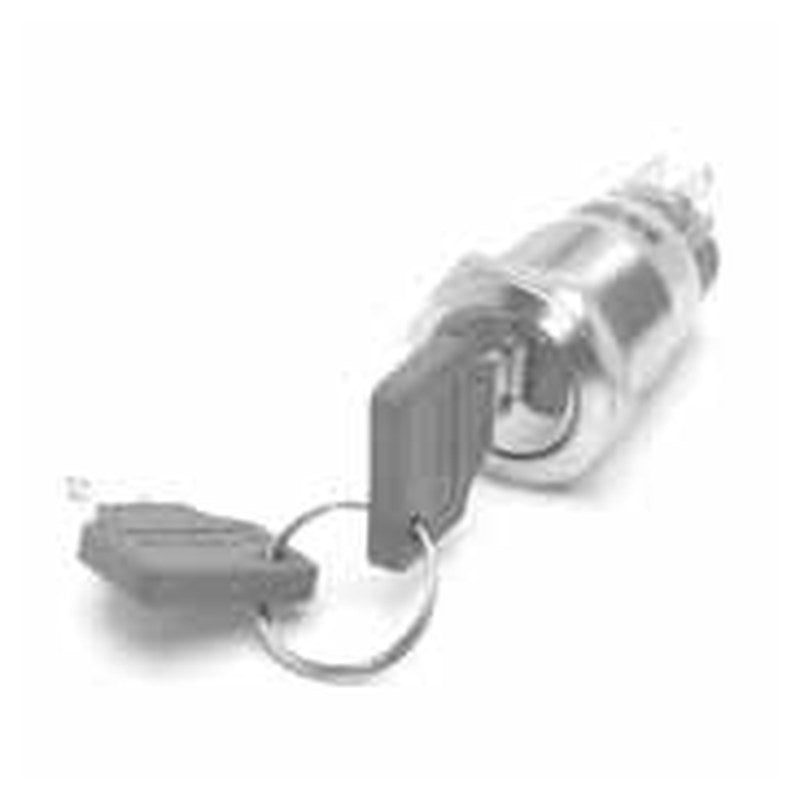

KACON T Series Metal Key Selector Switches (Ø16, Ø19, Ø22)

Full-metal 2- and 3-position key-operated selector switches of the KACON T Series.

Key features

2-position (90°) and 3-position (45°/45°) key operation
1C or 2C contacts
Mounting sizes Ø16, Ø19 and Ø22
Full-metal bezel
IP40 front protection

Specifications

Housing	Full metal (stainless) bezel
Ambient temperature	-25 to +55°C
Contact rating	Max. 250VAC / 110VDC, 3A (5A T22 1C)
Terminal	Quick-connect 2.8mm (solderable)
Illumination	None
Degree of protection	IP40
Source	KACON T Series Full Metal Control Switch catalogue, p. 6-13

T16-611P		Size: Ø16 \| Positions: 2-position \| Contacts: 1C (1NO+1NC)
T16-612P		Size: Ø16 \| Positions: 2-position \| Contacts: 2C (2NO+2NC)
T16-712P		Size: Ø16 \| Positions: 3-position \| Contacts: 2C (2NO+2NC)
T19-611P		Size: Ø19 \| Positions: 2-position \| Contacts: 1C (1NO+1NC)
T19-612P		Size: Ø19 \| Positions: 2-position \| Contacts: 2C (2NO+2NC)
T19-712P		Size: Ø19 \| Positions: 3-position \| Contacts: 2C (2NO+2NC)
T22-611P		Size: Ø22 \| Positions: 2-position \| Contacts: 1C (1NO+1NC)
T22-612P		Size: Ø22 \| Positions: 2-position \| Contacts: 2C (2NO+2NC)
T22-712P		Size: Ø22 \| Positions: 3-position \| Contacts: 2C (2NO+2NC)

Selector SwitchesKACON

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON T Series Metal Key Selector Switches (Ø16, Ø19, Ø22)

Brand KACON·Selector Switches

Available part numbers (9)

T16-611P, T16-612P, T16-712P, T19-611P, T19-612P, T19-712P, T22-611P, T22-612P, T22-712P

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
