KACON T Series Protective Covers & Wired Connectors

KACON T Series Protective Covers & Wired Connectors

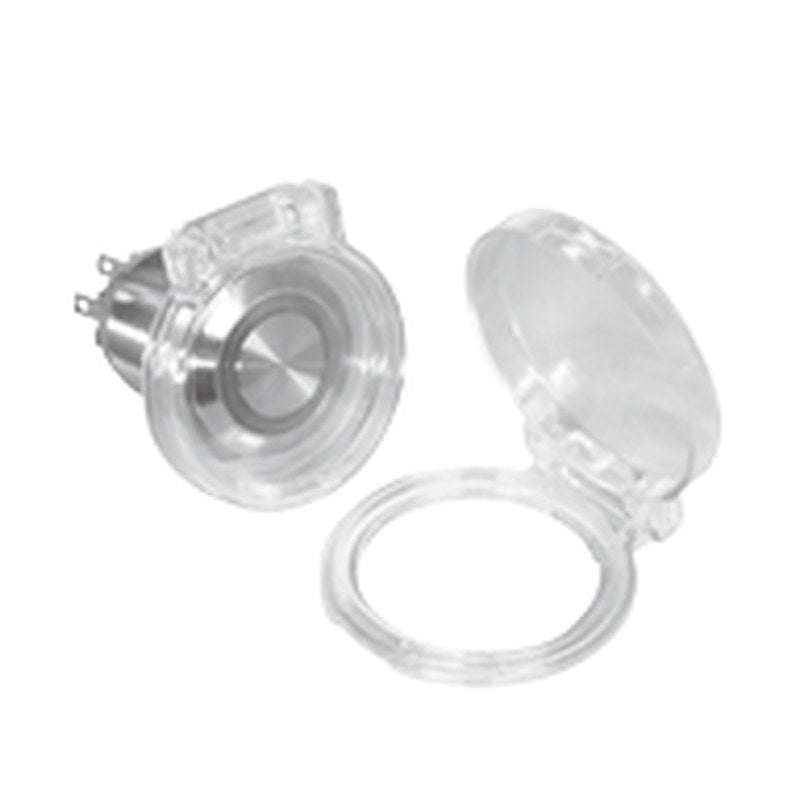

Protective covers and pre-wired plug-in connectors for KACON T Series metal control switches.

Key features

  • Clear hinged protective covers for Ø16 to Ø30 (T25-C/T30-C also fit K25F/K30F)
  • Covers fit pilot lights and push buttons (PL / PB / PBL)
  • Plug-in connectors with 22AWG 150mm leads
  • Connector variants for pilot light, 1C and 2C, illuminated and non-illuminated
  • Wire colours: black +, white -, blue COM, green NO, red NC

Specifications

Series T Series
Connector wire 22AWG, 150mm
Connector polarity Left (+) standard
Wire colours Black +, white -, blue COM, green NO, red NC
Cover Clear hinged, for PL / PB / PBL only
Source KACON T Series Full Metal Control Switch catalogue, p. 19-39
T16-C Type: Protective cover, clear | Size: Ø16 | Fits: Pilot light / push button
T19-C Type: Protective cover, clear | Size: Ø19 | Fits: Pilot light / push button
T22-C Type: Protective cover, clear | Size: Ø22 | Fits: Pilot light / push button
T25-C Type: Protective cover, clear | Size: Ø25 | Fits: Pilot light / push button
T30-C Type: Protective cover, clear | Size: Ø30 | Fits: Pilot light / push button
T16-S07 Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Pilot light
T16-S11 Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Non-illuminated 1C
T16-S21 Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Non-illuminated 2C
T16-S17 Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Illuminated 1C
T16-S27 Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Illuminated 2C
T19-S07 Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Pilot light
T19-S11 Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Non-illuminated 1C PB
T19-S17 Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Illuminated 1C PB
T19-D11 Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Non-illuminated 1C SS/key/E-stop
T19-D21 Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Non-illuminated 2C
T19-D17 Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Illuminated 1C selector
T19-D27 Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Illuminated 2C
T22-S07 Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Pilot light
T22-S11 Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Non-illuminated 1C PB
T22-S17 Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Illuminated 1C PB
T25-D07 Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Pilot light
T25-D11 Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Non-illuminated 1C
T25-D21 Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Non-illuminated 2C
T25-D17 Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Illuminated 1C
T25-D27 Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Illuminated 2C
Switch AccessoriesKACON
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON T Series Protective Covers & Wired Connectors

Brand KACON·Switch Accessories

Available part numbers (25)

T16-C, T19-C, T22-C, T25-C, T30-C, T16-S07, T16-S11, T16-S21, T16-S17, T16-S27 + 15 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T16-CType: Protective cover, clear | Size: Ø16 | Fits: Pilot light / push button
T19-CType: Protective cover, clear | Size: Ø19 | Fits: Pilot light / push button
T22-CType: Protective cover, clear | Size: Ø22 | Fits: Pilot light / push button
T25-CType: Protective cover, clear | Size: Ø25 | Fits: Pilot light / push button
T30-CType: Protective cover, clear | Size: Ø30 | Fits: Pilot light / push button
T16-S07Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Pilot light
T16-S11Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Non-illuminated 1C
T16-S21Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Non-illuminated 2C
T16-S17Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Illuminated 1C
T16-S27Type: Wired connector, 22AWG 150mm | Size: Ø16 | Fits: Illuminated 2C
T19-S07Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Pilot light
T19-S11Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Non-illuminated 1C PB
T19-S17Type: Wired connector, 22AWG 150mm | Size: Ø19 | Fits: Illuminated 1C PB
T19-D11Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Non-illuminated 1C SS/key/E-stop
T19-D21Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Non-illuminated 2C
T19-D17Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Illuminated 1C selector
T19-D27Type: Wired connector, 22AWG 150mm | Size: Ø19/Ø22 | Fits: Illuminated 2C
T22-S07Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Pilot light
T22-S11Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Non-illuminated 1C PB
T22-S17Type: Wired connector, 22AWG 150mm | Size: Ø22 | Fits: Illuminated 1C PB
T25-D07Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Pilot light
T25-D11Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Non-illuminated 1C
T25-D21Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Non-illuminated 2C
T25-D17Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Illuminated 1C
T25-D27Type: Wired connector, 22AWG 150mm | Size: Ø25/Ø30 | Fits: Illuminated 2C
